For MV-CL022-40GC device, follow steps below to operate:
Steps
1. Click Shading Correction, and set PRNUC target related parameters according to actual
demands.
● Select Off as PRNUC Target Enable if you want to use the device's auto correction
standard. At this time, the device compares and corrects the average R/G/B component
value of each column with the average R/G/B component value of the entire image.
● Select On as PRNUC Target Enable if you want to manually correct, and set PRNUC
Target R, PRNUC Target G, and PRNUC Target B according to actual demands. At this
time, the device compares and corrects the average R/G/B component value of each
column with the configured R/G/B value.
2. Click Execute in Activate Shading.
3. Enable NUC Enable, and PRNUC Enable will be enabled automatically.
For other device devices, follow steps below to operate:
Steps
1. Click Shading Correction, select PRNUC User Selector, and the device starts to acquire
images.
2. Set PRNUC target related parameters according to actual demands.
GigE Line Scan Camera User Manual

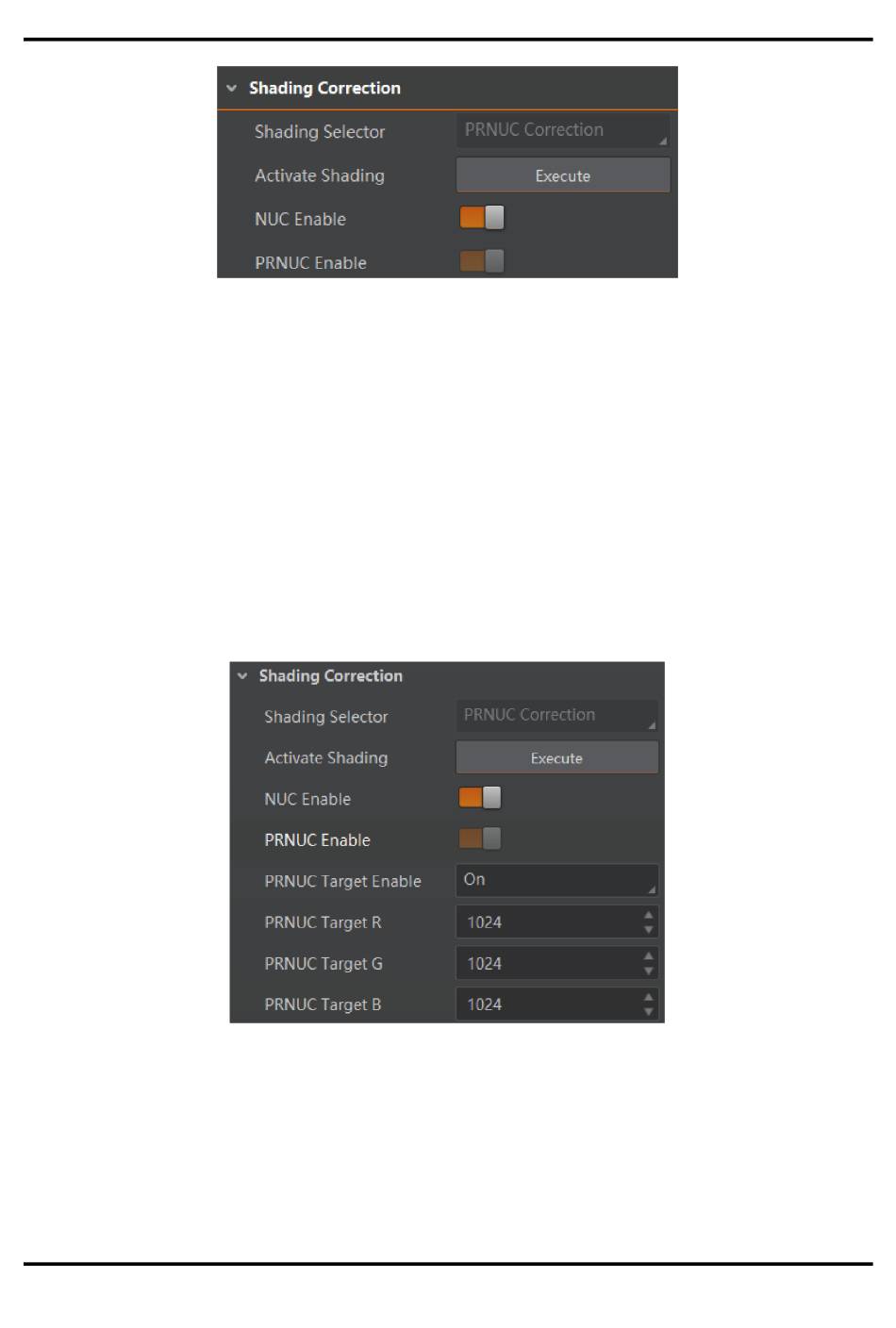

Figure 10-44 Set Shading Correction
Figure 10-45 Set Shading Correction
