Set Trigger Activation in Line Trigger
In the line trigger mode, the trigger activation is related with Exposure Mode.
● When Timed is selected as Exposure Mode, you can select Rising Edge or Falling Edge
as Trigger Activation, and Exposure Auto and Exposure Time determine the exposure
time.
● When Trigger Width is selected as Exposure Mode, you can select Level Low or Level
High as Trigger Activation, and exposure time is determined by the duration of the level
signal only.
Note
The trigger width function may differ by device models.
Set Trigger Delay
The trigger delay function allows the device to add a delay between the receipt of trigger
signal and the moment the trigger becomes active. Go to Acquisition Control → Trigger
Delay, and enter Trigger Delay, and the unit is μs.
GigE Line Scan Camera User Manual

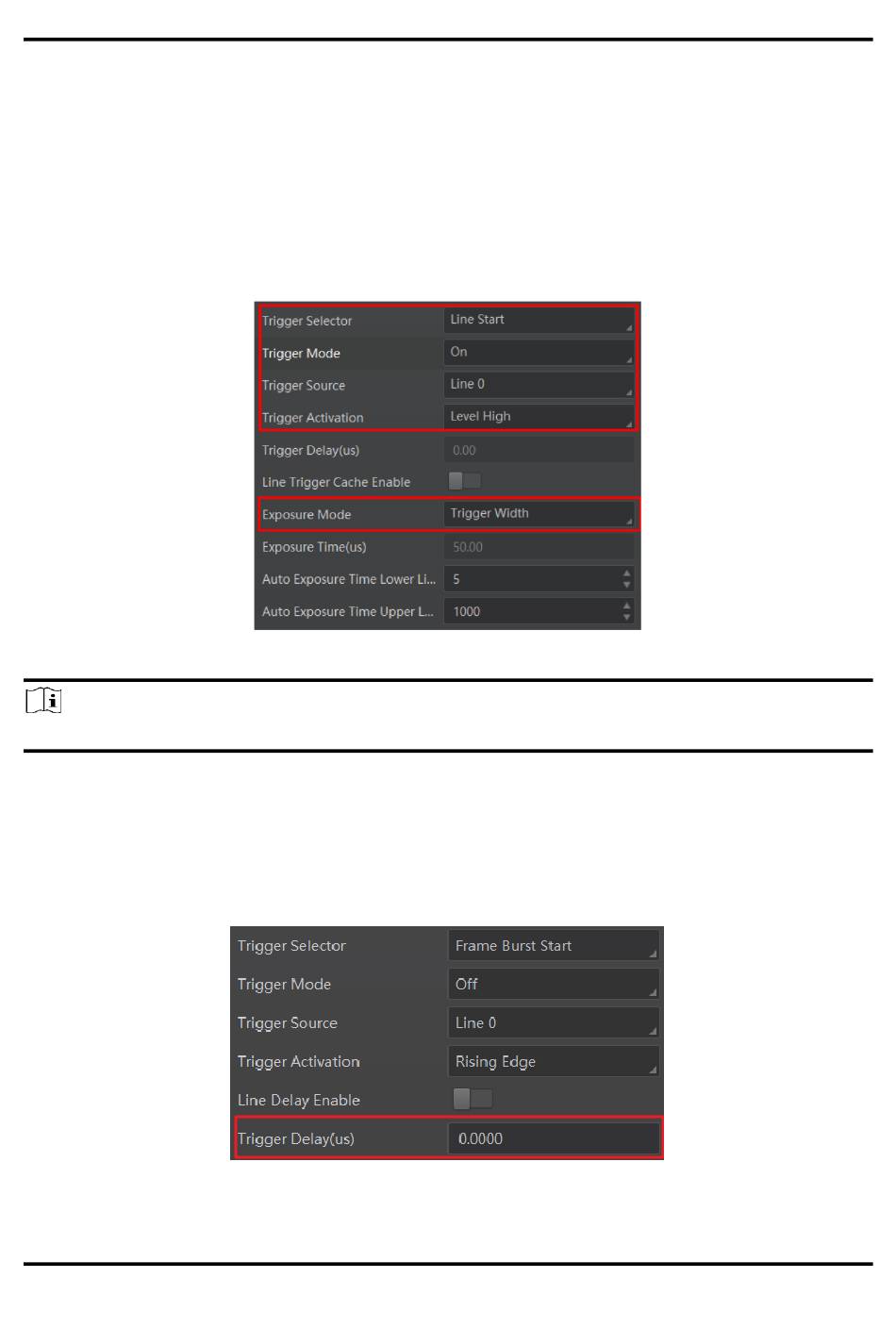

Figure 7-22 Set Trigger Activation in Line Trigger
Figure 7-23 Set Trigger Delay under Frame Trigger
