GigE Line Scan Camera User Manual

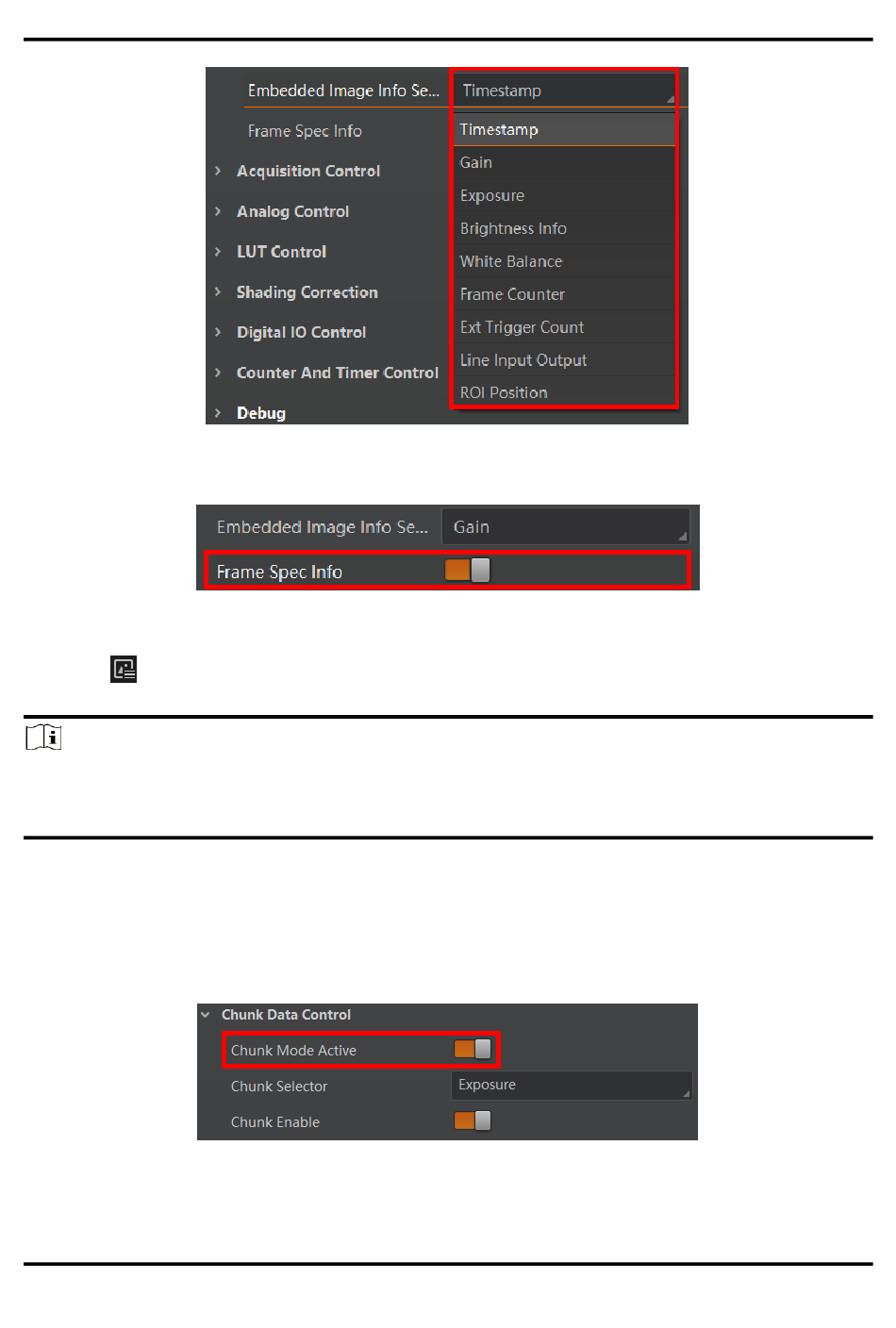

Figure 11-2 Select Embedded Image Info Selector
2. Enable Frame Spec Info to add watermark into images.
Figure 11-3 Enable Frame Spec Info
3. (Optional) Repeat steps above to add multiple watermarks.
4. Click on the control toolbar of the client software to view specific watermark
information.
Note
The watermark is embedded into the starting position of the first line of image data. If the
ROI is small and the first line of image data is insufficient to embed information, the
information will be embedded into the second line of image data.
Chunk Settings
Steps
1. Go to Chunk Data Control → Chunk Mode Active, and Chunk Mode Active.
Figure 11-4 Enable Chunk Mode Active
