Hioki IM3523 Communication Instruction Manual
  1. Manuals
  2. Brands
  3. Hioki Manuals
  4. Measuring Instruments
  5. IM3523
  6. Communication instruction manual

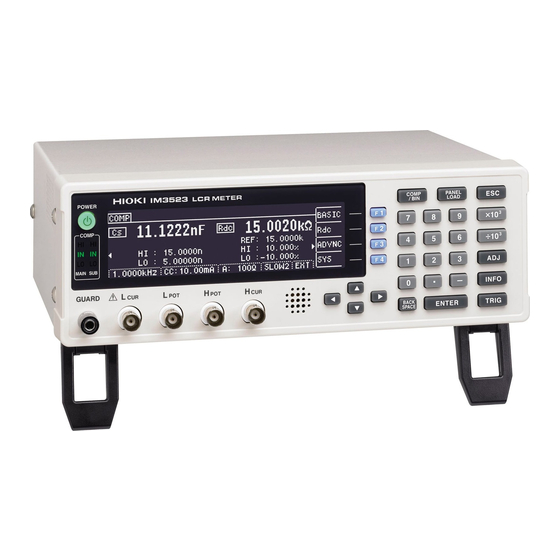

Hioki IM3523 Communication Instruction Manual
