Chapter 2: Jumpers and Connectors

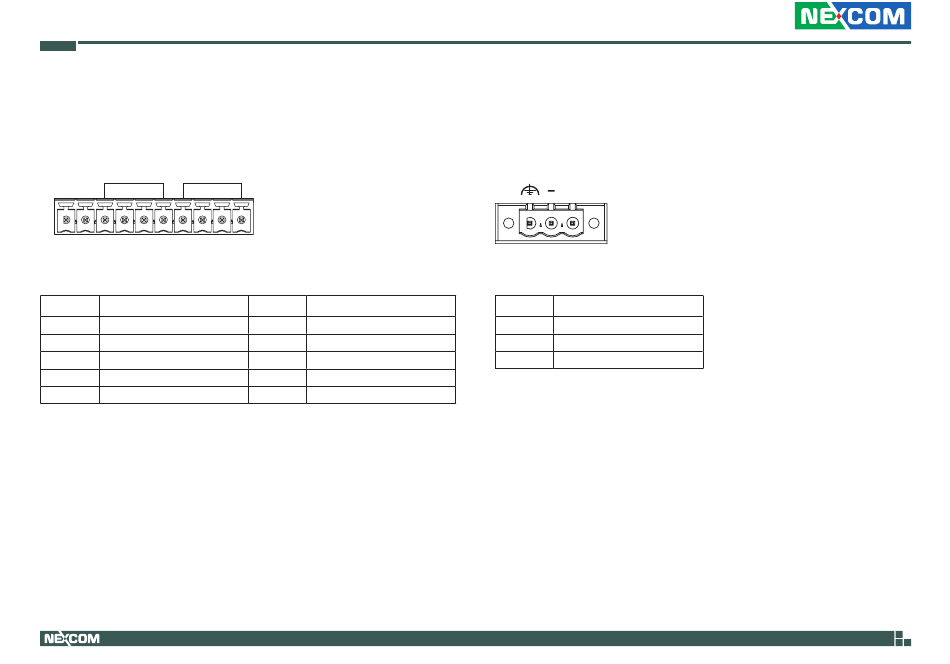

GPIO Connector

Connector type: 1x10 10-pin switch
Connector location: CN1
GPI GPO
1
Pin Definition
1 VCC5
3 ICH_GPI0_IN
5 ICH_GPI2_IN
7 ICH_GPO0_OUT
9 ICH_GPO2_OUT
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
10
Pin Definition
2 GND
4 ICH_GPI1_IN
6 ICH_GPI3_IN
8 ICH_GPO1_OUT
10 ICH_GPO3_OUT

24V DC Power Input

Connector type: 1x3 3-pin terminal block
Connector location: PW1
+
3 1
Pin Definition
1 VIN_1
2 VIN_VSS
3 R_GND
