5.2 Measure the AC Power
With a digital multimeter, check the AC power supplied at the re-
ceptacle at the installation site. There are two types of recepta-
cles: one for Europe and the other for other parts of the world.

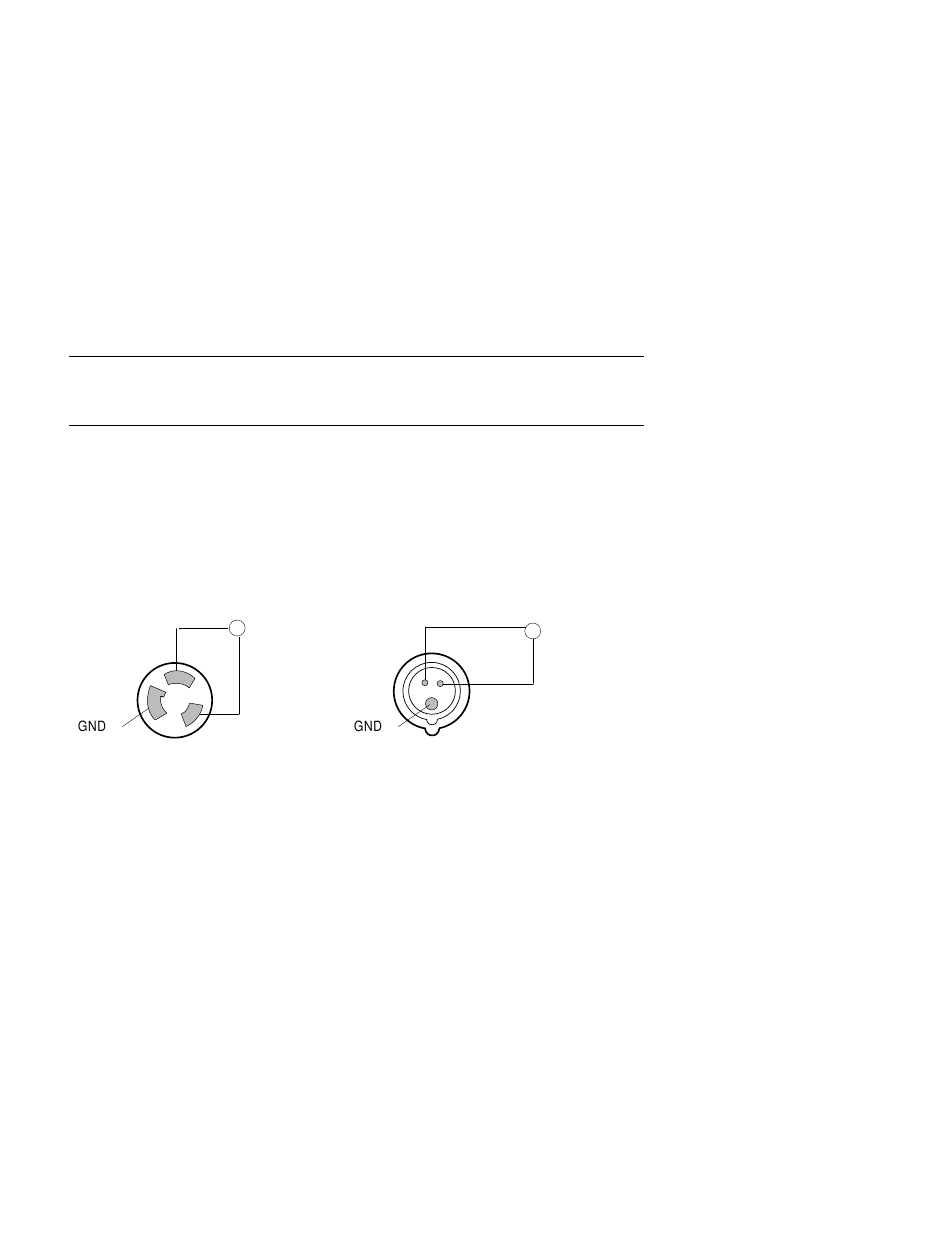

Figure 5-2
Measuring System Power
202/208 V NOMINAL (30A)
U.S. & Japanese Version
NEMA L6-30R (50 - 60Hz)
V
X
Y
5-4 Powering Up the System
230 V NOMINAL (32 A)
IEC 309 Type (50 - 60Hz)
PHASE 1
NEUTRAL
BX-0441A-94
