WARNING:
Before beginning this procedure, make sure the system is
powered off.
1.
If there are two expander cabinets, plug the jack splitter (PN 12-
44937-01) into the system cabinet control panel jack marked Ex-
pander. See Figure 3-7.
2.
For the right expander cabinet, plug the power control cable (PN 17-
03511-04) into the jack splitter or the jack marked Expander on the
system control panel in the system cabinet.
3.
Route the cable according to Figure 3-6 and plug the other end of the
cable into the jack marked Expander on the CCL panel in the right ex-
pander cabinet.
4.
For the left expander cabinet, plug the second power control cable (PN
17-03511-04) into the jack splitter in the system cabinet.
5.
Route the cable according to Figure 3-6 and plug the other end of the
cable into the jack marked Expander on the CCL panel in the left ex-
pander cabinet.
6.
Tie wrap the cables in place.

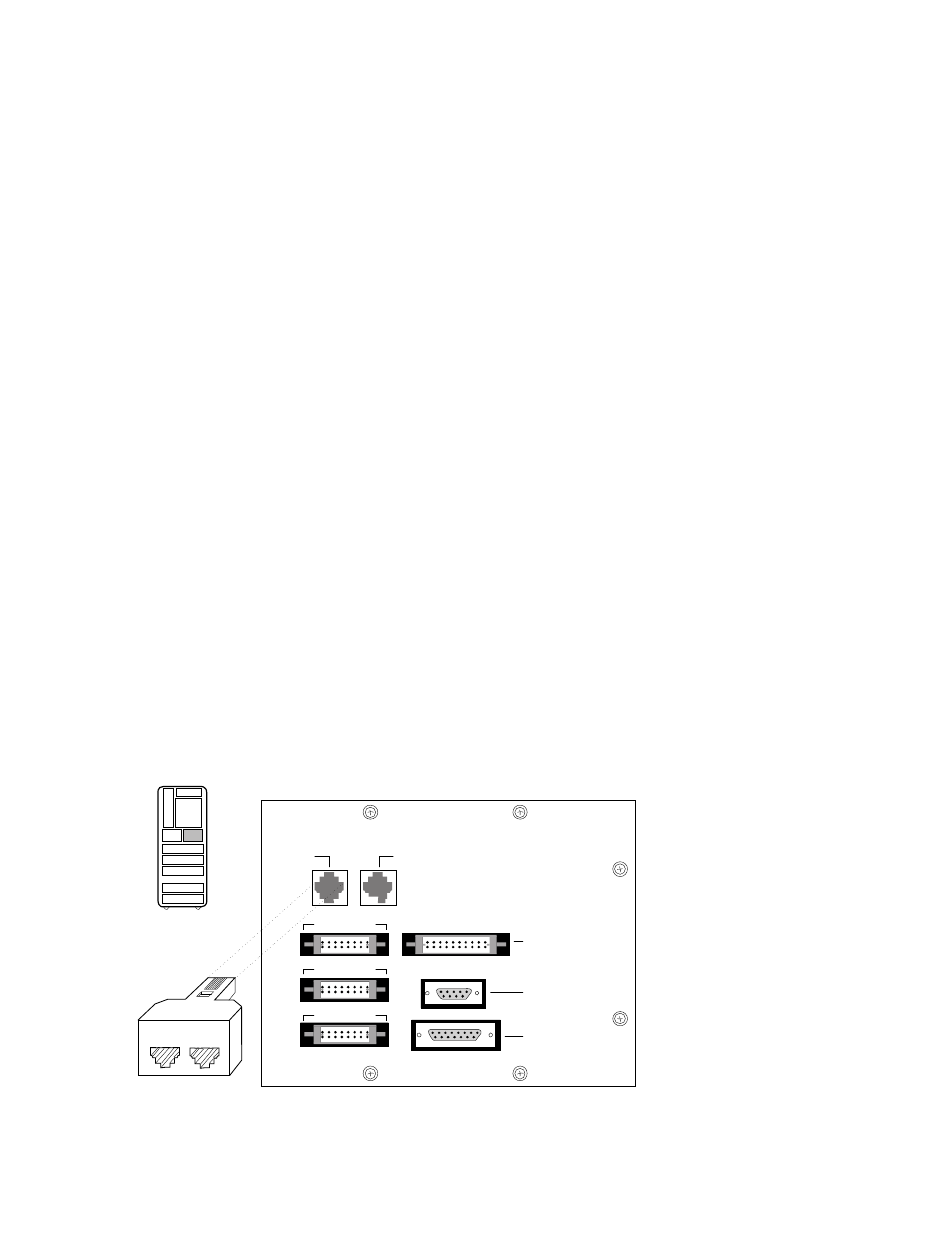

Figure 3-7
Control Panel and Jack Splitter
Expander
Front
Jack Splitter
Console
PowerComm 3
PowerComm 2
PowerComm 1
Installing an Expander Cabinet 3-11
External
Enable (XMI/FBUS)
External
UPS Power
External
Power Enable
BX-0446A-95
