3.5 Connect the Power Control Cable
Connect the power control cable from the control panel in the sys-
tem cabinet to the CCL panel in the expander cabinet. If there are
two expander cabinets, install the jack splitter into the control
panel in the system cabinet and connect both power control cables
to the splitter. Route each cable from the control panel in the sys-
tem cabinet to the CCL panel in each expander cabinet.

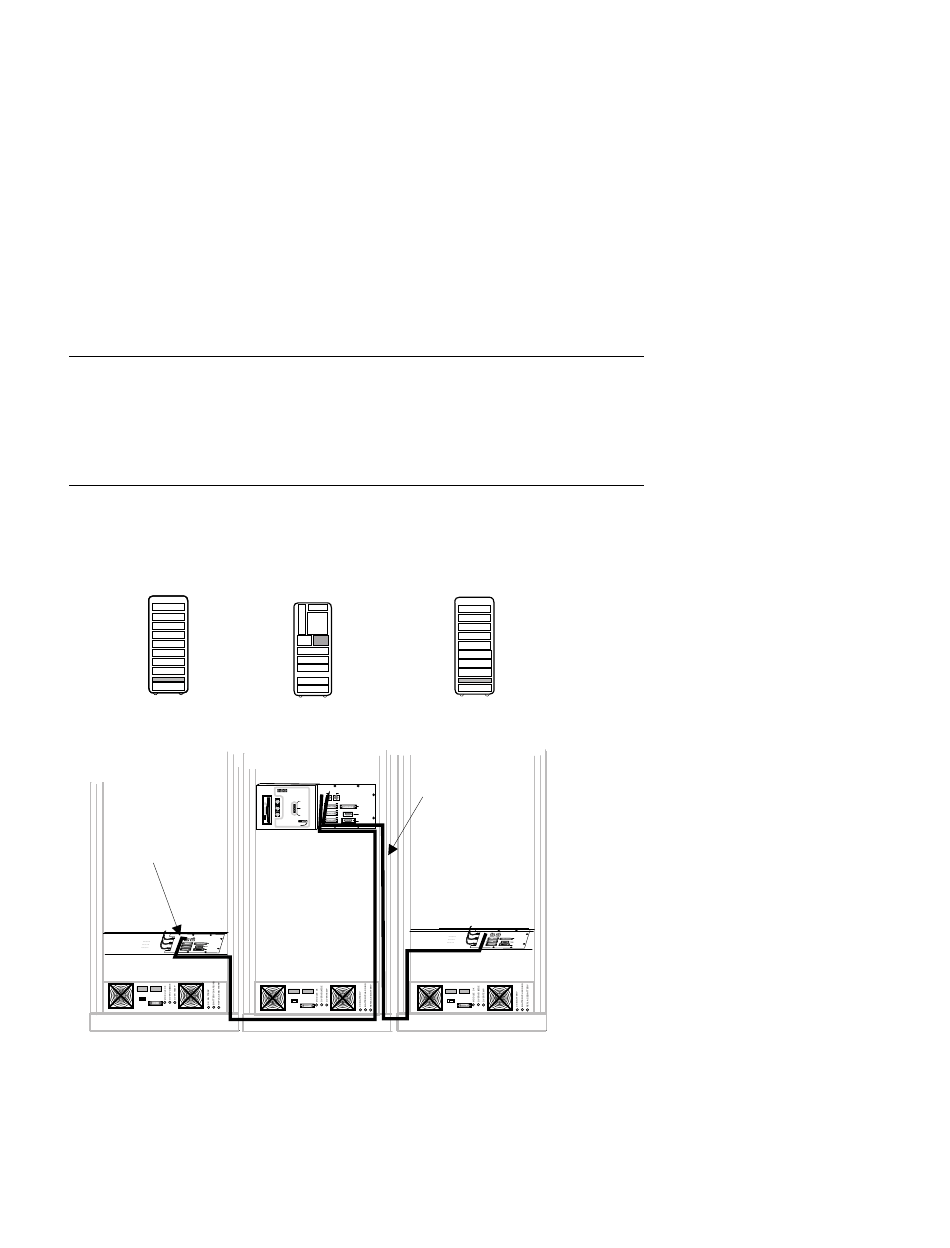

Figure 3-6
Power Control Cable Installation
Front
Front
Cable
to Second
Expander
Expander
Console
External
External
External
+
48VDC-
+
48VDC-
9
SIGNALS
1
CURRENT
SHARE
10
2
3-10 Installing an Expander Cabinet
Front
Front
Cable
to First
SERVER
Expander
Console
2100
On/Off
Expander
Enable
PowerComm3
External
Secure
Run
PowerComm2
External
Restart
Fault
PowerComm1
Enable (XMI/FBUS)
External
TM
UPS Power
PowerEnable
Expander
+
48VDC-
+
48VDC-
+
48VDC-
9
SIGNALS
1
CURRENT
CURRENT
SHARE
SHARE
10
2
Console
External
External
External
+
48VDC-
9
SIGNALS
1
10
2
BX-0450B-94
