4.5 Connect FDDI Cables (Optional)

If the system includes an FDDI option, connect the FDDI cable to
the KFTIA or to the DEFPA option in the PCI I/O subsystem and to
the FDDI transceiver.

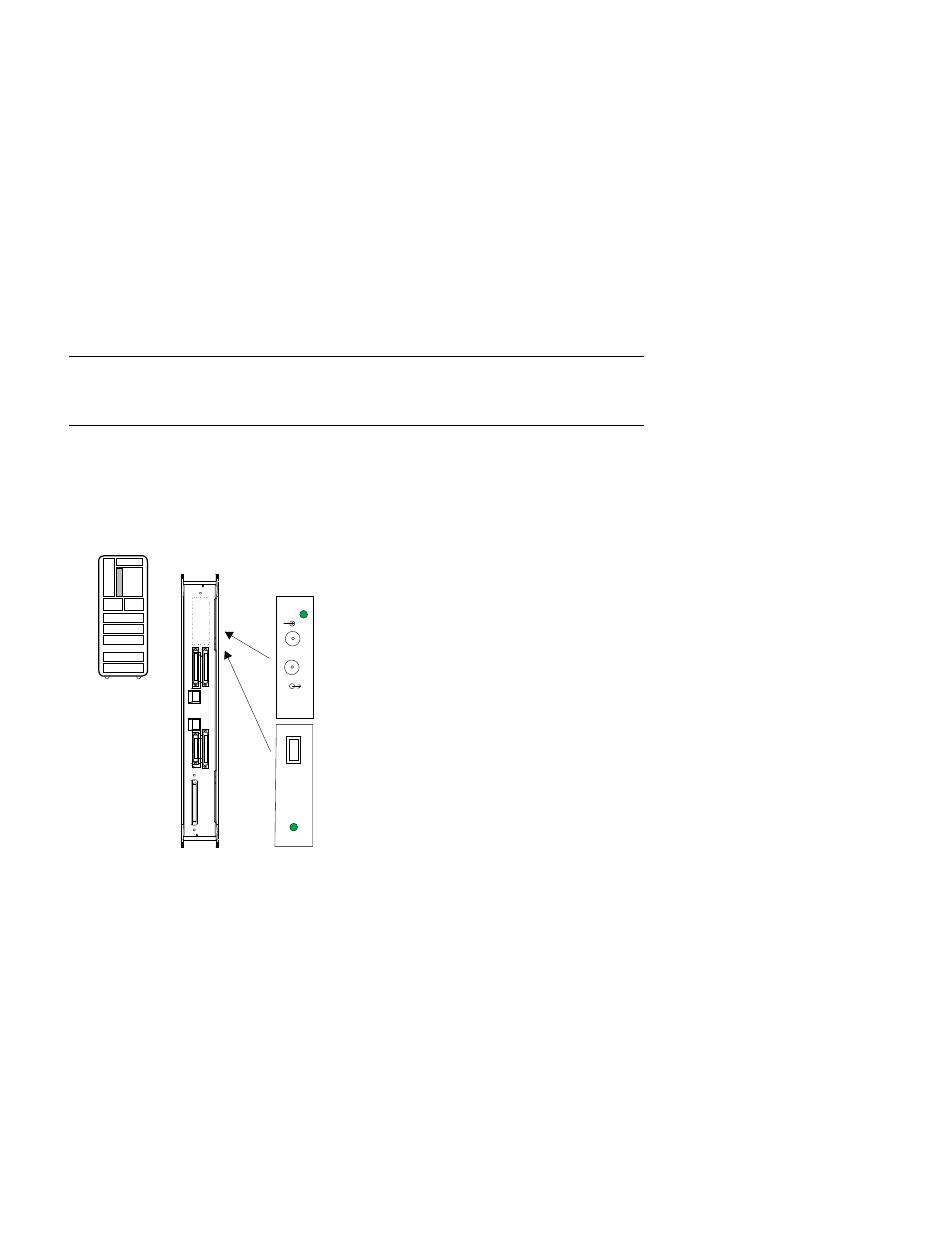

Figure 4-8

FDDI Connectors on KFTIA

Front
FDDI options are available by a daughter card (DEFPZ-XX) on a KFTIA or
by a PCI adapter (DEFPA-XX). Table 4-2 lists the FDDI options and the
cables required. Figure 4-8 shows connectors for the DEFPZ variants, and
Figure 4-9 shows connectors for the DEFPA variants.
4-10 Making Console, SCSI, Ethernet, FDDI, and DSSI Connections
FDDI Option
DEFPZ
-AA Variant
PHY
Multimode
Fiber
FDDI
-UA Variant
Twisted-Pair
BX-0447A-94
