The BN21H-0E cable is used to connect the CD-ROM drive to the single-
ended port on the KFTIA. Figure 4-3 shows the KFTIA and the CD-ROM
connector locations. Check to see that the BN21H-0E cable is installed
properly.
If there is no KFTIA, support for the CD-ROM comes from the KZPAA in
the PCI. Figure 4-4 shows the KZPAA connector on the PCI I/O subsys-
tem. If need be, connect the BN21H-02 cable to the KZPAA and the CD-
ROM connector on the storage drawer.

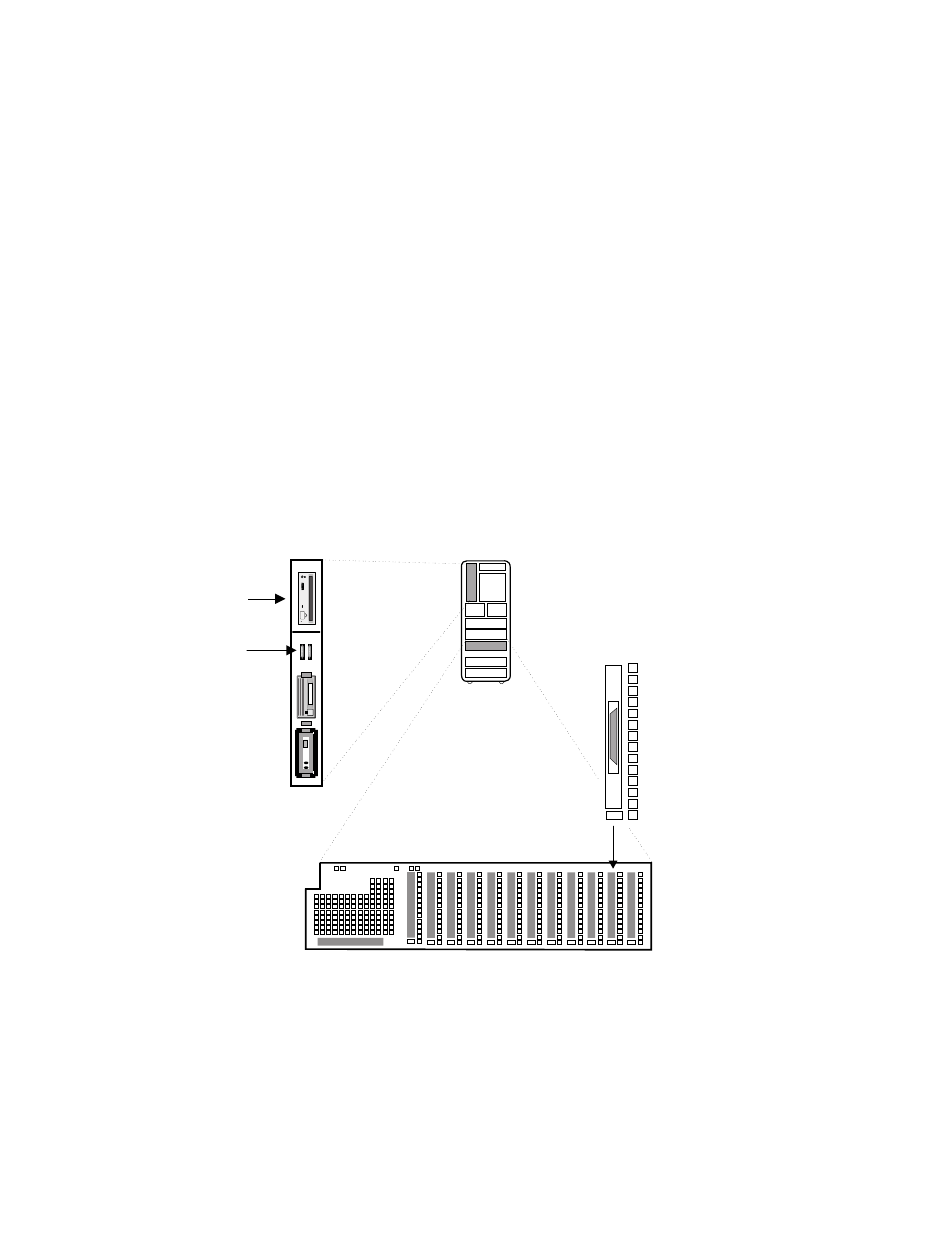

Figure 4-4
KZPAA as the Console Load Device Support
Console Load
Device
SCSI CD-ROM
Connector
Making Console, SCSI, Ethernet, FDDI, and DSSI Connections 4-5
Storage
Drawer
Front
PCI
KZPAA
BX-0447D-94
