The KFESB is an EISA to DSSI adapter. Required with this option is the
KFE70 and its attendant hardware.
1.
If the KFESB is not cabled, attach one end of the DSSI cable (BC29R-
xx or BC29S-xx) to the KFESB connector in the PCI/EISA I/O subsys-
tem (see Figure 4-10). Identify the slot location using the show de-
vice command. If necessary, install a terminator to terminate this
end of the DSSI cable.
2.
To route the DSSI cable, follow the instructions for SCSI cable routing
described in Section 4.3.
3.
Attach the end of the DSSI cable to the connector on the HSD05 or
HSD30. (The HSD05 and HSD30 are array controllers that allow con-
nectivity between the DSSI bus and the StorageWorks family of prod-
ucts (SCSI).) Figure 4-11 shows the placement of the HSDxx and its
connector.
4.
If necessary, configure the DSSI bus. (See accompanying KFESB
documentation.)

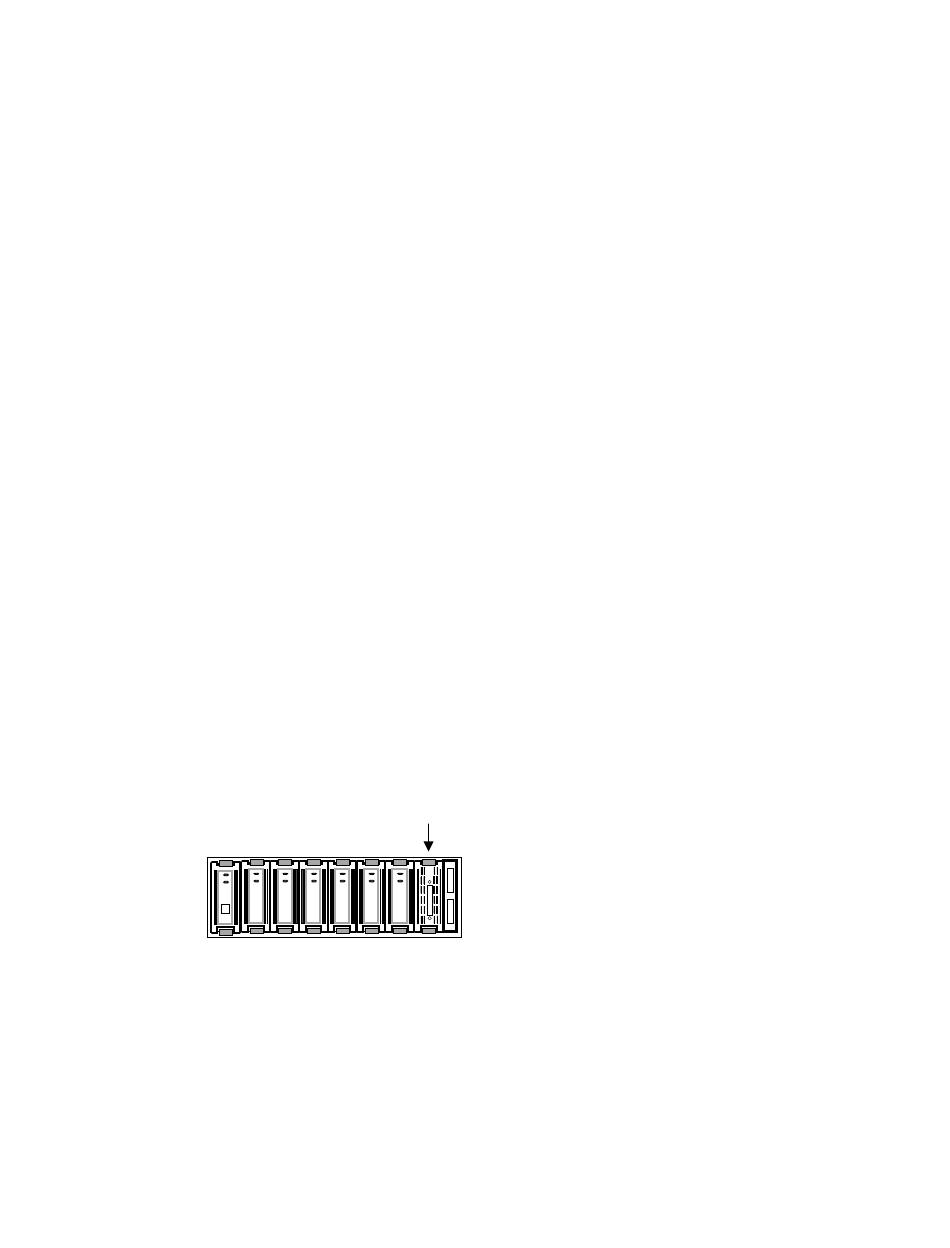

Figure 4-11 StorageWorks Shelf with DSSI Controller
DSSI - SCSI
StorageWorks
Shelf
PS 6
5
4
Making Console, SCSI, Ethernet, FDDI, and DSSI Connections 4-13
HSD05 or
HSD30
3
2
1
BX-0451C-95
