SOFTENER INSTALLATION AND USER GUIDE

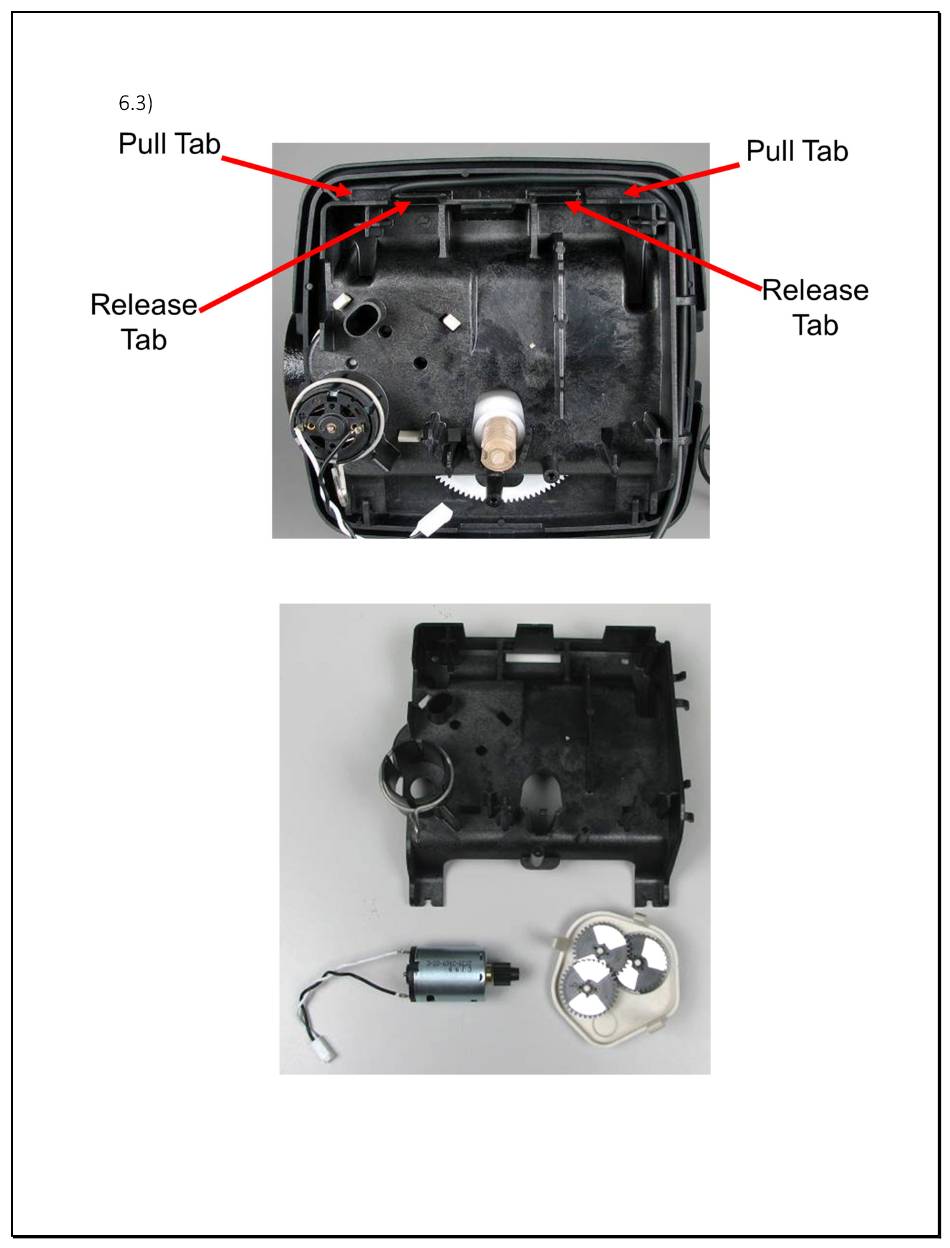

Drive Bracket Removal
Lift up both release tabs with thumbs and use index fingers to pull out the pull tab
Motor can be removed by pressing the locking spring to the right and then pull the motor out.
Gearbox can be removed by pushing the beige colored locking tabs inwards.
BARRIE • ONTARIO • CANADA TF: 705.733.8900 WWW.EXCALIBURWATER.COM
51
