SOFTENER INSTALLATION AND USER GUIDE

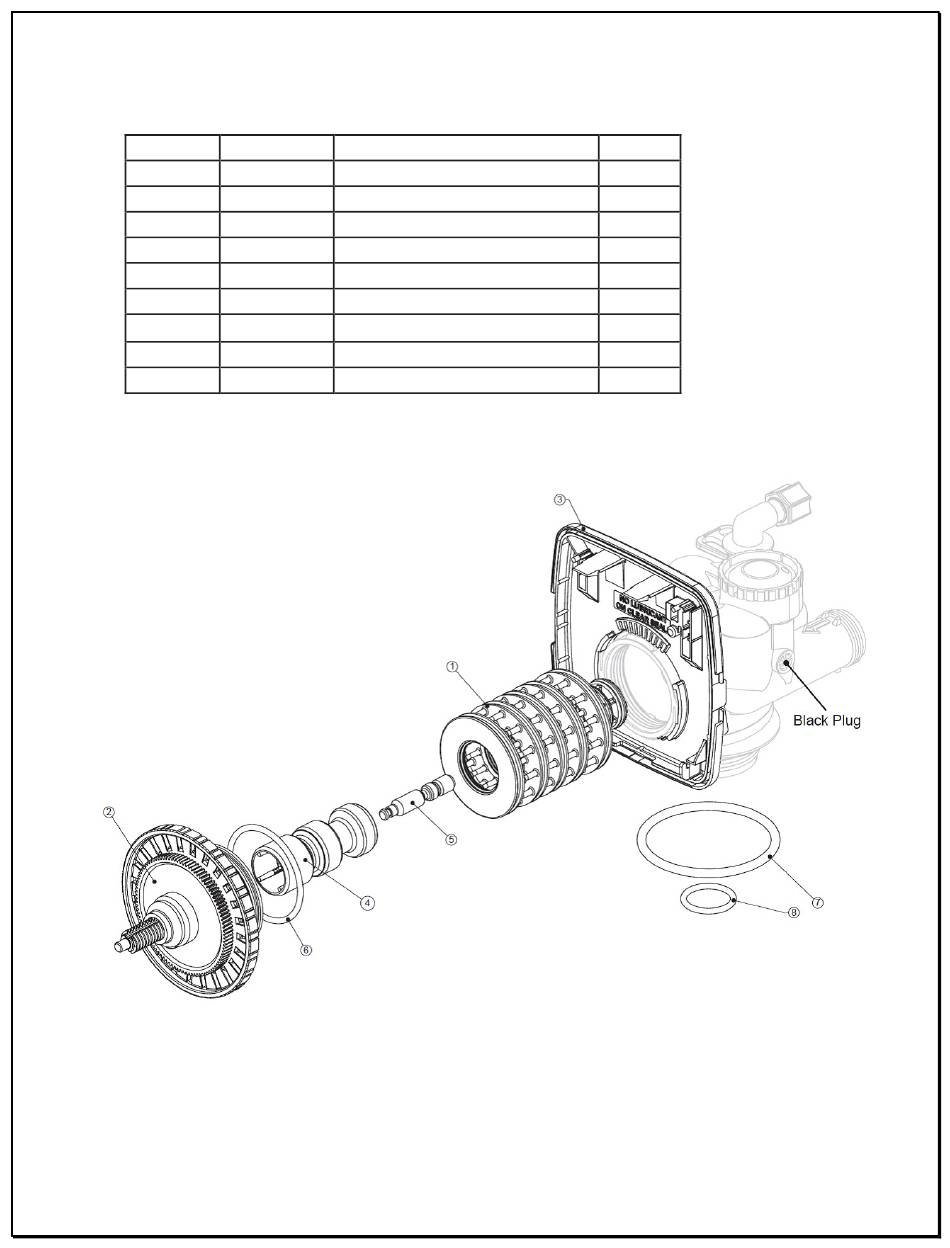

5.3.2) Drive assembly, Piston and Spacer stack
Drawing No. Order No.
1 V3005
2 V3004
3 V3178
4 V3011*
5 V3174
6 V3135
7 V3180
8 V3105
Not Shown V3001
BARRIE • ONTARIO • CANADA TF: 705.733.8900 WWW.EXCALIBURWATER.COM
Description
WS1 Spacer Stack Assembly
Drive Cap ASY
WS1 Drive Back Plate
WS1 Piston Downflow ASY
WS1 Regenerant Piston
O‐ring 228
O‐ring 337
O‐ring 215 (Distributor Tube)
WS1 Body ASY Downflow
Quantity
1
1
1
1
1
1
1
1
1
