SOFTENER INSTALLATION AND USER GUIDE

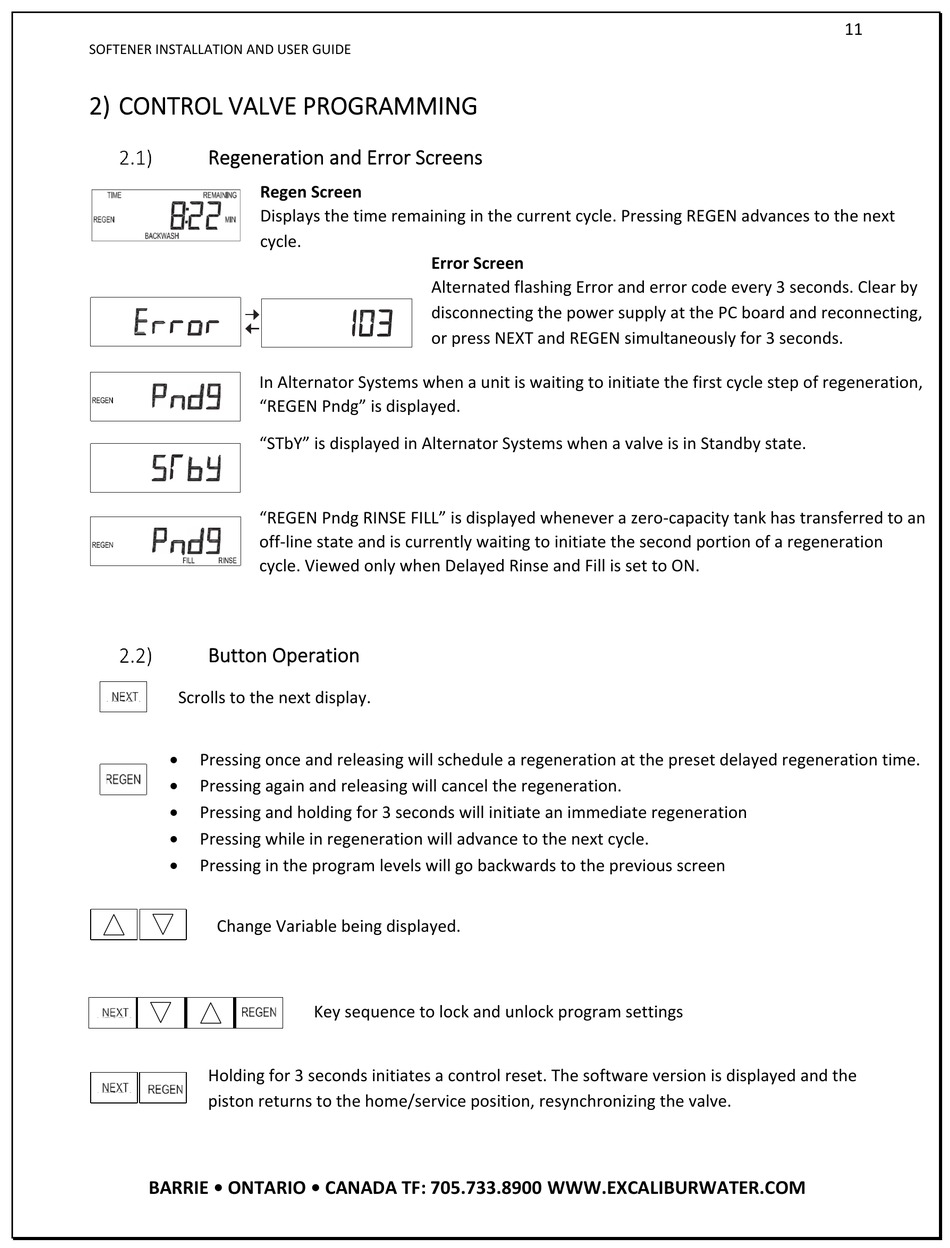

2) CONTROL VALVE PROGRAMMING
Regeneration and Error Screens
Regen Screen
Displays the time remaining in the current cycle. Pressing REGEN advances to the next
cycle.
In Alternator Systems when a unit is waiting to initiate the first cycle step of regeneration,
"REGEN Pndg" is displayed.
"STbY" is displayed in Alternator Systems when a valve is in Standby state.
"REGEN Pndg RINSE FILL" is displayed whenever a zero‐capacity tank has transferred to an
off‐line state and is currently waiting to initiate the second portion of a regeneration
cycle. Viewed only when Delayed Rinse and Fill is set to ON.
Button Operation
Scrolls to the next display.

Pressing once and releasing will schedule a regeneration at the preset delayed regeneration time.

Pressing again and releasing will cancel the regeneration.

Pressing and holding for 3 seconds will initiate an immediate regeneration

Pressing while in regeneration will advance to the next cycle.

Pressing in the program levels will go backwards to the previous screen
Change Variable being displayed.
Holding for 3 seconds initiates a control reset. The software version is displayed and the
piston returns to the home/service position, resynchronizing the valve.
BARRIE • ONTARIO • CANADA TF: 705.733.8900 WWW.EXCALIBURWATER.COM
Error Screen
Alternated flashing Error and error code every 3 seconds. Clear by
disconnecting the power supply at the PC board and reconnecting,
or press NEXT and REGEN simultaneously for 3 seconds.
Key sequence to lock and unlock program settings
