SOFTENER INSTALLATION AND USER GUIDE
oFF
BARRIE • ONTARIO • CANADA TF: 705.733.8900 WWW.EXCALIBURWATER.COM

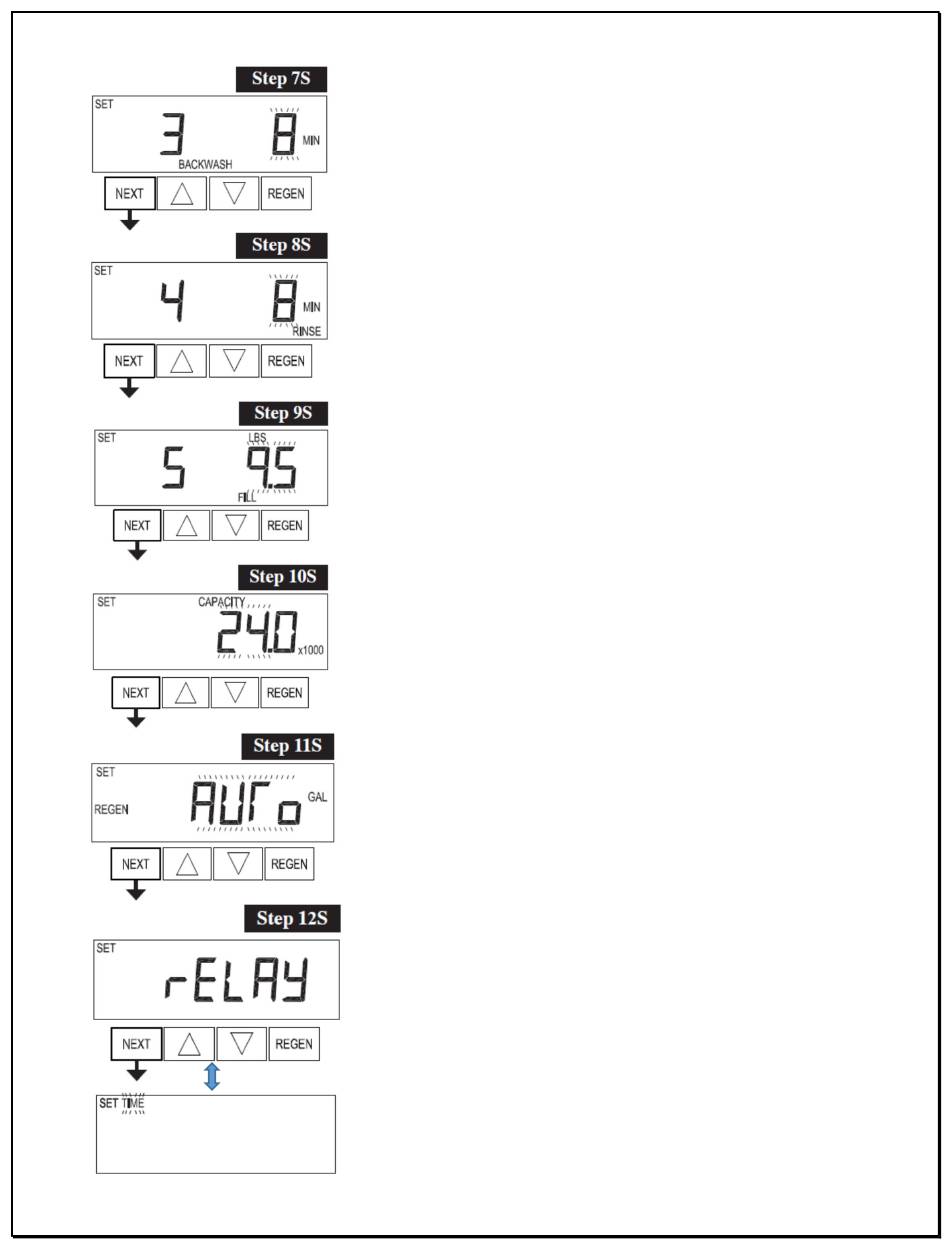

Step 7S – Select the time for second backwash cycle using ▲ or ▼.
Press NEXT to go to Step 8S. Press REGEN to return to previous step.
Step 8S – Select the time for rinse cycle using ▲ or ▼.
Press NEXT to go to Step 9S. Press REGEN to return to previous step.
Step 9S – Select the pounds of salt for fill cycle using ▲ or ▼.
Press NEXT to go to Step 10S. Press REGEN to return to previous
step.
Step 10S – Set System Capacity using ▲ or ▼. The System Capacity
setting should be based on the volume of resin and LBS of salt fill set
in Step 9S. Press NEXT to go to Step 11S. Press REGEN to return to
previous step.
Step 11S – Set "AUTO" Volume Capacity using ▲ or ▼. "AUTO"
means volume capacity will be calculated and reserve capacity will
be automatically estimated.
Press NEXT to go to Step 12S. Press REGEN to return to previous
step.
Step 12S – Set Relay Operation "OFF" using ▲ or ▼. Relay will not
energize.
Press NEXT to exit to normal screens. Press REGEN to return to
previous step.
16
