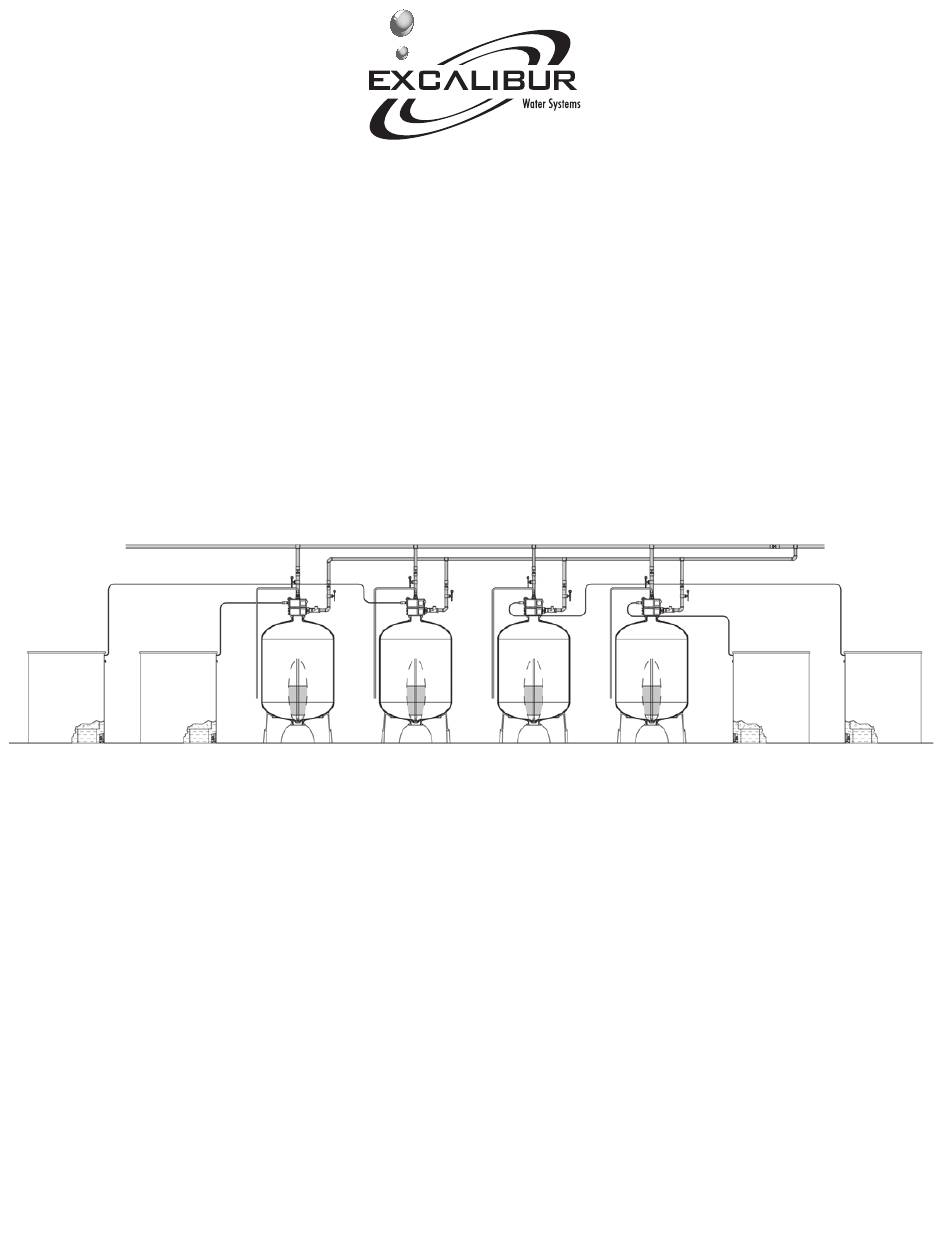

- Page 1 Excalibur WatEr SyStEmS 3.0” HigH capacity SupErfloW SEriES QuaDplEx WatEr SoftEnEr installation and operations manual 142 Commerce Park Drive, Units M-O, Barrie ON L4N 8W8 www.excaliburwater.com...
-
Page 2: Electrical Requirements
Water Pressure: All 3” water softeners require a minimum of 25psi of water pressure for regeneration of water softeners to operate effectively. Electrical Requirements: All 3” water softeners require 24 volt, 60 Hertz continuous current supply (other voltages are available). Make certain the water softeners current supply is always hot and cannot be turned off with another switch. - Page 3 brine tank at this time. E] Place the water softener in by-pass position. Turn on the main water supply to the water softener. Open a cold soft water faucet close to the water softener and let it run a few minutes or until the water softener is free from foreign material such as piping solder that may have resulted from the installation of the water softener.
- Page 4 Water Softener Flow Diagrams: Hard water enters the water softener control valve inlet and flows down through the water softener mineral tank to the bottom water softener distributor. The water softener conditioned water flows up through the distributor tube, around the water softener piston and out of the water softener outlet.
- Page 5 Water Softener Flow Diagrams Continued: Hard water enters the water softener control valve inlet, flows through service adapter piston for the water softener by-pass and up through coupling to water softener regeneration control valve inlet. Water flows continuously through the water softener regeneration control valve piston down the water softener distributor tube through the water softener media around the water softener piston and out the water softener drain.
- Page 6 Water Softener Flow Diagrams Continued: Hard water enters the water softener control valve inlet, flows through injector nozzle and throat to drain water softener brine from the water softener media into the bottom distributor, up the water softener distributor tube and around the water softener piston and out the water softener drain.
- Page 7 Water Softener Flow Diagrams Continued: Hard water enters the water softener control valve inlet, flows through injector nozzle and throat, down through the water softener media into the water softener bottom distributor up the water softener distributor tube around the water softener piston and out the water softener drain.
- Page 8 Water Softener Flow Diagrams Continued: Hard water enters the water softener control valve inlet, flows through the water softener regeneration water softener control valve directly down through the water softener media, into the water softener bottom distributor and up the water softener distributor tube around the water softener piston and out the water softener drain.
- Page 9 Water Softener Flow Diagrams Continued: Hard water enters the water softener control valve inlet, flows through the water softener nozzle and throat to the water softener brine valve to refill the water softener brine tank. The water softener inlet flow also continues down through the media to the water softener bottom distributor water softener conditioned water flows up through the water softener distributor tube, around the water softener piston and out of the water softener outlet.
- Page 10 3” Water Softener Electronic Controller:...
- Page 11 Water Softener Timer Operation: Set water softener time of day. When the water softener timer is in service, push either the water softener set up or set down button once to adjust the water softener time of day by one digit. Push and hold the water softener to adjust by several digits. Water softener manually initiating a regeneration: 1.
- Page 12 Start a Water Softener Regeneration Tonight: With water softener metered delayed timers, press the water softener extra cycle button briefly. The water softener in service indicator dot flashes and resume starts a water softener regeneration tonight. At the water softener programmed regeneration time. Water Softener Day Regeneration: During water softener normal operation, the time of day display is visible at all times.
-
Page 13: Water Softener System
softener timer, upon power re-application, resumes normal operation from the point that the water softener was interrupted. Note: An accurate water softener time of day may indicate a power outage. Water Softener Remote Lockout: The water softener timer does not allow the water softener system to go into regeneration until the water softener regeneration lockout input signal to the water softener is cleared. - Page 14 Water Softener Meter Immediate (1 water softener control valve): During the water softener normal operation the water softener time of day display alternates with the water softener volume remaining display (gallons or m - As treated water is used, the wter softener volume remaining display counts down from the water softener capacity to zero or (---).
- Page 15 - A manually forcced water softener regeneration (ECKEY) can only be done on the lead water softener control valve and only if the water softener system is not in regeneration. Water Softener System 7 Alternating (2 valve water softener): During normal water softener operation the time of day display alternates with the water softener volume remaining display (gallons or m ).
- Page 16 - Water softener system 6, 7 and 9 control valves coming out of water softener program mode or on power-up calculate their volume (display – calc) and then wait for a good communication signal. - When a good communication signal is received, the water softener system resumes normal operations.
- Page 17 Water Softener Extra Cycle Button Water softener valve in regeneration - light on Water Softener Set Down Button Adjust water softener valve down. Water Softener Set Up Button Adjust water softener valve up. Water Softener Diagnostic Button View flow rate, peak flow rate, totalizer, hours between last two water softener regenerations, hours since last water softener regeneration, adjustable volume remaining,...
- Page 18 Press the water softener set up and set down buttons to adjust the water softener valve. Press the water softener extra cycle button to proceed to the day override. 4. Set water softener regeneration day override: Use this water softener display to set the maximum amount of time (in days) the water softener can be in service without a water softener regeneration.
- Page 19 Water Softener Master Programming Flow Chart Note: 1. Set water softener time of day to 12:01 PM 2. Press and hold both the water softener set up and set down buttons for 5 seconds. 3. Press the water softener extra cycle button once per display until all displays are viewed and normal display is...
- Page 20 Water Softener Master Programming Flow Chart...
- Page 21 Water Softener Master Programming Flow Chart...
- Page 22 Water Softener Master Programming Flow Chart...
- Page 23 Water Softener Master Programming Flow Chart When the water softener master programming mode is entered, all available water softener option setting displays may be viewed and set as needed. Depending on current option settings, some water softener displays cannot be viewed or set. Entering Water Softener Master Programming Mode: Set the water softener time of day display to 12:01 PM.
- Page 24 2. Water softener regenerant flow (no display code). This water softener program step is used to set the water softener regeneration type. Availablility is dependent on the water softener model chosen. Water softener down flow, setting (dF) Water softener up flow, brine first setting (UFBF) Water softener up flow, fill first setting (UFFF) - Use water softener set up or set down buttons to adjust this valve.
- Page 25 Water Softener System 7 Meter Immediate (Alternating) Setting (7F1): This is a 2 water softener system, with only one water softener having a meter and only one water softener in service. When the water softener volume of treated water drops to zero (0) in the water softener in service, it requests regeneration.
- Page 26 Water softner M3 of water, 24 hour timekeeping and degrees of hardness Settng (U - - 4) - Use water softener set up or set down buttons to adjust this value. - Press the water softener extra cycle button. 7. Water Softener Capacity (Display Code C): This water softener program step sets the capacity of the water softener system in kilograins (or m x degrees for metric water softener systems).
- Page 27 Water softener range = any time setting (2:00) (PM indicator OFF) Water softener 2 AM regeneration time. - use water softener set up and set down buttons to adjust the value. - press the water softener extra cycle button. 11. Water Softener Regeneration Day Override (Display Code A): This water softener program step sets the maximum amount of time (in days) the water softener can be in service without a water softener regeneration.
- Page 28 when a set water softener volume of water used has accumulated. This second is not viewed on non-metered water softener systems. When more than one of these water softener settings is used, the water softener relay must be wired to the auxiliary brine cam switch output to operate two separate pieces of equipment at one time.
- Page 29 Water Softener Generic Flow Meter Size (Display Code F): This water softener program step sets the proper number of pulses generated by the flow meter for each gallon or litre of water flow. - use water softener set up and set down buttons to adjust this value. - press the water softener extra cycle button.
- Page 30 Water Softener Operation Display Definitions and Examples:...
- Page 31 Water Softener Diagnostic Programming Mode Flow Chart: Note: 1. Push and release the “D” water softener button. 2 Press the water softener extra cycle button once per water softener display until all water softener displays are viewed and normal water softener display is resumed.
- Page 32 Water Softener Diagnostic Programming Guide: Water softener extra cycle button Water softener set down button Water softener set up button Water softener diagnostic button When the water softener diagnostics mode is entered, all available water softener displays are viewed as needed. Depending on current option settings, some water softener displays cannot be viewed.
- Page 33 1. Water Softener Flow Rate (Display code R): The water softener flow rate for this particular timer will be calculated and displayed. The water softener flow rates will be calculated over the time between water softener pulses up to 20 seconds will be ignored. If the water softener display is flashing, the flow rate has exceeded the water softener range and will not calculate.
- Page 34 5. Water Softener Hours Since Last Regeneration (Display Code) The hours since last water softener regeneration will be saved and displayed. Water softener display example = 67 Water softener range = 0 to 999 hours - Depress the water softener extra cycle button. 6.
- Page 35 Water Softener Diagnostics Display Definitions and Examples:...
- Page 36 Water Softener Network Timer System Wiring Diagrams:...
- Page 37 Water Softener Transformer, Phone Cable and Meter Cable Installation:...
- Page 38 Water Softener Trouble Shooting:...
- Page 39 Water Softener Programming Trouble Shooting:...
