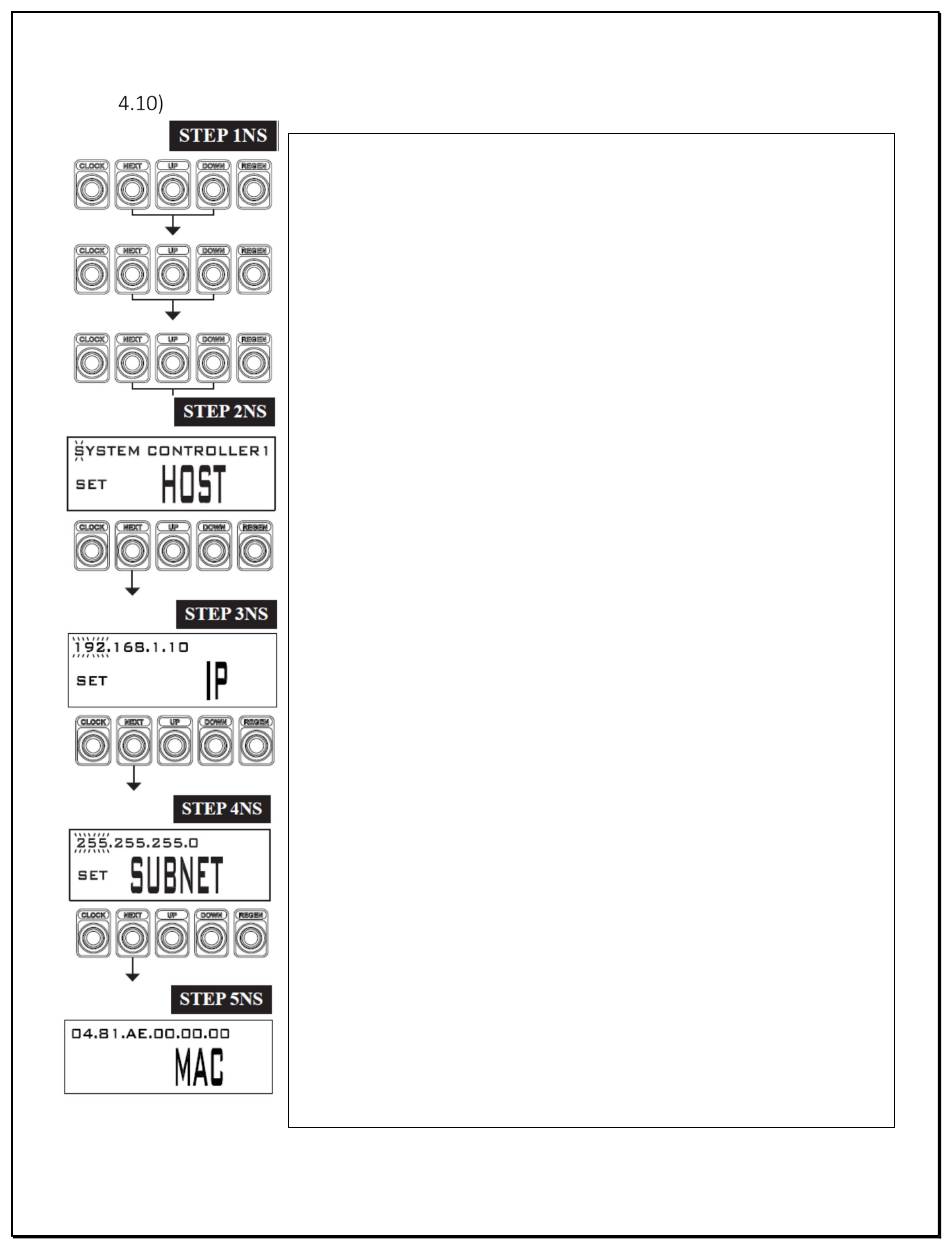

STEP 1NS: ‐ Press NEXT and DOWN buttons simultaneously and release after 3
seconds. Repeat this step for another two times.
STEP 2NS: ‐ Set the desired Host Name to identify this controller on the
network. Pressing CLOCK will select the first letter, use UP or DOWN to change
each letter. Press NEXT to forward to the next character. Press NEXT to go to
Step 3NS. Press REGEN to go to previous character or step.
STEP 3NS: ‐ IP Addressing – Set the proper static IP address. Each IP address
has four sections separated by decimal points. Pressing CLOCK will select the
first section of the address to be changed. Press UP or DOWN to adjust each
section, using NEXT to advance to the next section and to Step 4NS.
STEP 4NS: ‐ Subnet Masking – Set the proper Subnet Mask. Each Subnet Mask
has four sections separated by decimal points. The System Controller will only
be able to communicate with other devices within the same subnet. Pressing
CLOCK will select the first section of the address to be changed by pressing UP
or DOWN buttons to adjust each section. Pressing NEXT will advance to the
next section and to the Step 5NS.
STEP 5NS: ‐ MAC address – The controller's unique ID code that is set at the
factory. This information is read‐only for information purposes. Press NEXT to
exit Network Configuration. Press REGEN to return to the previous step.
