SOFTENER INSTALLATION AND USER GUIDE
Exit Diagnostics
BARRIE • ONTARIO • CANADA TF: 705.733.8900 WWW.EXCALIBURWATER.COM

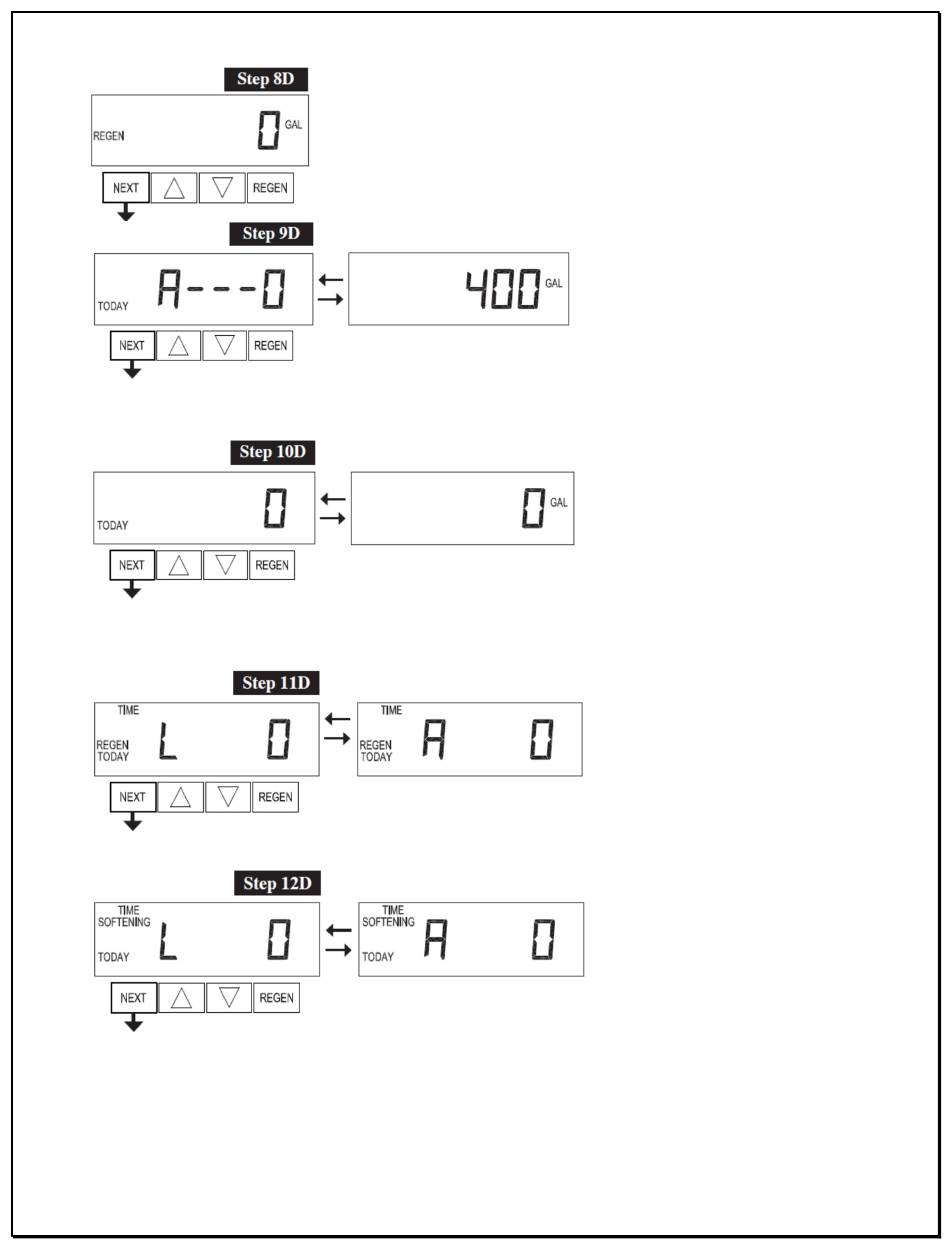

Step 8D – Volume, since last regeneration: This display shows the volume
of water that has been treated since the last regeneration. This display will
equal zero when a water meter is not installed. Press NEXT to go to Step
9D. Press REGEN to return to previous step.
be yesterday) and flashes the reserve capacity used. Pressing ▲ again will show
day 2 (the day before yesterday) and the reserve capacity. Keep pressing ▲ to
show the capacity for days 3, 4, 5 and 6. ▼ can be series.
Press NEXT at any time to go to Step 10D. Press REGEN to return to previous step.
treated on that day. Continue to press ▲ to show the maximum volume of water
treated for the last 63 days. If a regeneration occurred on the day, the word
"REGEN" will also be displayed. This display will show dashes if a water meter is
not installed.
Step 9D – Volume, reserve capacity used for
last 7 days. This display shows day 0 (for
today) and flashes the reserve capacity.
Pressing ▲ will show day 1 (which would be
pressed to move backwards in the day
Step 10D – Volume, 63‐day usage history:
This display shows day 0 (for today) and
flashes the volume of water treated today.
Pressing ▲ will show day 1 (which would be
yesterday) and flashes the volume of water
Step 11D – Retracted piston rod drive
history. L stand for latest and A stands for
average. The time second is 1/100 of given
number on display.
Step 12D – Extended piston rod drive
history. L stand for latest and A stands for
average. The time second is 1/100 of given
number on display. Press and hold ▲ and
▼ buttons for 3 seconds to reset the
extended and retracted drive history.
18
