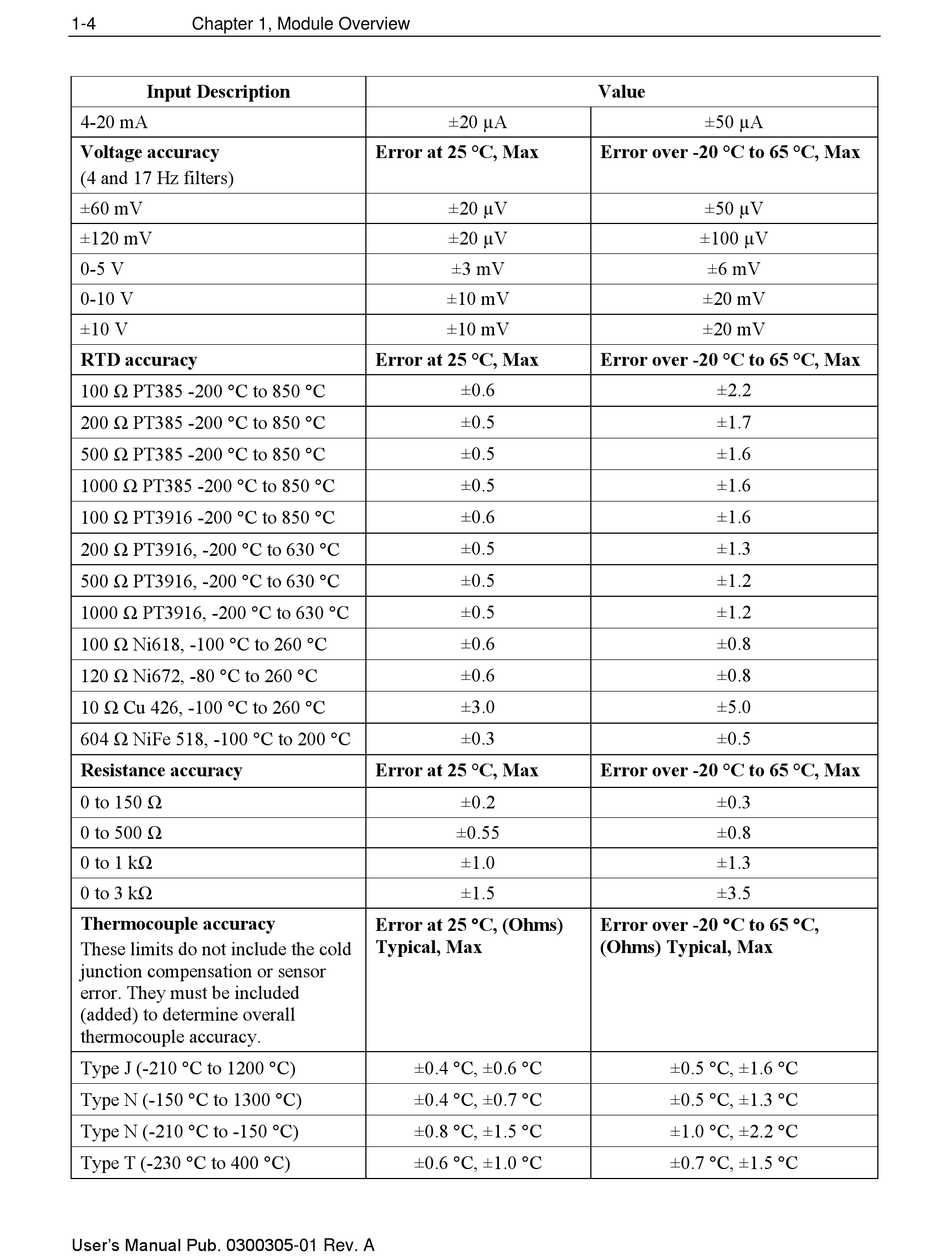

1-4
Chapter 1, Module Overview
Input Description
4-20 mA
Voltage accuracy
(4 and 17 Hz filters)
±60 mV
±120 mV
0-5 V
0-10 V
±10 V
RTD accuracy
100 Ω PT385 -200 C to 850 C
200 Ω PT385 -200 C to 850 C
500 Ω PT385 -200 C to 850 C
1000 Ω PT385 -200 C to 850 C
100 Ω PT3916 -200 C to 850 C
200 Ω PT3916, -200 C to 630 C
500 Ω PT3916, -200 C to 630 C
1000 Ω PT3916, -200 C to 630 C
100 Ω Ni618, -100 C to 260 C
120 Ω Ni672, -80 C to 260 C
10 Ω Cu 426, -100 C to 260 C
604 Ω NiFe 518, -100 C to 200 C
Resistance accuracy
0 to 150 Ω
0 to 500 Ω
0 to 1 kΩ
0 to 3 kΩ
Thermocouple accuracy
These limits do not include the cold
junction compensation or sensor
error. They must be included
(added) to determine overall
thermocouple accuracy.
Type J (-210 C to 1200 C)
Type N (-150 C to 1300 C)
Type N (-210 C to -150 C)
Type T (-230 C to 400 C)
User's Manual Pub. 0300305-01 Rev. A
±20 µA
Error at 25 °C, Max
±20 µV
±20 µV
±3 mV
±10 mV
±10 mV
Error at 25 °C, Max
±0.6
±0.5
±0.5
±0.5
±0.6
±0.5
±0.5
±0.5
±0.6
±0.6
±3.0
±0.3
Error at 25 °C, Max
±0.2
±0.55
±1.0
±1.5
Error at 25 C, (Ohms)
Typical, Max
±0.4 C, ±0.6 C
±0.4 C, ±0.7 C
±0.8 C, ±1.5 C
±0.6 C, ±1.0 C
Value
±50 µA
Error over -20 °C to 65 °C, Max
±50 µV
±100 µV
±6 mV
±20 mV
±20 mV
Error over -20 °C to 65 °C, Max
±2.2
±1.7
±1.6
±1.6
±1.6
±1.3
±1.2
±1.2
±0.8
±0.8
±5.0
±0.5
Error over -20 °C to 65 °C, Max
±0.3
±0.8
±1.3
±3.5
Error over -20 C to 65 C,
(Ohms) Typical, Max
±0.5 C, ±1.6 C
±0.5 C, ±1.3 C
±1.0 C, ±2.2 C
±0.7 C, ±1.5 C
