Chapter 3: Configuring the 2085sc-IF8u Using CCW
User's Manual Pub. 0300305-01 Rev. A

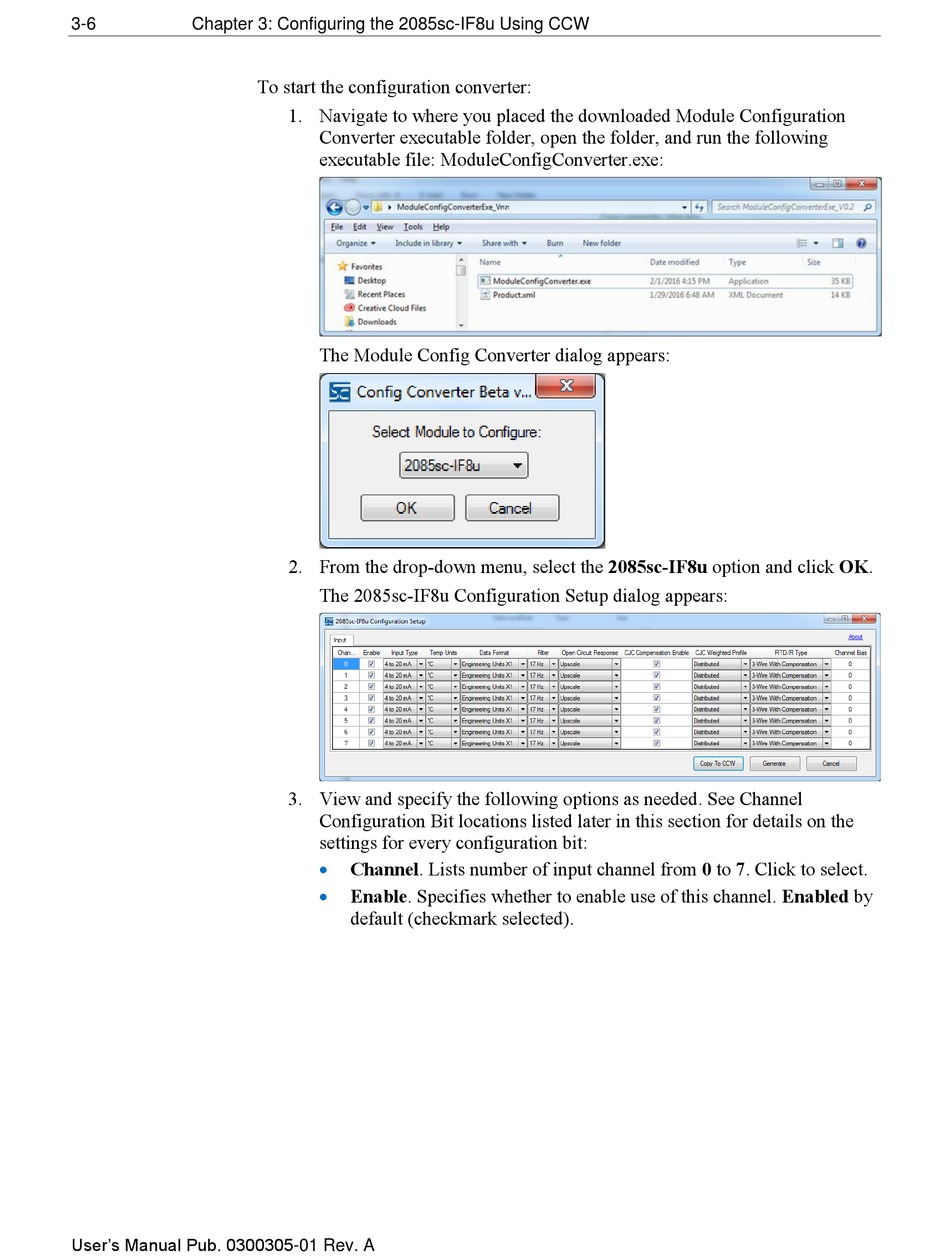

To start the configuration converter:
1. Navigate to where you placed the downloaded Module Configuration
Converter executable folder, open the folder, and run the following
executable file: ModuleConfigConverter.exe:
The Module Config Converter dialog appears:
2. From the drop-down menu, select the 2085sc-IF8u option and click OK.
The 2085sc-IF8u Configuration Setup dialog appears:
3. View and specify the following options as needed. See Channel
Configuration Bit locations listed later in this section for details on the
settings for every configuration bit:
Channel. Lists number of input channel from 0 to 7. Click to select.
Enable. Specifies whether to enable use of this channel. Enabled by
default (checkmark selected).
