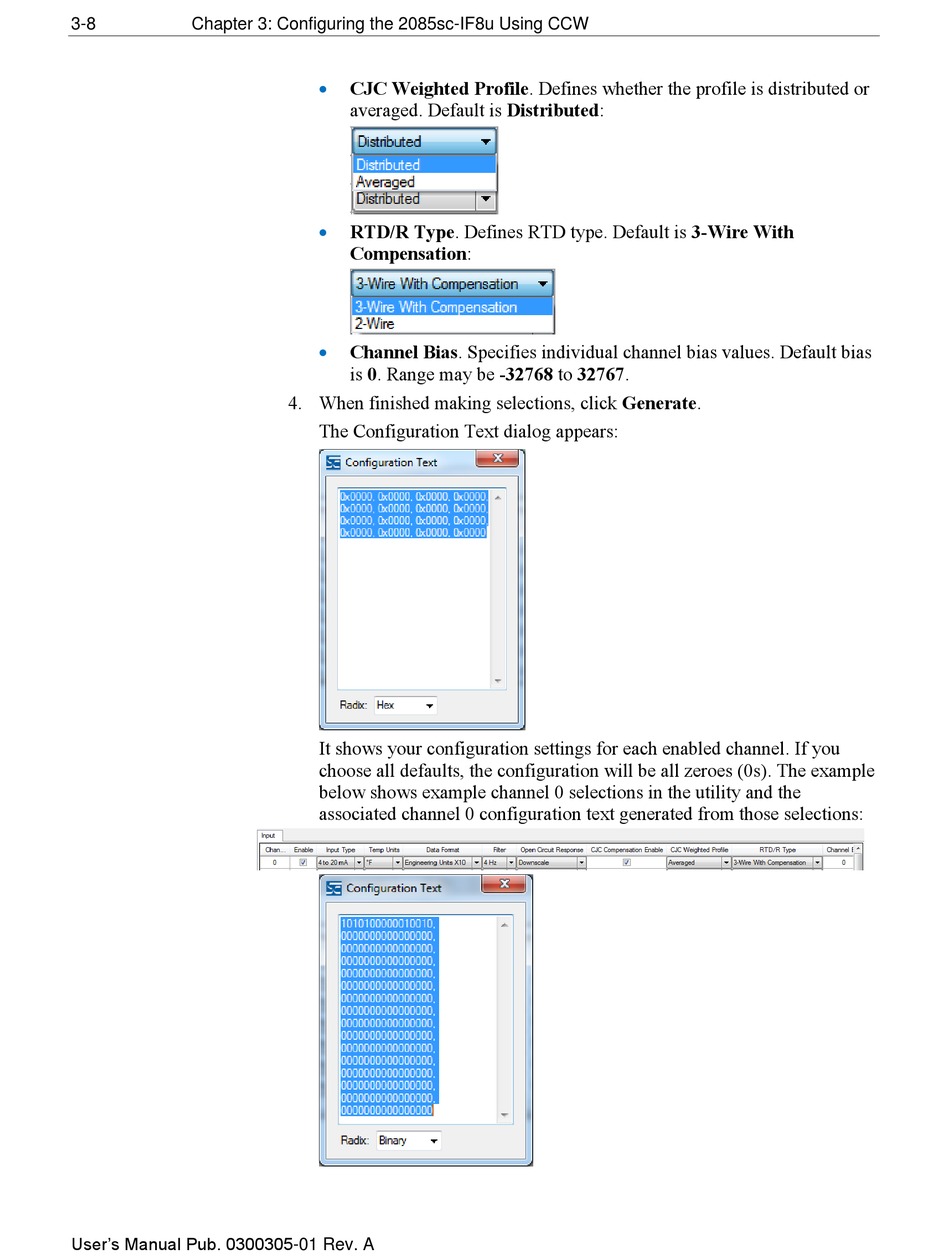

3-8
Chapter 3: Configuring the 2085sc-IF8u Using CCW
User's Manual Pub. 0300305-01 Rev. A
CJC Weighted Profile. Defines whether the profile is distributed or
averaged. Default is Distributed:
RTD/R Type. Defines RTD type. Default is 3-Wire With
Compensation:
Channel Bias. Specifies individual channel bias values. Default bias
is 0. Range may be -32768 to 32767.
4. When finished making selections, click Generate.
The Configuration Text dialog appears:
It shows your configuration settings for each enabled channel. If you
choose all defaults, the configuration will be all zeroes (0s). The example
below shows example channel 0 selections in the utility and the
associated channel 0 configuration text generated from those selections:
