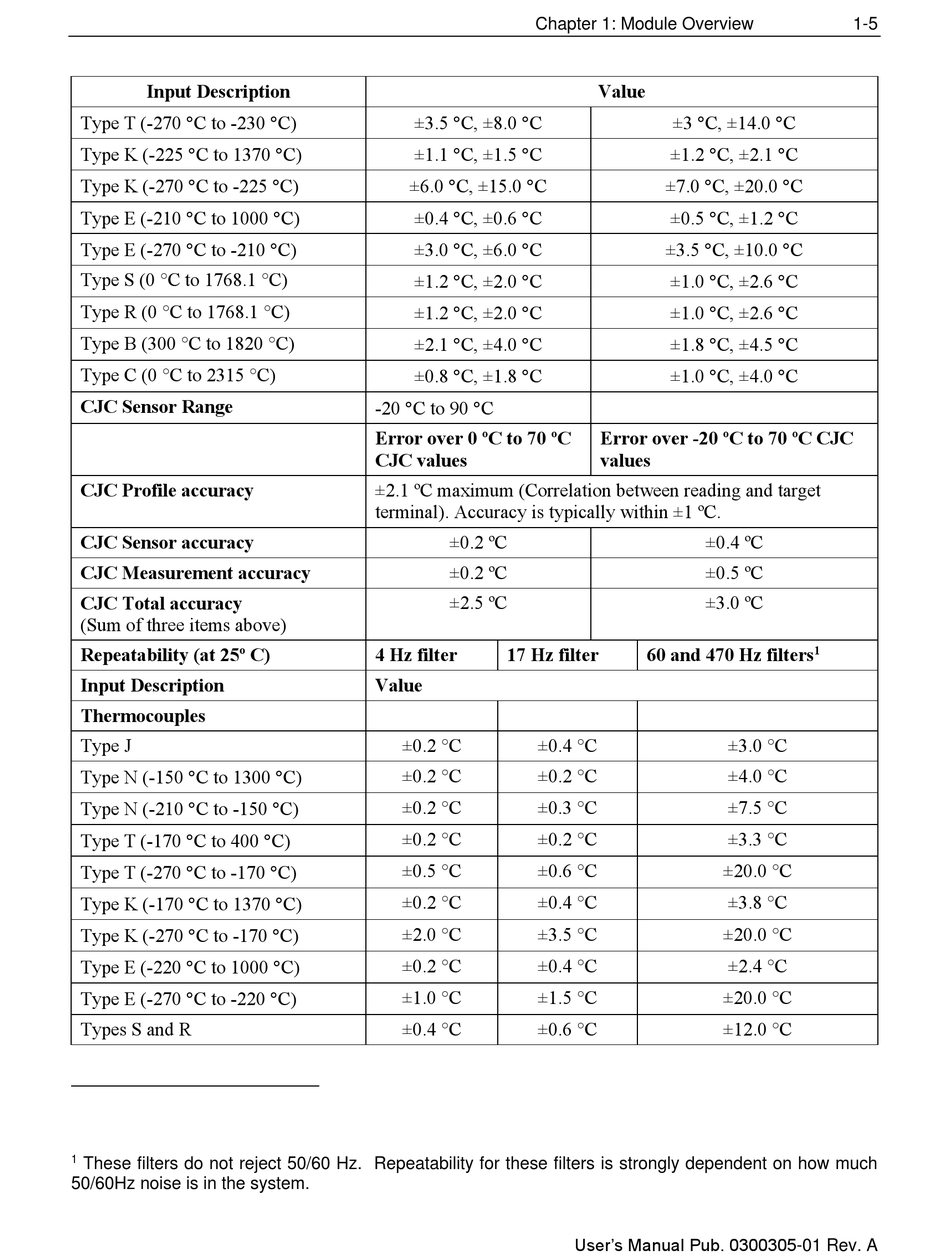

Spectrum Controls 2085sc-IF8U User Manual page 11

Input Description
Type T (-270 C to -230 C)
Type K (-225 C to 1370 C)
Type K (-270 C to -225 C)
Type E (-210 C to 1000 C)
Type E (-270 C to -210 C)
Type S (0 °C to 1768.1 °C)
Type R (0 °C to 1768.1 °C)
Type B (300 °C to 1820 °C)
Type C (0 °C to 2315 °C)
CJC Sensor Range
CJC Profile accuracy
CJC Sensor accuracy
CJC Measurement accuracy
CJC Total accuracy
(Sum of three items above)
Repeatability (at 25º C)
Input Description
Thermocouples
Type J
Type N (-150 C to 1300 C)
Type N (-210 C to -150 C)
Type T (-170 C to 400 C)
Type T (-270 C to -170 C)
Type K (-170 C to 1370 C)
Type K (-270 C to -170 C)
Type E (-220 C to 1000 C)
Type E (-270 C to -220 C)
Types S and R
1
These filters do not reject 50/60 Hz. Repeatability for these filters is strongly dependent on how much
50/60Hz noise is in the system.
Chapter 1: Module Overview
±3.5 C, ±8.0 C
±1.1 C, ±1.5 C
±6.0 C, ±15.0 C
±0.4 C, ±0.6 C
±3.0 C, ±6.0 C
±1.2 C, ±2.0 C
±1.2 C, ±2.0 C
±2.1 C, ±4.0 C
±0.8 C, ±1.8 C
-20 C to 90 C
Error over 0 ºC to 70 ºC
CJC values
±2.1 ºC maximum (Correlation between reading and target
terminal). Accuracy is typically within ±1 ºC.
±0.2 ºC
±0.2 ºC
±2.5 ºC
4 Hz filter 17 Hz filter
Value
±0.2 °C ±0.4 °C
±0.2 °C ±0.2 °C
±0.2 °C ±0.3 °C
±0.2 °C ±0.2 °C
±0.5 °C ±0.6 °C
±0.2 °C ±0.4 °C
±2.0 °C ±3.5 °C
±0.2 °C ±0.4 °C
±1.0 °C ±1.5 °C
±0.4 °C ±0.6 °C
Value
±3 C, ±14.0 C
±1.2 C, ±2.1 C
±7.0 C, ±20.0 C
±0.5 C, ±1.2 C
±3.5 C, ±10.0 C
±1.0 C, ±2.6 C
±1.0 C, ±2.6 C
±1.8 C, ±4.5 C
±1.0 C, ±4.0 C
Error over -20 ºC to 70 ºC CJC
values
±0.4 ºC
±0.5 ºC
±3.0 ºC
60 and 470 Hz filters
±3.0 °C
±4.0 °C
±7.5 °C
±3.3 °C
±20.0 °C
±3.8 °C
±20.0 °C
±2.4 °C
±20.0 °C
±12.0 °C
