3-24 Chapter 3: Configuring the 2085sc-IF8u Using CCW
Error Type Mod_Error (11:9) Extended_Error_Info(8:0)
No Error
0×0
Hardware
0×1
Error
Configuration
0×2
Error
Mod_Error (11:9) Extended_Error_Info(8:
0)
0×1 0×101
0×1 0×102
0×1 0×104
User's Manual Pub. 0300305-01 Rev. A

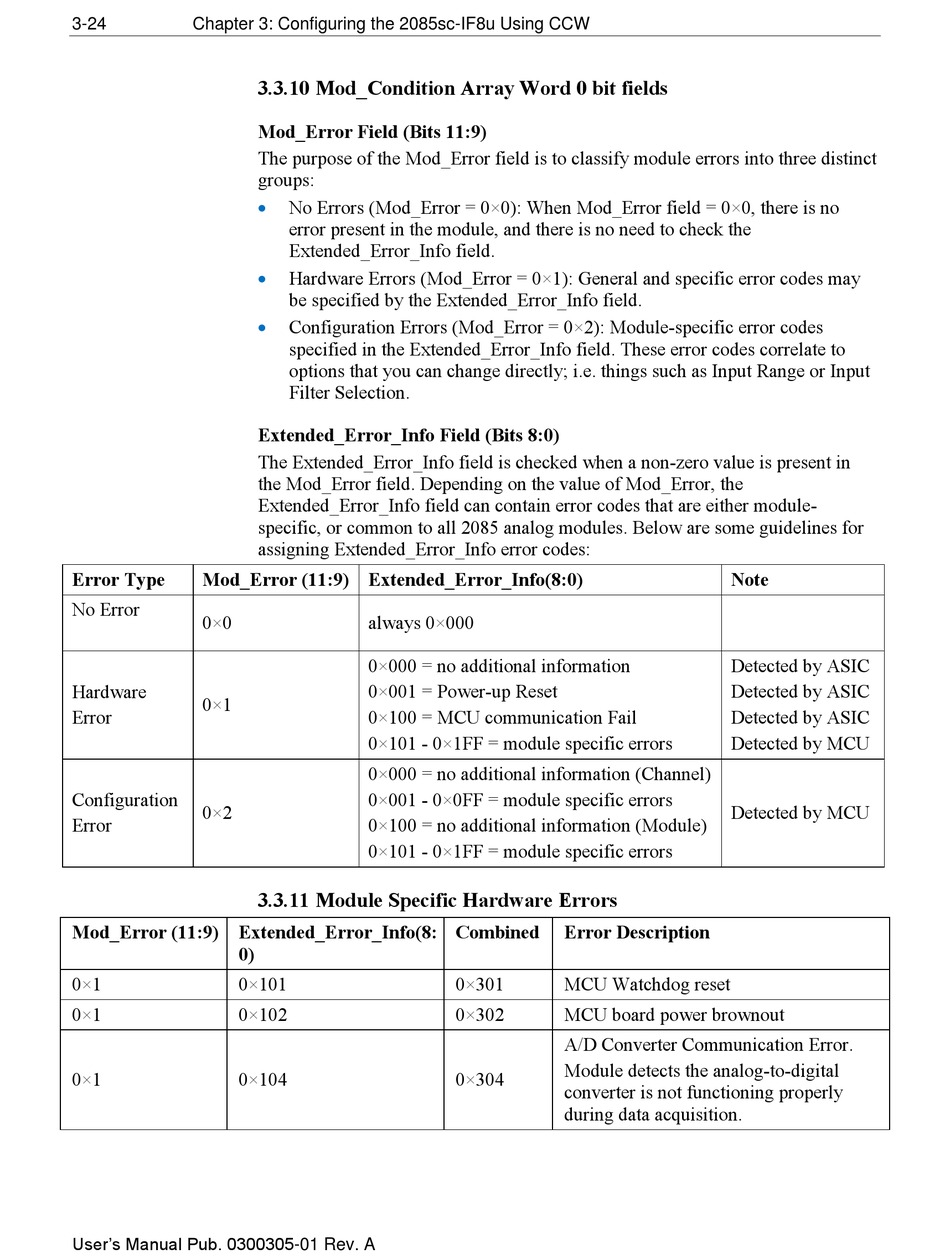

3.3.10 Mod_Condition Array Word 0 bit fields

Mod_Error Field (Bits 11:9)
The purpose of the Mod_Error field is to classify module errors into three distinct
groups:
 No Errors (Mod_Error = 0×0): When Mod_Error field = 0×0, there is no
error present in the module, and there is no need to check the
Extended_Error_Info field.
 Hardware Errors (Mod_Error = 0×1): General and specific error codes may
be specified by the Extended_Error_Info field.
 Configuration Errors (Mod_Error = 0×2): Module-specific error codes
specified in the Extended_Error_Info field. These error codes correlate to
options that you can change directly; i.e. things such as Input Range or Input
Filter Selection.
Extended_Error_Info Field (Bits 8:0)
The Extended_Error_Info field is checked when a non-zero value is present in
the Mod_Error field. Depending on the value of Mod_Error, the
Extended_Error_Info field can contain error codes that are either module-
specific, or common to all 2085 analog modules. Below are some guidelines for
assigning Extended_Error_Info error codes:
always 0×000
0×000 = no additional information
0×001 = Power-up Reset
0×100 = MCU communication Fail
0×101 - 0×1FF = module specific errors
0×000 = no additional information (Channel)
0×001 - 0×0FF = module specific errors
0×100 = no additional information (Module)
0×101 - 0×1FF = module specific errors

3.3.11 Module Specific Hardware Errors

Combined Error Description
0×301 MCU Watchdog reset
0×302 MCU board power brownout
A/D Converter Communication Error.
Module detects the analog-to-digital
0×304
converter is not functioning properly
during data acquisition.
Note
Detected by ASIC
Detected by ASIC
Detected by ASIC
Detected by MCU
Detected by MCU
