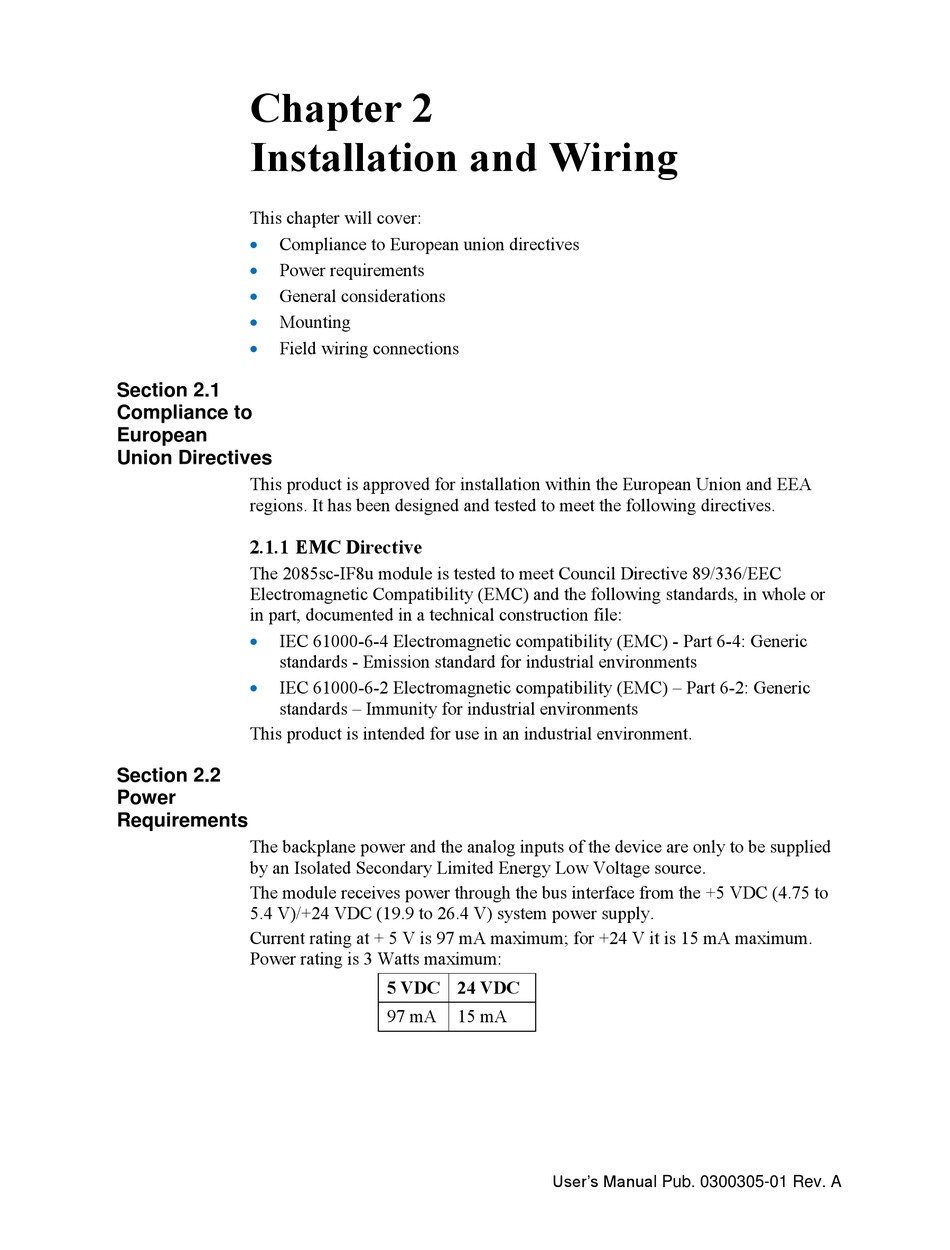

Chapter 2
Installation and Wiring
This chapter will cover:
Compliance to European union directives
Power requirements
General considerations
Mounting
Field wiring connections
Section 2.1
Compliance to
European
Union Directives
This product is approved for installation within the European Union and EEA
regions. It has been designed and tested to meet the following directives.

2.1.1 EMC Directive

The 2085sc-IF8u module is tested to meet Council Directive 89/336/EEC
Electromagnetic Compatibility (EMC) and the following standards, in whole or
in part, documented in a technical construction file:
IEC 61000-6-4 Electromagnetic compatibility (EMC) - Part 6-4: Generic
standards - Emission standard for industrial environments
IEC 61000-6-2 Electromagnetic compatibility (EMC) – Part 6-2: Generic
standards – Immunity for industrial environments
This product is intended for use in an industrial environment.
Section 2.2
Power
Requirements
The backplane power and the analog inputs of the device are only to be supplied
by an Isolated Secondary Limited Energy Low Voltage source.
The module receives power through the bus interface from the +5 VDC (4.75 to
5.4 V)/+24 VDC (19.9 to 26.4 V) system power supply.
Current rating at + 5 V is 97 mA maximum; for +24 V it is 15 mA maximum.
Power rating is 3 Watts maximum:
5 VDC 24 VDC
97 mA
15 mA
User's Manual Pub. 0300305-01 Rev. A
