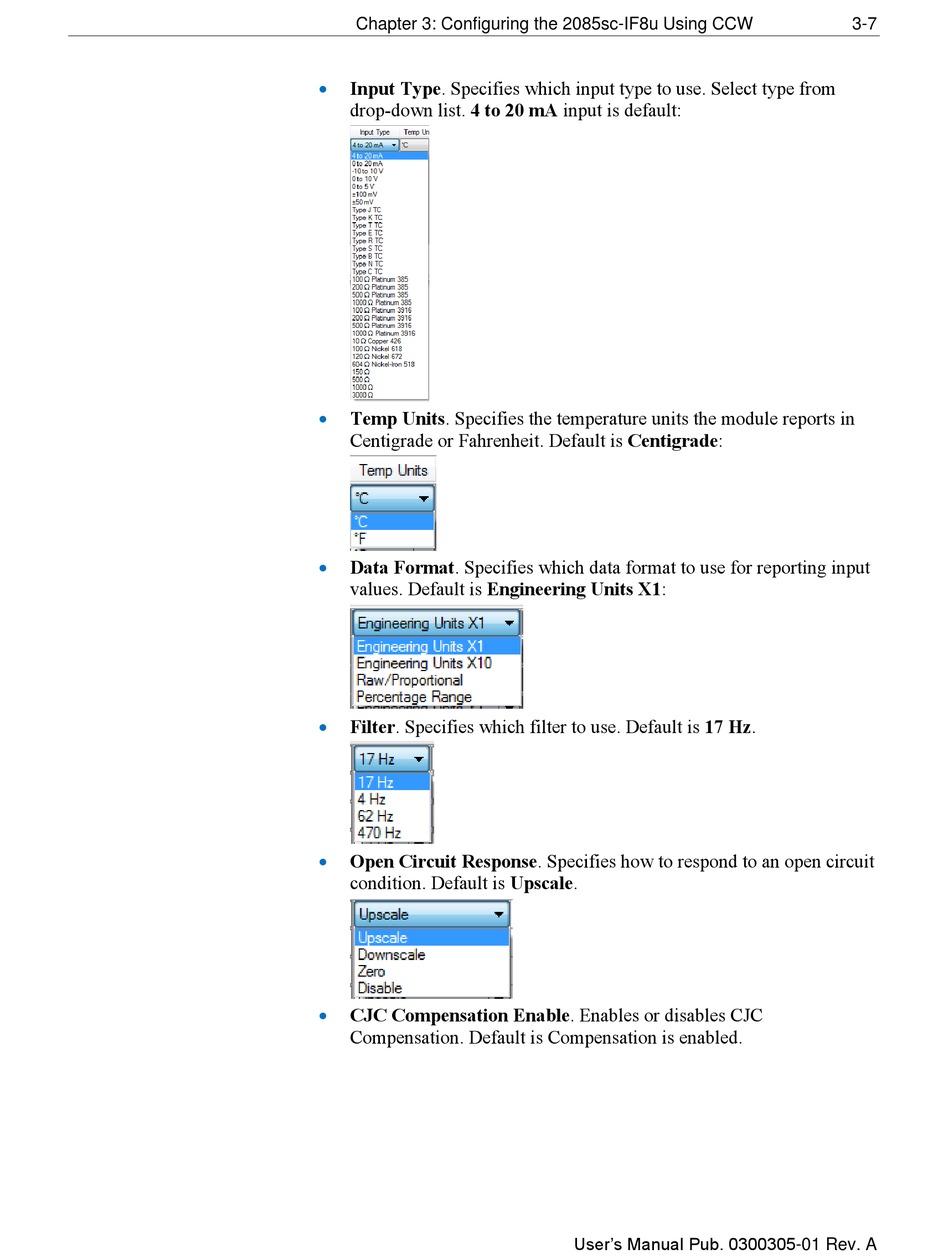

Chapter 3: Configuring the 2085sc-IF8u Using CCW
Input Type. Specifies which input type to use. Select type from
drop-down list. 4 to 20 mA input is default:
Temp Units. Specifies the temperature units the module reports in
Centigrade or Fahrenheit. Default is Centigrade:
Data Format. Specifies which data format to use for reporting input
values. Default is Engineering Units X1:
Filter. Specifies which filter to use. Default is 17 Hz.
Open Circuit Response. Specifies how to respond to an open circuit
condition. Default is Upscale.
CJC Compensation Enable. Enables or disables CJC
Compensation. Default is Compensation is enabled.
User's Manual Pub. 0300305-01 Rev. A
3-7
