Levelflex FMP56, FMP57 FOUNDATION Fieldbus
Endress+Hauser
12.5

Configuring level measurement

The Setup method can also be used to configure the measurement. This method can
be called via the SETUP Transducer Block (TRDSUP).
R
LN

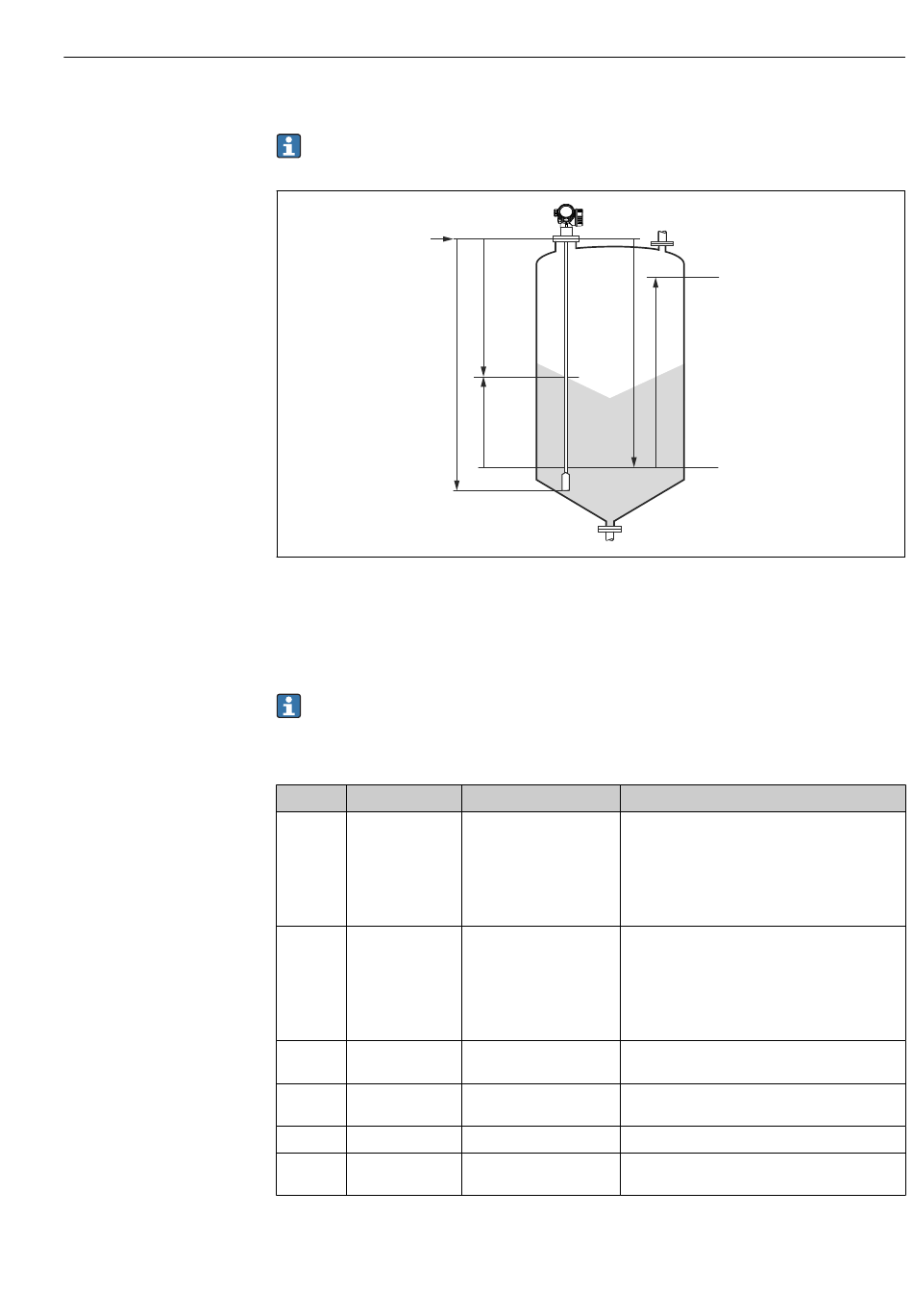

 31 Configuration parameters for level measurement in bulk solids
LN = Probe length
D = Distance
L = Level
If the DC value is less than 7 in the case of rope probes, measurement in the area of
the tensioning weight is not possible. The empty calibration E may not exceed LN -
250 mm (LN - 10 in) in these cases.
Step Block
1 SETUP (TRDSUP)
2 SETUP (TRDSUP)
3 SETUP (TRDSUP)
4 SETUP (TRDSUP)
5 SETUP (TRDSUP)
6 SETUP (TRDSUP)
Commissioning (block-oriented operation)
D
E
L
R = Reference point of measurement
E = Empty calibration (= zero point)
F = Full calibration (= span)
Parameter Action
Distance unit Select the distance unit.
(distance_unit)
Options:
• 1010: m
• 1013: mm
• 1018: in
• 1019: ft
Bin type (bin_type) Select bin type.
Options:
• 33288: Metal
• 33440: Plastic/wood
• 33465: Concrete
• 33467: Aluminum
Empty calibration Specify the empty distance E (distance from
(empty_calibration) reference point R to 0% mark).
Full calibration Specify the full distance F (distance from the 0%
(full_calibration) mark to the 100% mark).
Level (level) Displays the measured level L.
Distance Displays the distance D between the reference
(filtered_dist_val) point R and the level L.
20 mA
100%
F
4 mA
0%
A0012838
89
