Commissioning via operating menu
80
11.3

Configuring level measurement

R
LN

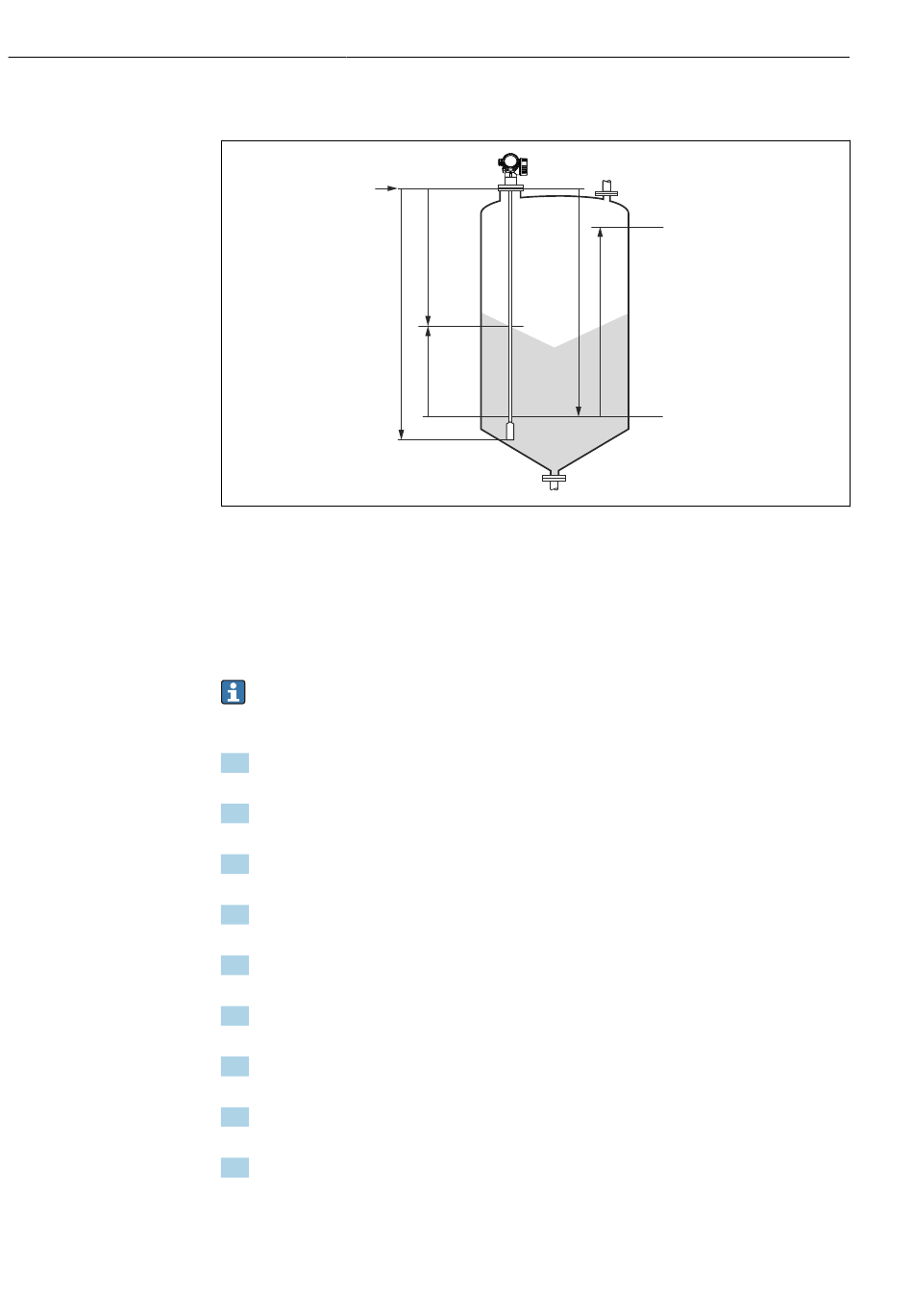

 28 Configuration parameters for level measurement in bulk solids
LN Probe length
R Reference point of measurement
D Distance
L Level
E Empty calibration (= zero point)
F Full calibration (= span)
If the ε value is lower than 7 in the case of rope probes, measurement is not possible
r
in the area of the tensioning weight. The empty calibration E should not exceed LN -
250 mm (LN - 10 in) in these cases.
1. Setup → Device tag
 Enter device tag.
2. Navigate to: Setup → Distance unit
 Select the distance unit.
3. Navigate to: Setup → Bin type
 Select bin type.
4. Navigate to: Setup → Empty calibration
 Specify the empty distance E (distance from reference point R to 0% mark).
5. Navigate to: Setup → Full calibration
 Specify the full distance F (distance from the 0% mark to the 100% mark).
6. Navigate to: Setup → Level
 Displays the measured level L.
7. Navigate to: Setup → Distance
 Displays the distance D between the reference point R and the level L.
8. Navigate to: Setup → Signal quality
 Displays the signal quality of the analyzed level echo.
9. Operation via local display:
Navigate to: Setup → Mapping → Confirm distance
 Compare the distance displayed with the actual value to start recording an
interference echo map (where applicable).
Levelflex FMP56, FMP57 FOUNDATION Fieldbus
D
E
L
20 mA
100%
F
4 mA
0%
