Mounting
32

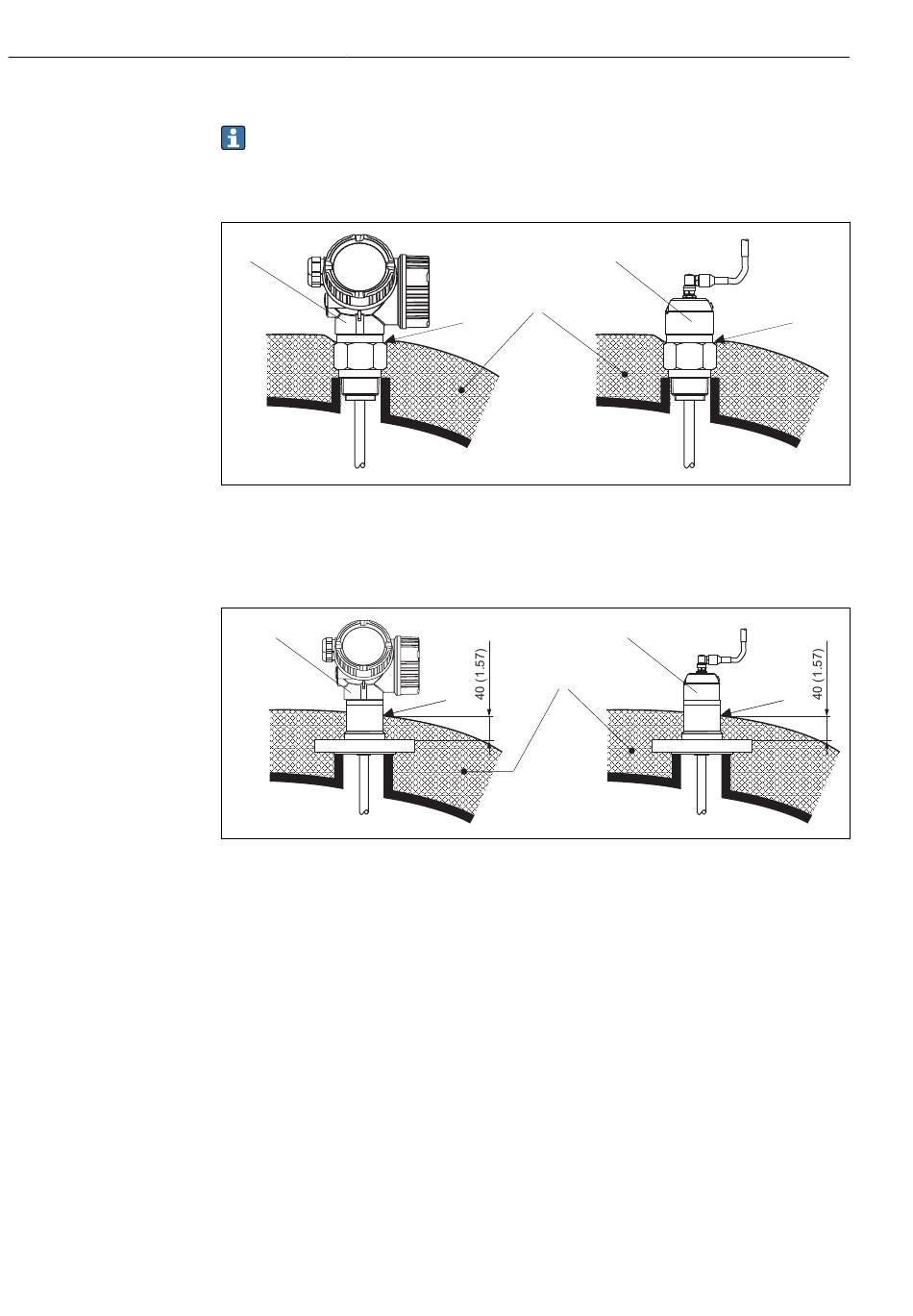

Vessel with thermal insulation
If process temperatures are high, the device must be included in normal vessel
insulation (1) in order to prevent the electronics heating up as a result of thermal
radiation or convection. The insulation may not go beyond the points labeled "MAX" in
the drawings.
2
 10 Process connection with thread
1 Vessel insulation
2 Compact device
3 Sensor, remote
2
mm (in)
 11 Process connection with flange - FMP57
1 Vessel insulation
2 Compact device
3 Sensor, remote
Levelflex FMP56, FMP57 FOUNDATION Fieldbus
1
MAX
1
MAX
3
MAX
3
MAX
Endress+Hauser
A0014653
A0014654
