Mounting
30

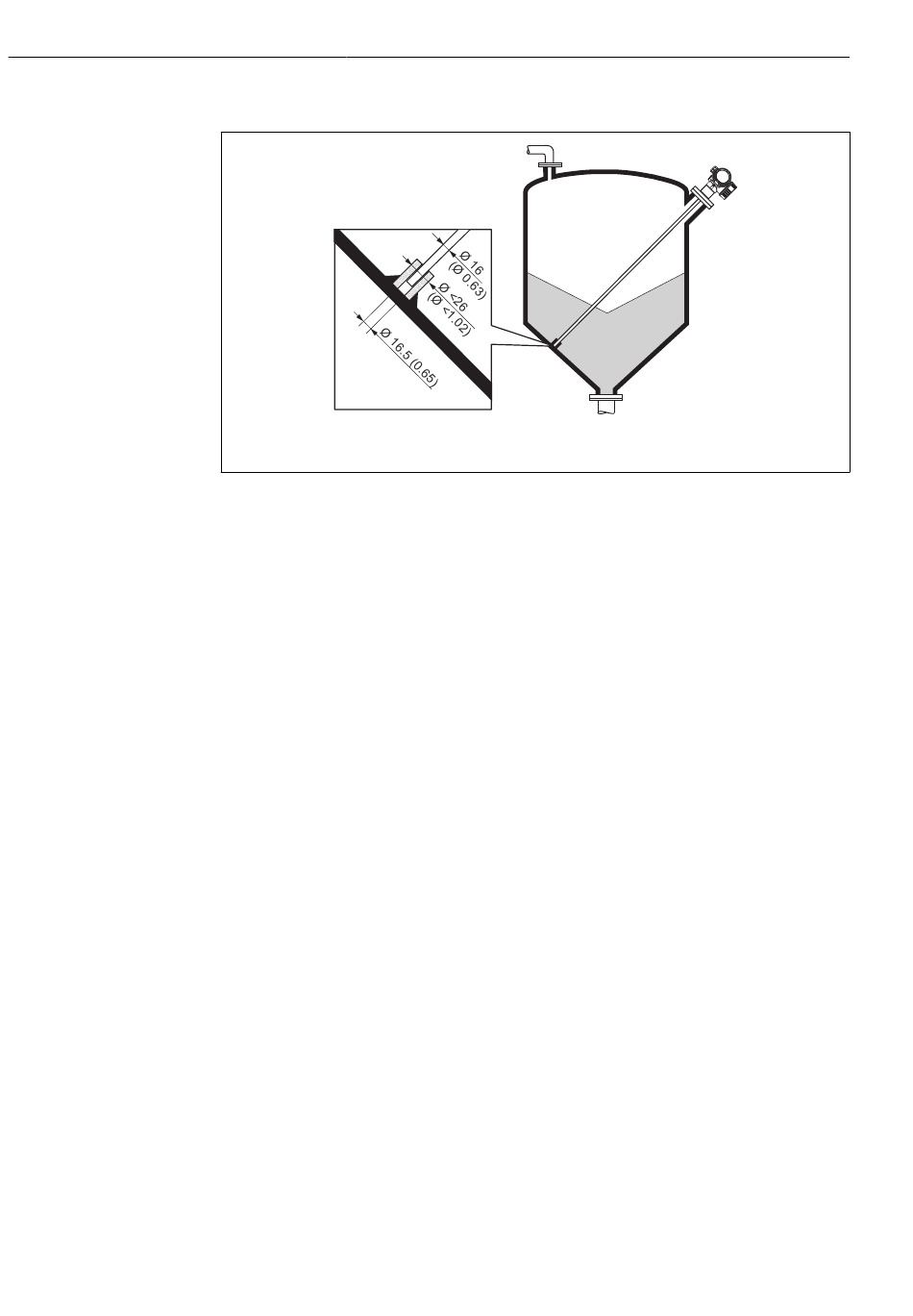

Mounting from the side
• If installation from above is not possible, the device can also be mounted from the side
• Always secure the rope probe in this case
• Support the rod and coax probe if the lateral load-bearing capacity is exceeded
• Only secure rod probes at the end of the probe
Levelflex FMP56, FMP57 FOUNDATION Fieldbus
mm (in)
A0014140
Endress+Hauser
