6.1.6

Special installation situations

Concrete silos

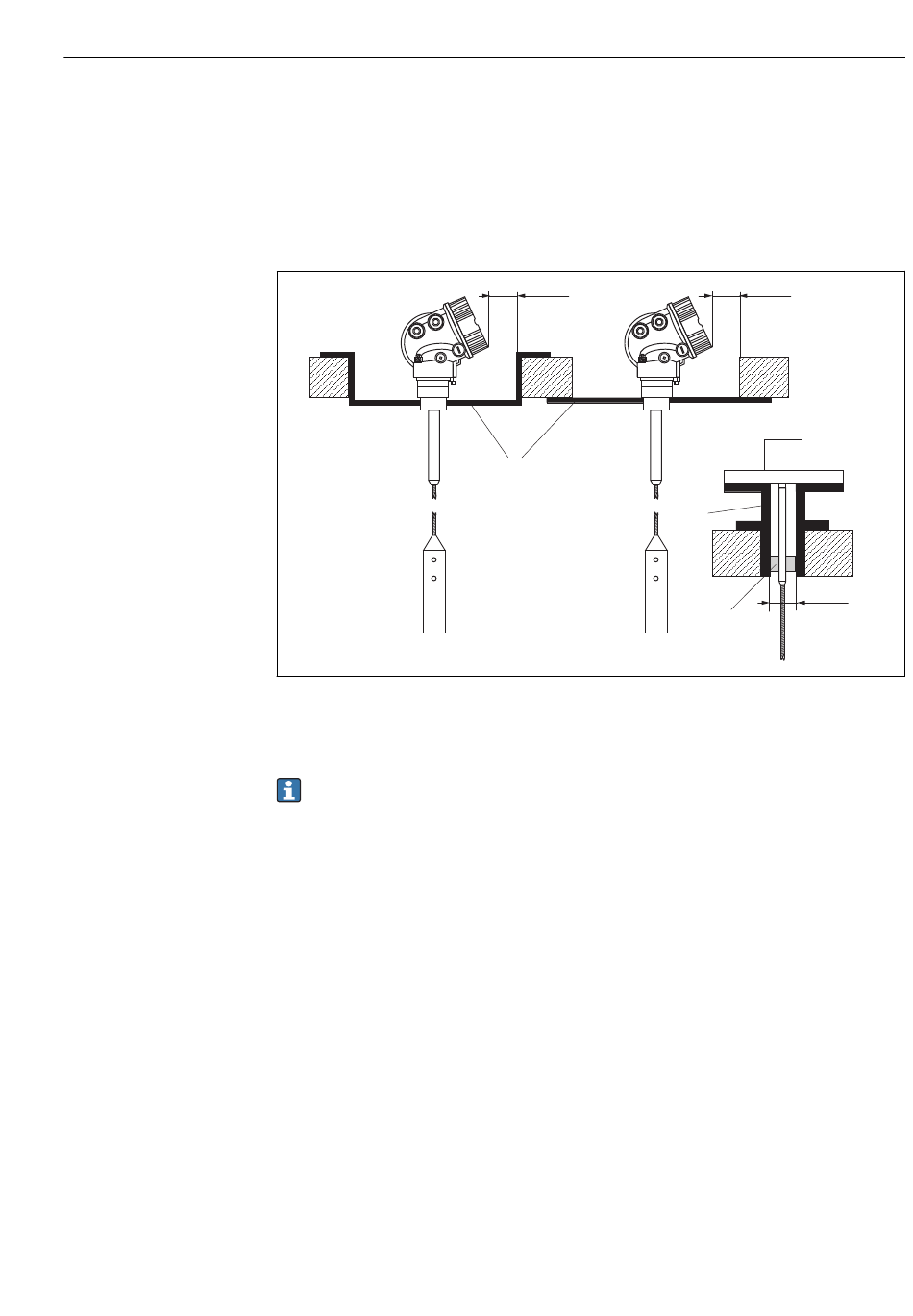

Installation in a thick concrete ceiling, for example, should be flush with the lower edge.
Alternatively, the probe can also be installed in a pipe that must not protrude over the
lower edge of the silo ceiling. The pipe should be as short as possible. For installation
suggestions, see the diagram below.
1 Metal plate
2 Metal pipe
3 Rod extension/centering device HMP40 (see "Accessories")
Installation with rod extension/centering device (accessory):
Strong dust generation can lead to build-up behind the centering disk. This can result
in interference reflections. For other installation options, please contact Endress
+Hauser.
100
≥
4
≥
1
Mounting
100
≥
4
≥
2
ø80...150
(ø3.2...6)
3
mm (in)
A0014138
