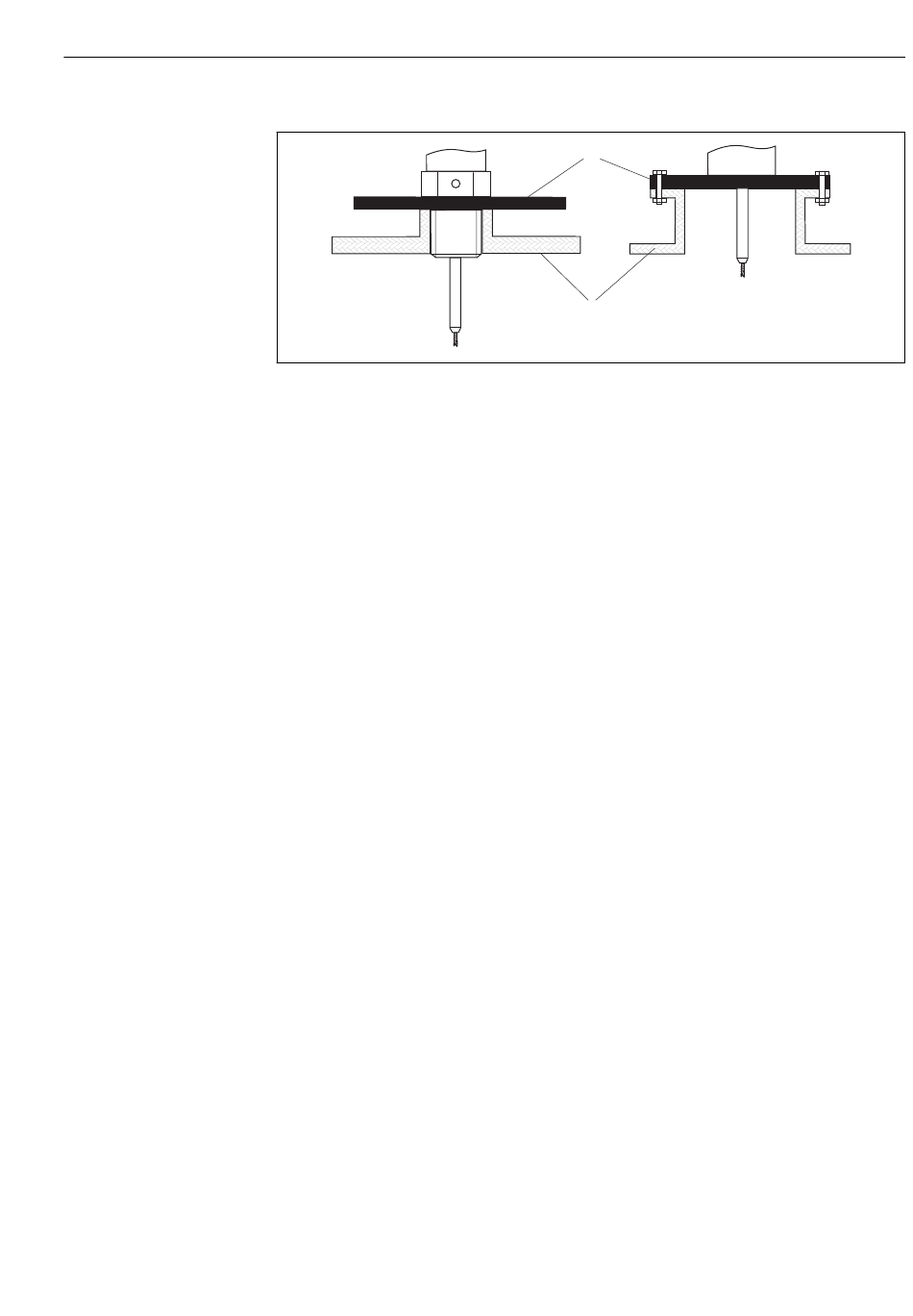

Non-metal vessels
1 Non-metal vessel
2 Metal sheet or metal flange
To ensure good measurement results when mounting on non-metal vessels
• Use a device with a metal flange (minimum size DN50/2").
• Alternatively: at the process connection, mount a metal sheet with a diameter of at least
200 mm (8 in) at a right angle to the probe.
2
1
Mounting
