Part 11: Power Supply

The AC7200 FPGA core board is powered by DC5V via carrier board, and
it is powered by the J3 interface when it is used alone. Please be careful not to
supply power by the J3 interface and the carrier board at the same time to
avoid damage. The power supply design diagram on the board is shown in
Figure 11-1.

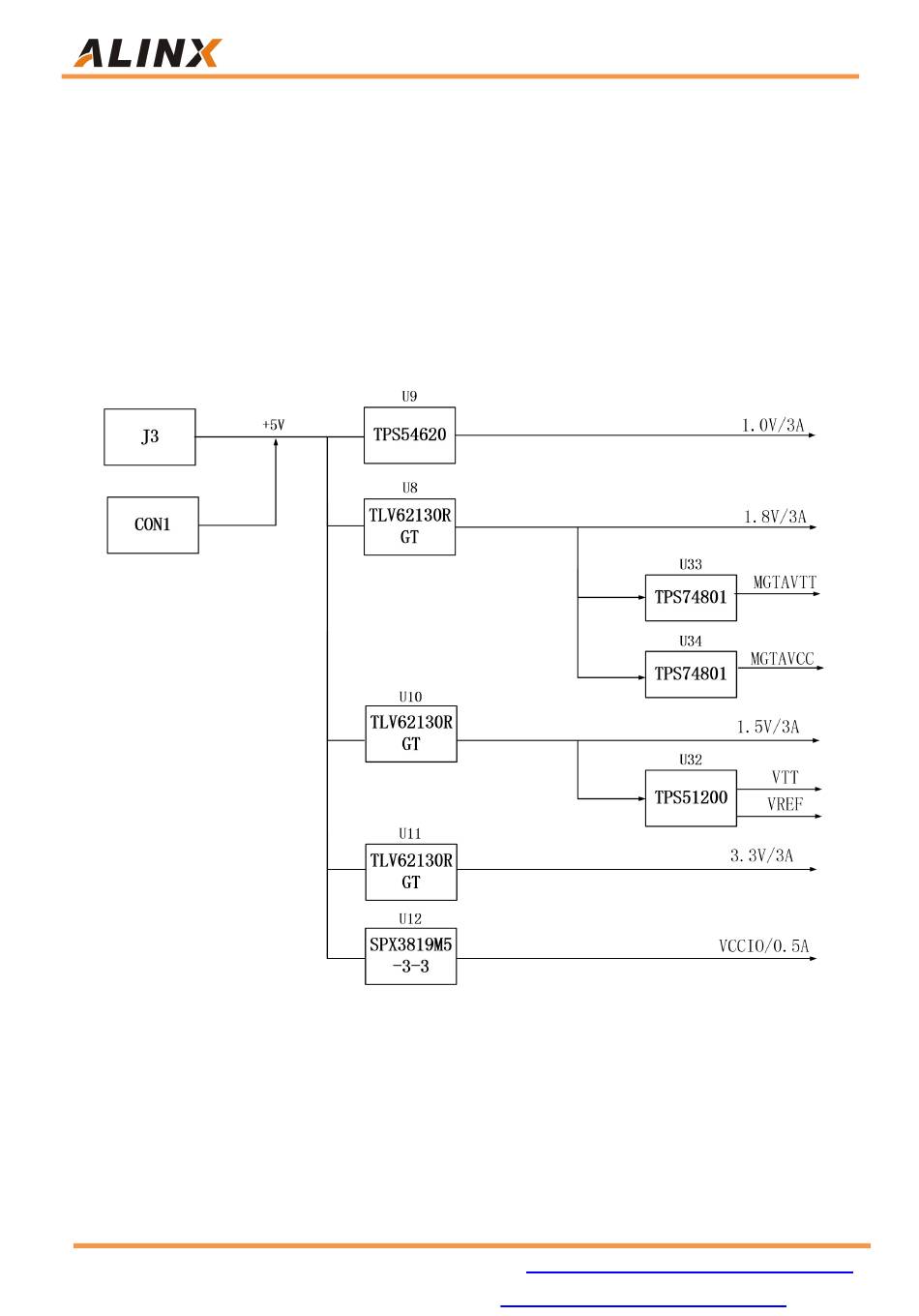

Figure 11-1：Power Supply on core board schematic
The development board is powered by +5V and converted to +3.3V, +1.5V,
+1.8V, +1.0V four-way power supply through four DC/DC power supply chip
TLV62130RGT. The output current can be up to 3A per channel. VCCIO is
28 / 30
ARTIX-7 SoM FPGA Core Board AC7200 User Manual
