Introduction
1
21
20
19
15
14
13
12
1 Local control panel (LCP)
2 Active filter card (AFC)
3 Mains contactors
4 Soft charge resistors
5 RFI differential mode filter
6 RFI common mode filter
7 Current transformer (CT)
8 Mains bus bars to drive output
9 AC capacitors
10 RFI
11 Lower DC capacitor bank

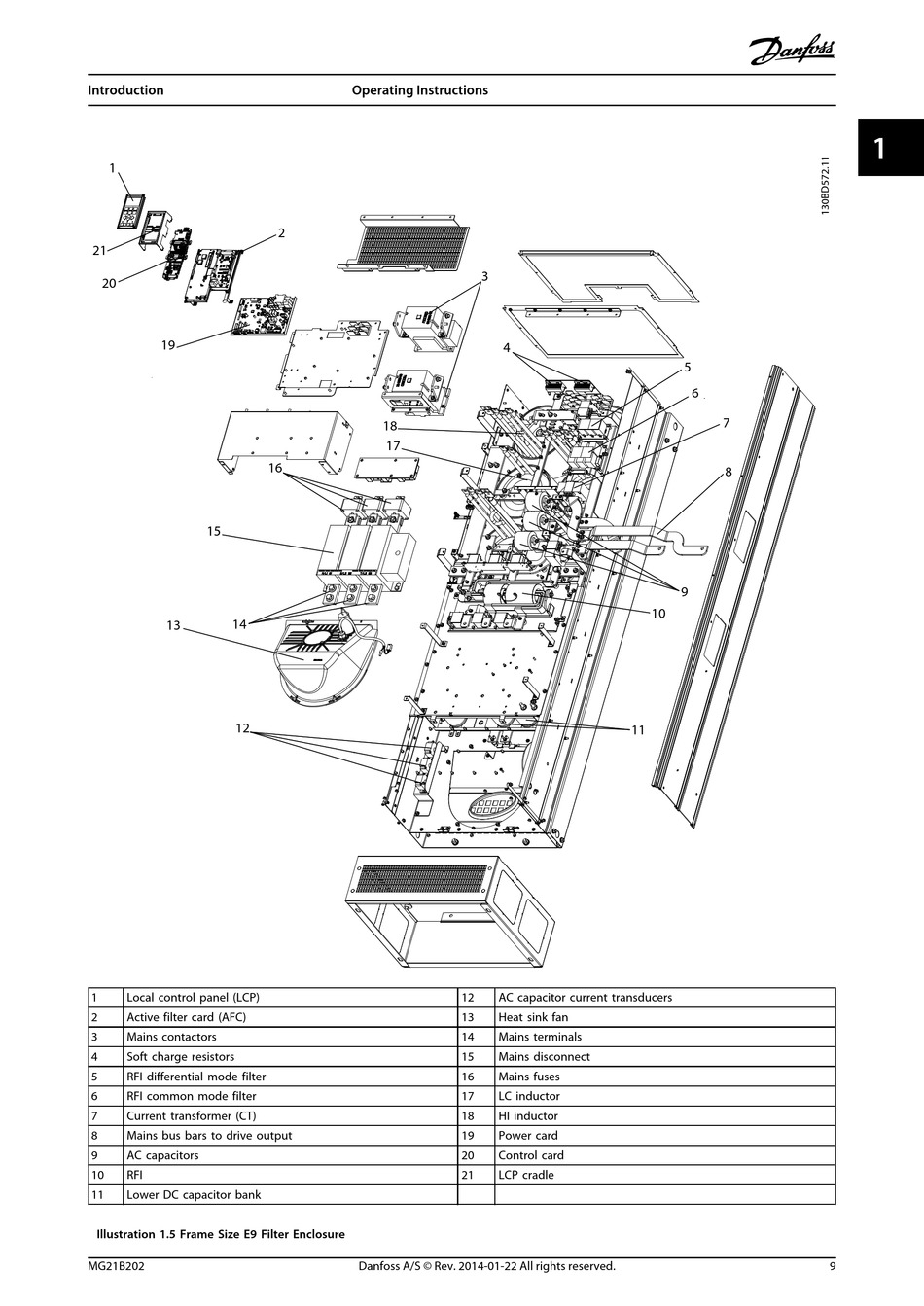

Illustration 1.5 Frame Size E9 Filter Enclosure
MG21B202
Operating Instructions
2
18
17
16
Danfoss A/S © Rev. 2014-01-22 All rights reserved.
3
4
11
12 AC capacitor current transducers
13 Heat sink fan
14 Mains terminals
15 Mains disconnect
16 Mains fuses
17 LC inductor
18 HI inductor
19 Power card
20 Control card
21 LCP cradle
5
6
7
8
9
10
1 1
