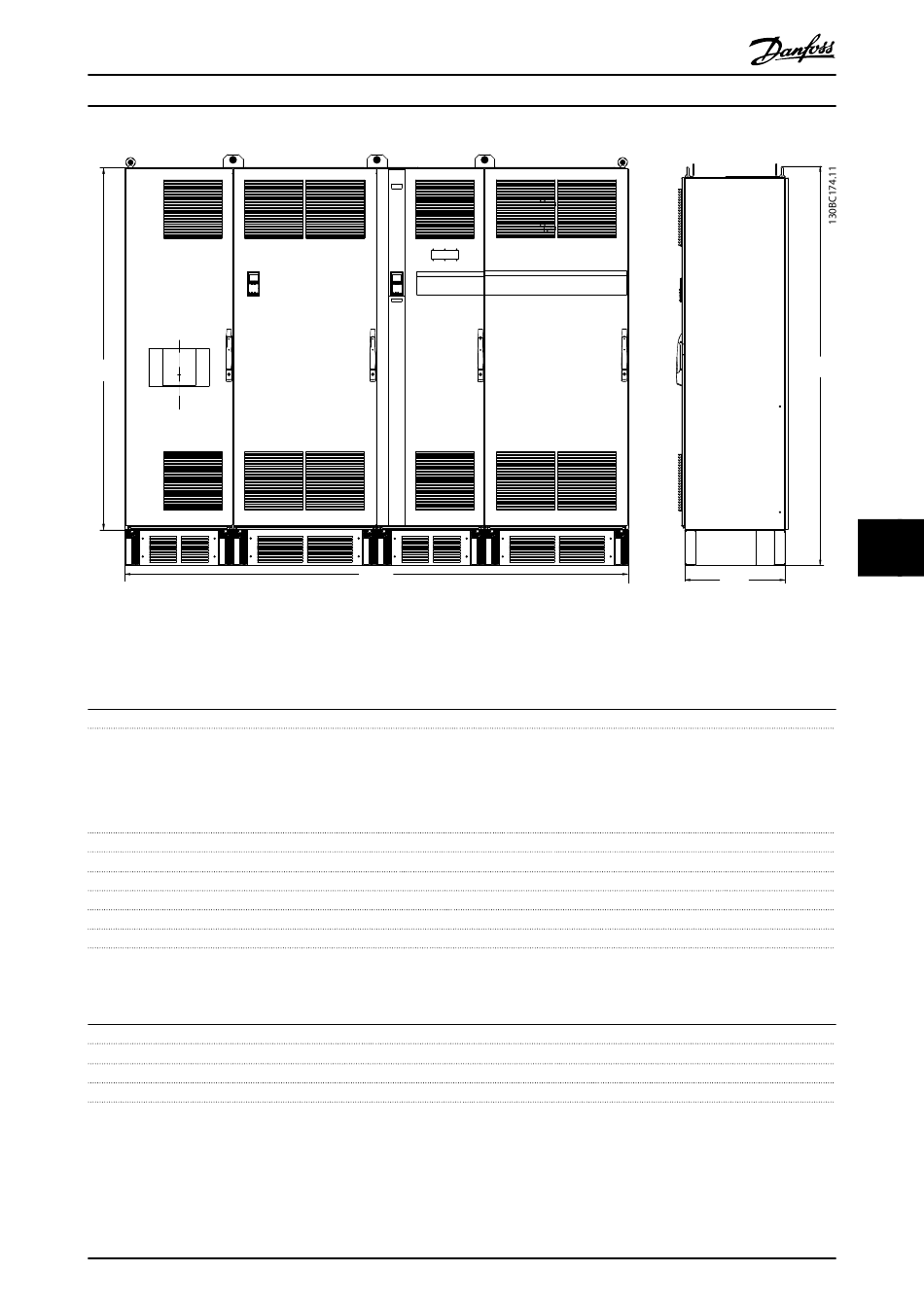

Illustration 8.4 Frame Size F18, Front and Side View

8.3 General Technical Data - Frequency Converter

Mains supply (L1, L2, L3)
Supply voltage
Mains voltage low/mains drop-out:
During low mains voltage or mains drop-out, the frequency converter continues until the intermediate circuit voltage drops
below the minimum stop level, corresponding to 15% below the lowest rated supply voltage. Power up and full torque cannot be
expected at mains voltage lower than 10% below the lowest rated supply voltage.
Supply frequency
Max. imbalance temporary between mains phases
True power factor (λ)
Displacement power factor (cosφ) near unity
THiD
Switching on input supply L1, L2, L3 (power-ups)
Environment according to EN60664-1
The unit is suitable for use on a circuit capable of delivering not more than 100.000 RMS symmetrical Amperes, 480/690 V
maximum.
Motor output (U, V, W)
Output voltage
Output frequency
Switching on output
Ramp times
1) Voltage and power dependent
MG21B202
Operating Instructions
2792.0
[110]
Danfoss A/S © Rev. 2014-01-22 All rights reserved.
605.8
[24]
380–480 V +5%
50/60 Hz ±5%
3.0% of rated supply voltage
> 0.98 nominal at rated load
maximum once/2 min.
overvoltage category III/pollution degree 2
0-100% of supply voltage
2278.4
8 8
(> 0.98)
< 5%
1)
0-590 Hz
Unlimited
0.01-3600 s
81
