Mechanical Installation

3.4.7 Torque

Correct torque is imperative for all electrical connections.
Incorrect torque results in a bad electrical connection. Use
a torque wrench to ensure correct torque.
Nm/in-lbs

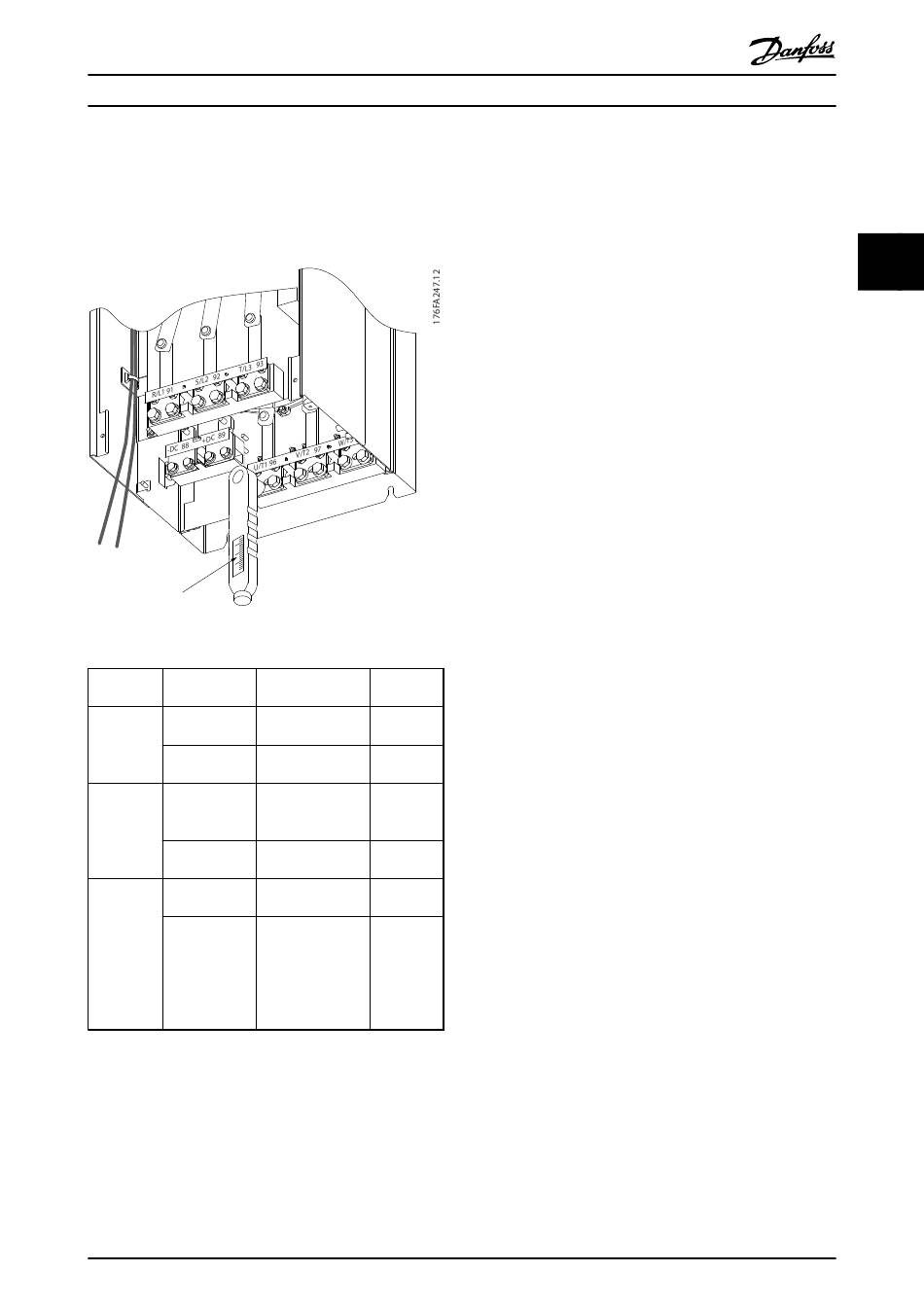

Illustration 3.18 Use a Torque Wrench to Tighten the Bolts
Frame size
Terminal
Torque [Nm] (in-
lbs)
Mains
19–40
Motor
(168–354)
D
Load sharing
8.5–20.5
Brake
(75–181)
Mains
19–40
Motor
(168–354)
E
Load sharing
8.5–20.5
Brake
(75–181)
Mains
19–40
Motor
(168–354)
19–40
Load sharing
(168–354)
F
8.5–20.5
Brake
(75–181)
8.5–20.5
Regen
(75–181)
Table 3.2 Torque for Terminals
MG21B202
Operating Instructions
Bolt size
M10
M8
M10
M8
M10
M10
M8
M8
Danfoss A/S © Rev. 2014-01-22 All rights reserved.
3
3
27
