Electrical Installation
When screened/armoured cable is not used, at least 3
separate conduits are connected to the panel option (see
Illustration 4.5).
Stop
Start
Line
Speed
Power
Control

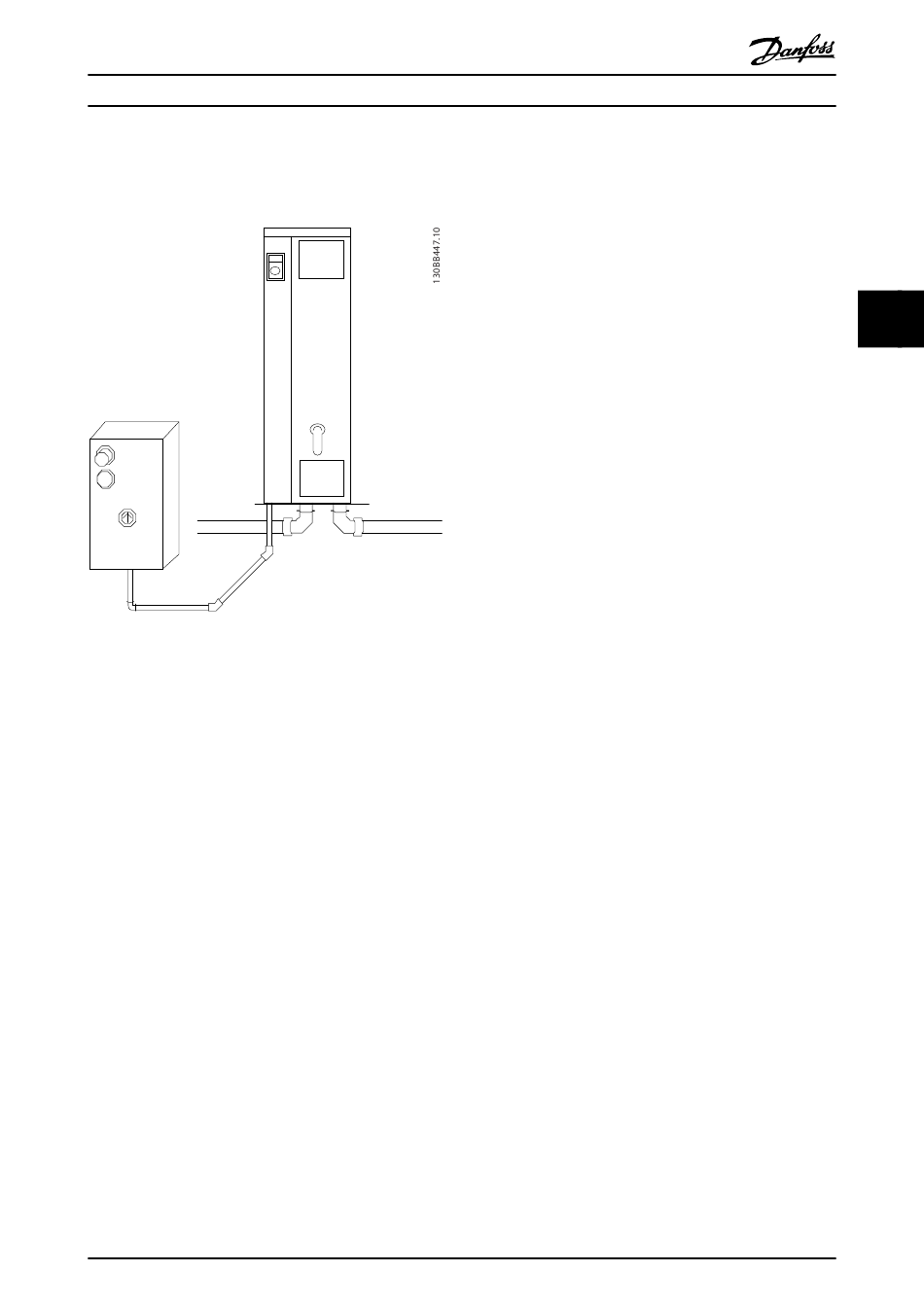

Illustration 4.5 Proper Electrical Installation Using Conduit
MG21B202
Operating Instructions
Motor
Separate Conduit
Danfoss A/S © Rev. 2014-01-22 All rights reserved.
4
