1.3.2 Working Principle

The VLT Low Harmonic Drive is a high-power frequency converter with an integrated active filter. An active filter is a device
that actively monitors harmonic distortion levels and injects compensative harmonic current onto the line to cancel the
harmonics.
Mains
Optional
Optional Optional
380 to
Manual
RFI Fuses
Disconnect
500 VAC

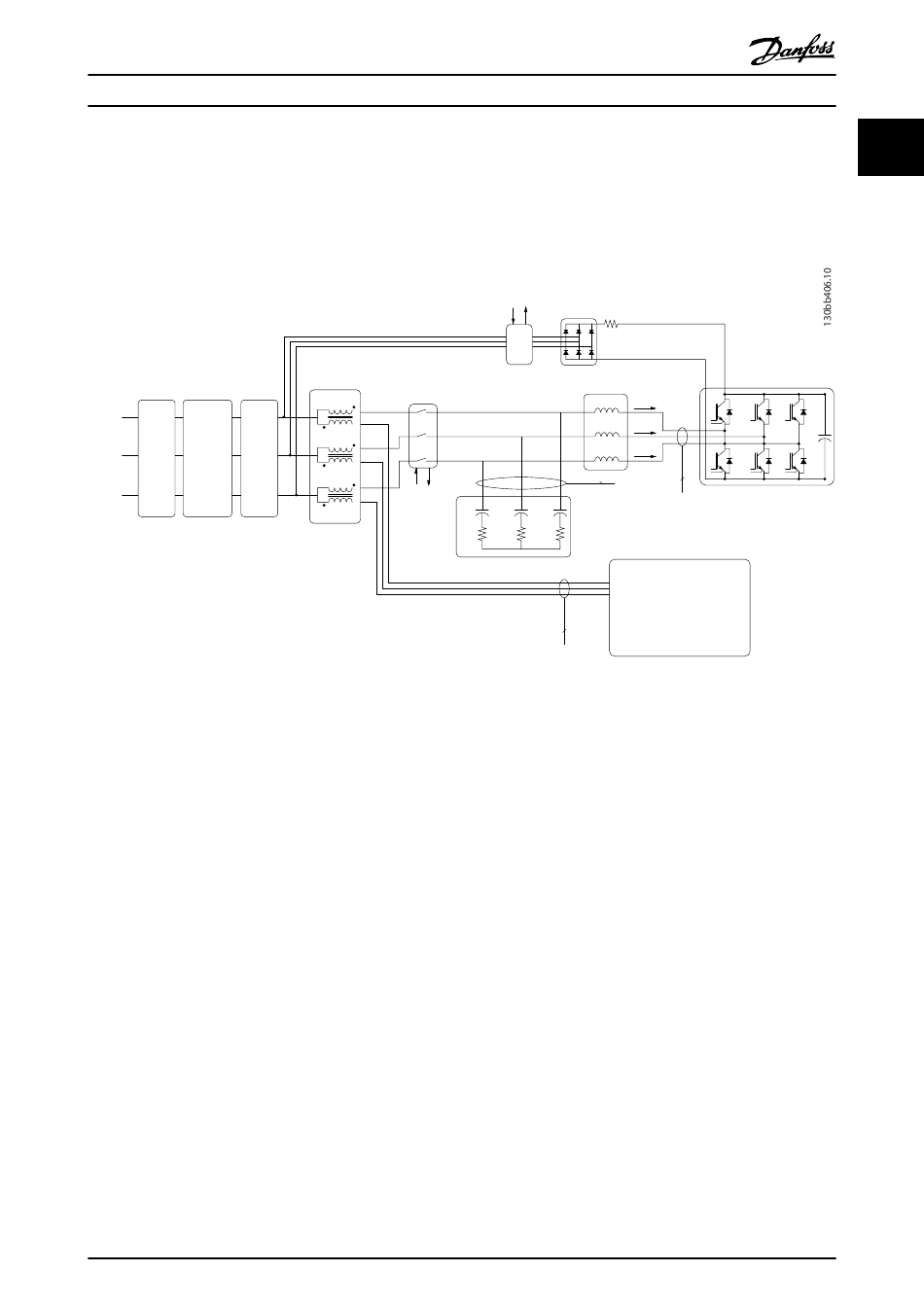

Illustration 1.1 Basic Layout for the Low Harmonic Drive
Low Harmonic Drives are designed to draw an ideal sinusoidal current waveform from the supply grid with a power factor
of 1. Where traditional non-linear load draws pulse-shaped currents, the Low Harmonic Drive compensates that via the
parallel filter path, lowering the stress on the supply grid. The Low Harmonic Drive meets the highest harmonic standards
with a THiD less than 5% at full load for <3% pre-distortion on a 3% unbalanced 3-phase grid.
