MultiVOIP Quick Start Guide

Remote Site Administrator

The following steps are for MultiVOIP 200 H.323 endpoints.
For non-MultiVOIP 200 H.323 endpoints, refer to the
appropriate installation documentation.
1. Unpack your MultiVOIP 200.
2. Connect one end of the power supply to a live AC outlet
and connect the other end to the Power connection on
your MultiVOIP 200 (See Figure 5).
PSTN
3. Connect a network cable to the ETHERNET 10Base-T
(RJ-45) connector on the back of your MultiVOIP 200.
4. If you are connecting a station device (e.g., analog
telephone, fax machine, or Key Telephone System (KTS)
to your MultiVOIP 200, connect the smaller end of a
special adapter cable (supplied) to the Voice/Fax Channel
1 FXS connector on the back of the MultiVOIP 200 and the
other end to the station device.
If you are connecting a PBX extension to your MultiVOIP
200, connect the smaller end of a special adapter cable
(supplied) to the Voice/Fax Channel 1 FXO connector on
the back of the MultiVOIP 200 and the other end to the
PBX extension.
62
Voice/Fax Channel
Connections
E&M FXO FXS
E&M FXS
FXO

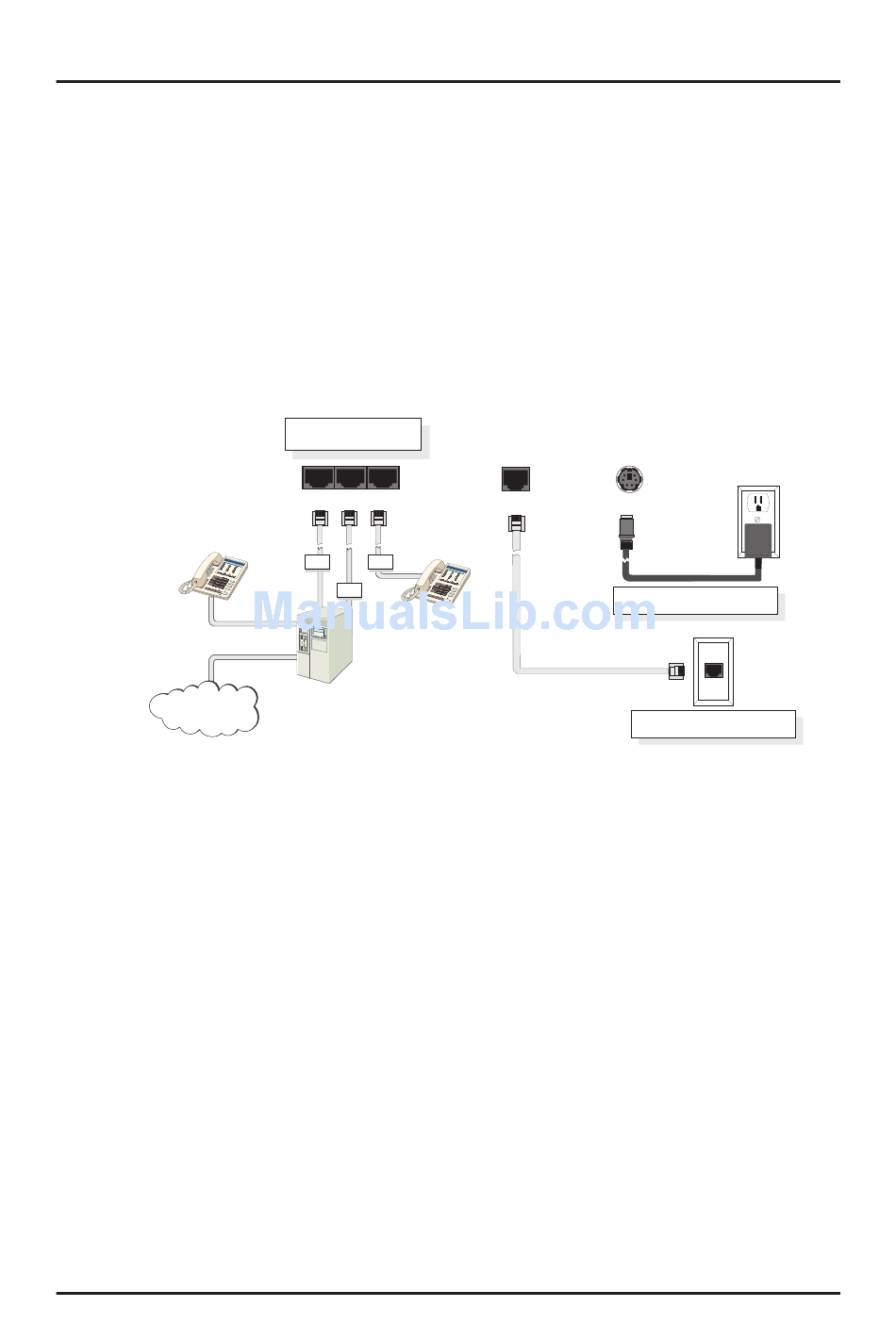

Figure 5. Remote Site Cable Connection
10BASET
ETHERNET
POWER
Power Connection
Ethernet Connection
