MultiVOIP Quick Start Guide
Configuring Your Client MultiVOIP 200s
If the Proprietary Phonebook option on the Phone Directory
Database dialog box was enabled, then you will need to
configure all remote H.323 endpoints as "Client" units. For
example, the MultiVOIP 200 at the company's subsidiary office
in London would need to be configured as a "Client.".
CAUTION: If you are installing a MultiVOIP 200 behind a
Firewall, the Firewall must support H.323. Refer to your
Firewall user documentation to enable H.323 support.
1. Disconnect the PC from the Command port of the Host
MultiVOIP 200 and connect it to the Command port on the
Client MultiVOIP 200.

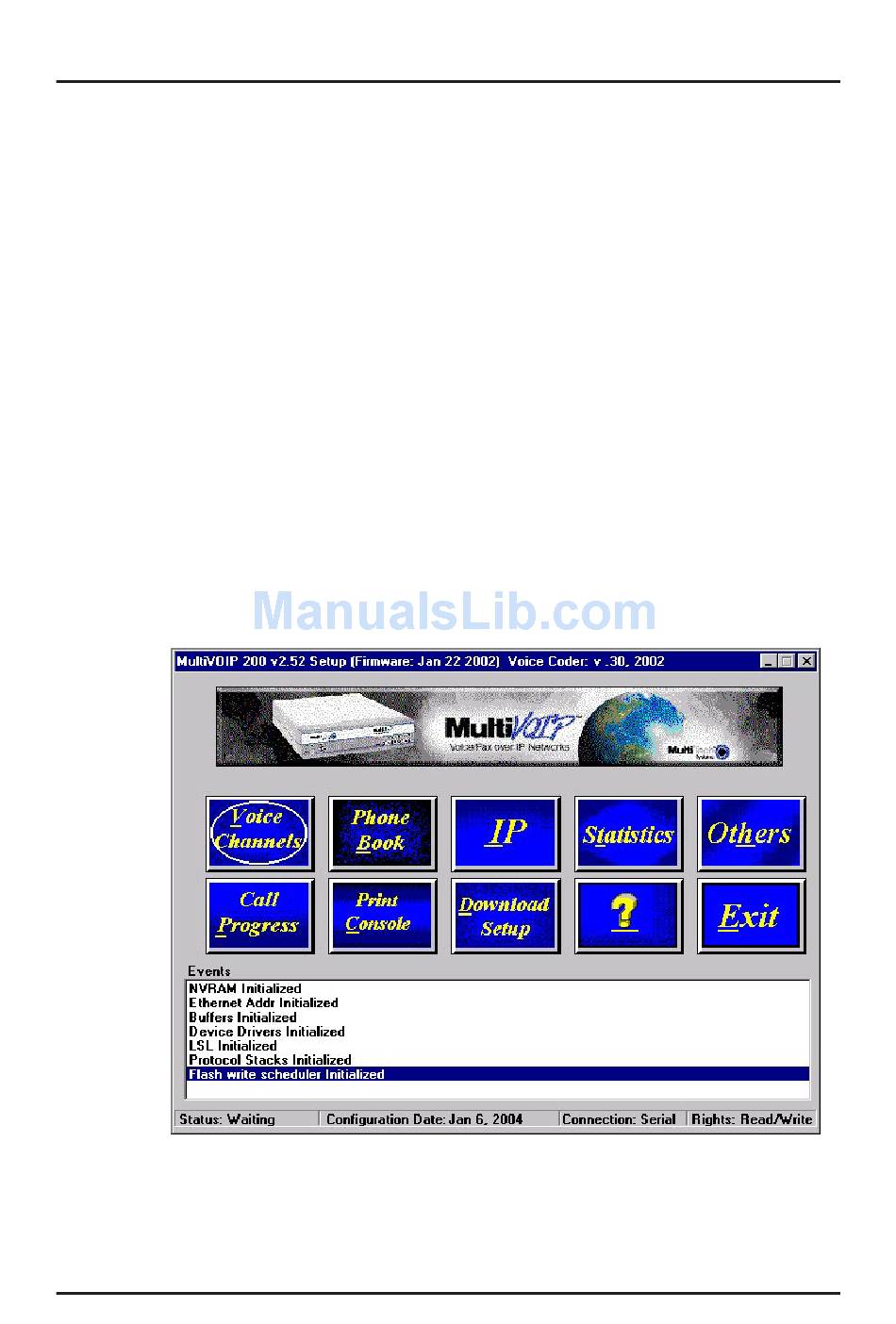

2. From your desktop, click Programs I MultiVOIP 200 I
MultiVOIP 200 Configuration. The Main menu is
displayed.
3. Click IP to display the IP Setup dialog box.
48
