MultiVOIP Quick Start Guide
4. Change the jumper block position for any voice/fax
channel to be connected to an E&M trunk that is not a
Type 2 (the default position).
5. Slide the base all the way into the cabinet until it stops.
6. Turn the MultiVOIP 200 upside down and replace the
cabinet mounting screw that was removed in step 2.

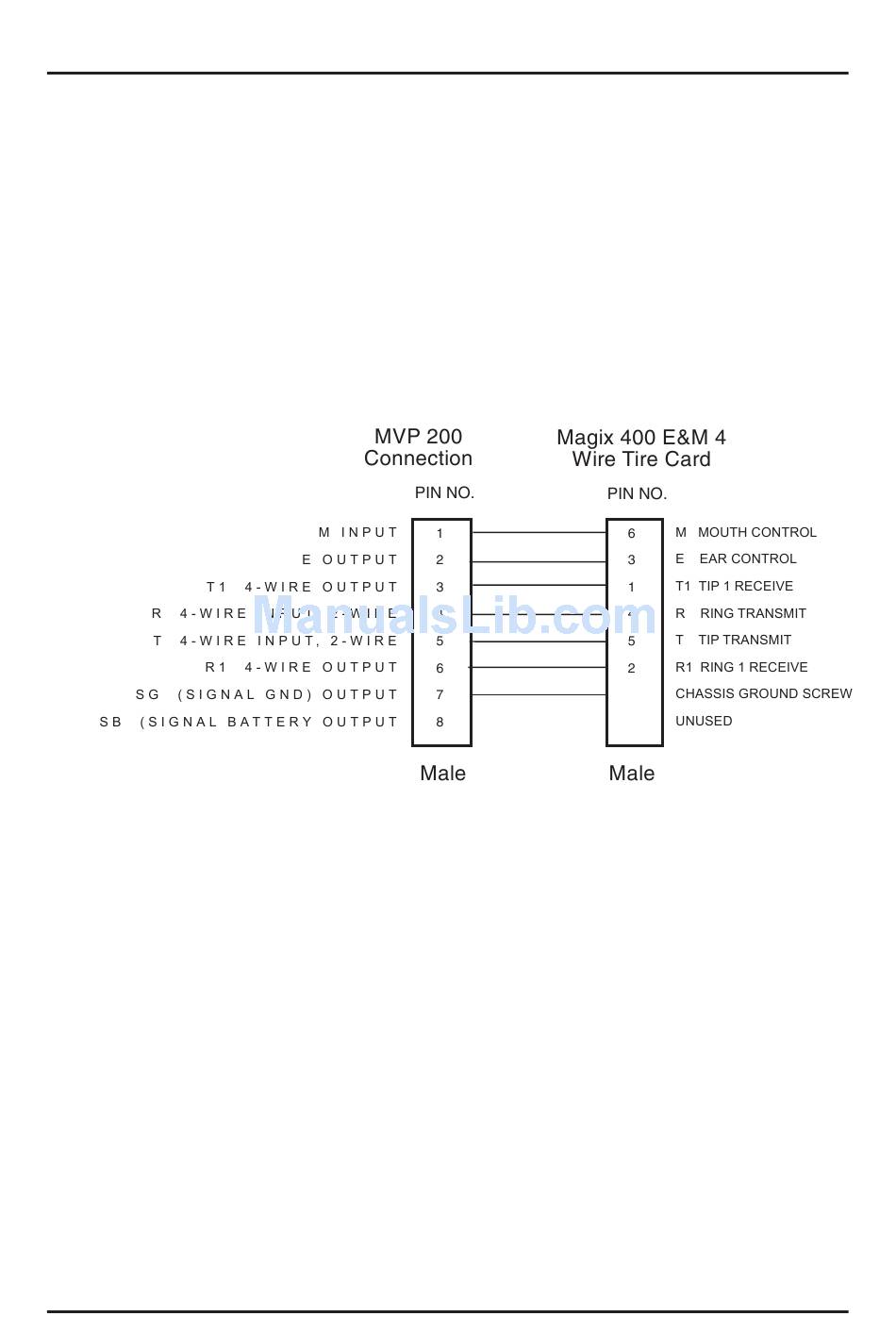

7. If you are using a Magix 400 E&M Tie Card, connect the
ground pin to the chassis ground screw as shown.
8. Return the MultiVOIP 200 to its upright position, then
perform the cabling procedure.
12
