MultiVOIP Quick Start Guide

Configuring Your MultiVOIP 200

The following steps provide instructions for configuring your
MultiVOIP 200. The configuration sequence includes IP
Protocol default setup, Channel setup, and Phone Directory
Database setup. The Phone Directory Database setup is
configured differently depending on whether or not the
Gatekeeper function is available and enabled on the Phone
Directory Database dialog box.

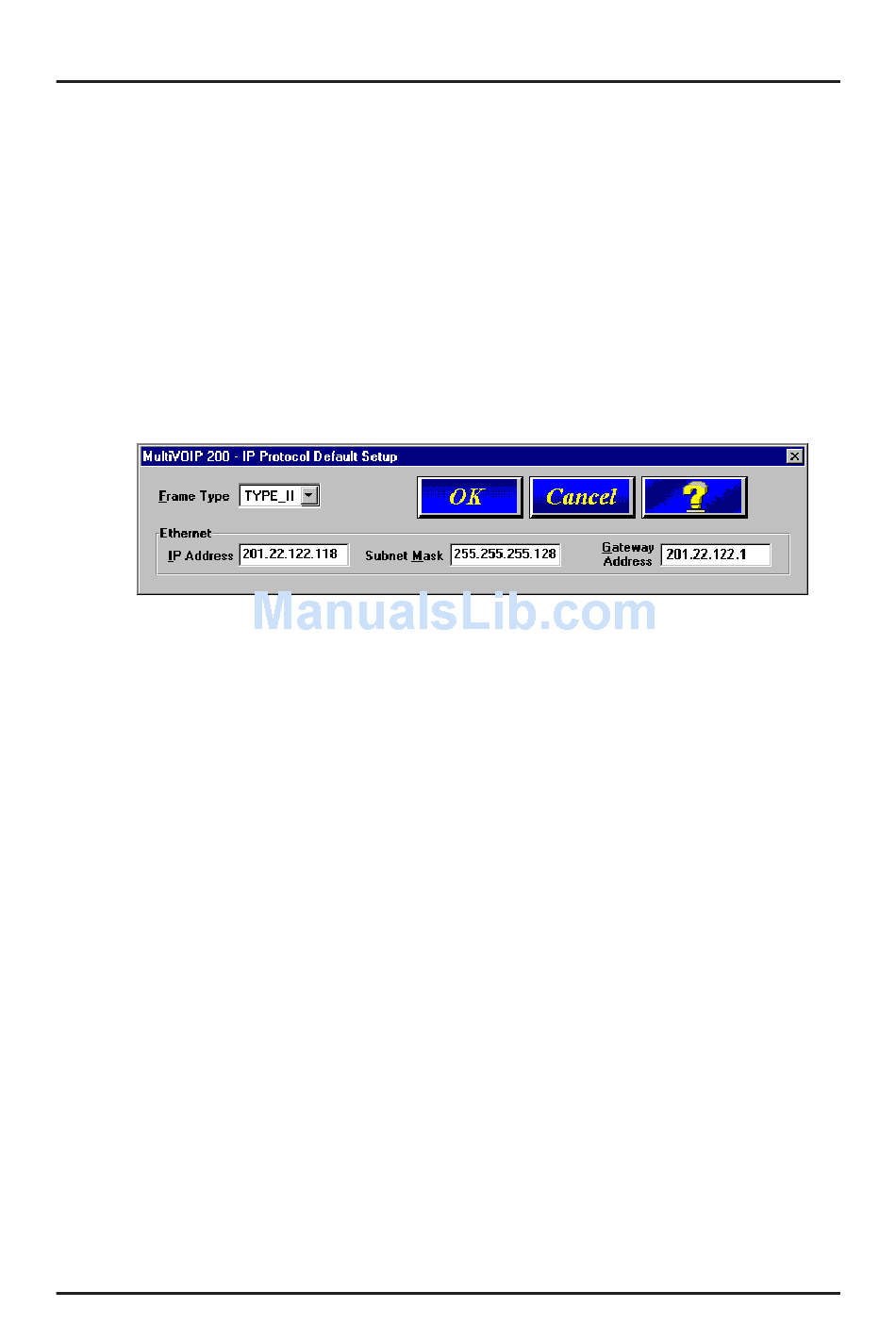

11. The IP Protocol Default Setup dialog box is displayed.
The default Frame Type is TYPE_II. If this does not match
your IP network, change the Frame Type by clicking the
drop-down arrow and selecting SNAP. The available Frame
Type choices are TYPE_II and SNAP.
12. In the Ethernet group, enter the IP Address, Subnet
Mask, and Gateway Address unique to your IP LAN in
the corresponding fields.
The IP address is the unique LAN IP address that is
assigned to the MultiVOIP 200, and the Gateway address
is the IP address of the device connecting your MultiVOIP
200 to the Internet.
Click OK when you are finished.
13. The Channel Setup dialog box is displayed. The four tabs
in this dialog box define the channel interface, voice/fax
parameters, billing/miscellaneous parameters, and
regional telephone parameters for each channel.
18
