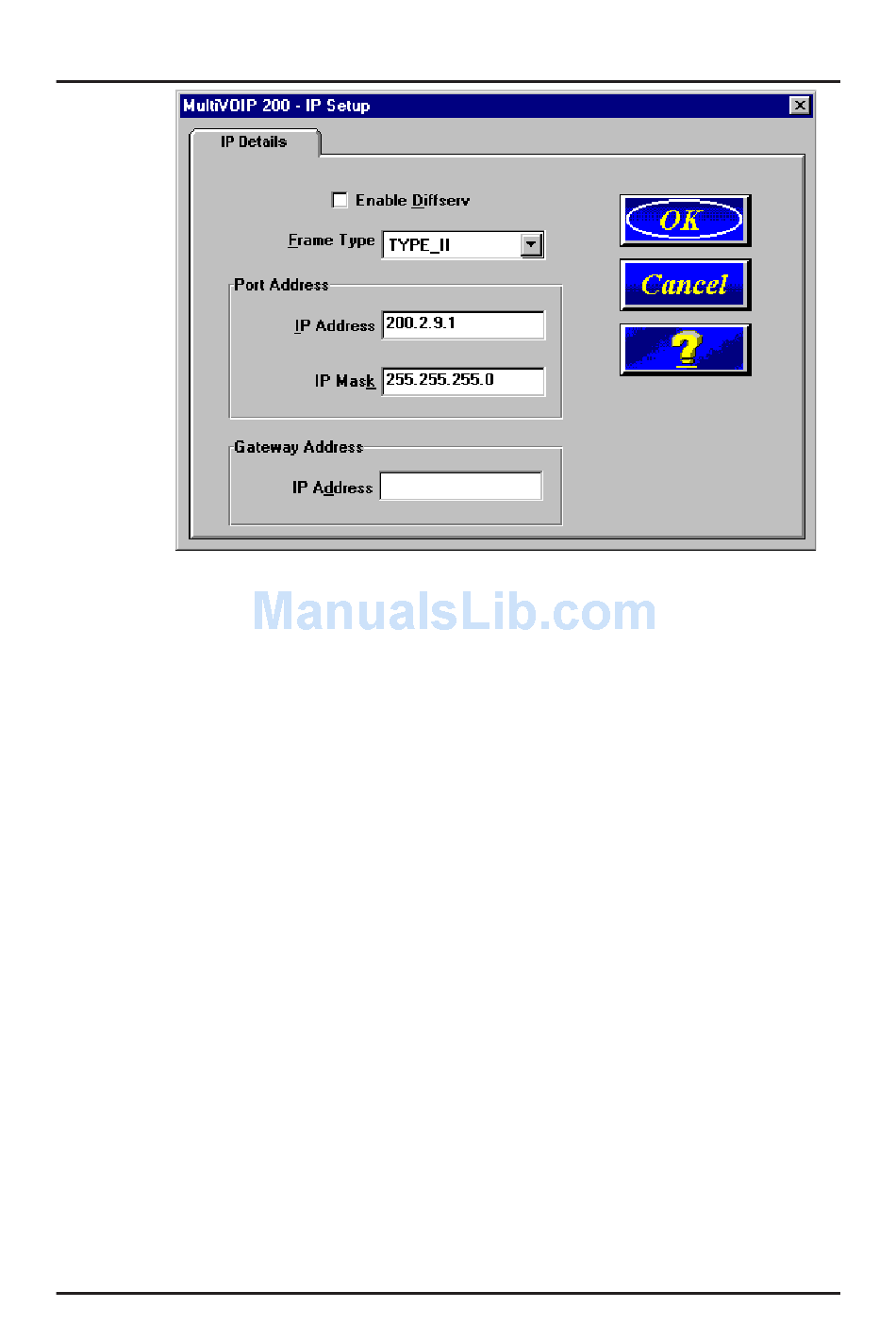

Click (check) the Enable Diffserv box if you have routers
that support Diffserv (sometimes called IP Precedence).
This feature gives priority to voice packets so they are not
delayed because of large data files being downloaded.
The default Frame Type is TYPE_II. If this does not match
your IP network, change the Frame Type by clicking on the
drop-down arrow. The Frame Type choices are TYPE_II
and SNAP.
4. In the Port Address group, enter the IP Address and IP
Mask. In the Gateway Address group, enter the gateway
IP address for the Client unit.
The IP Address is the unique IP address that you assign to
the MultiVOIP 200, and the Gateway Address is the IP
address of the device (e.g., network router) connected to
the Internet/Intranet.
Click OK when you are finished. The Main menu is
displayed.
5. From the Main menu, click Voice Channels to display the
Configuring MultiVOIP Slaves
49
