Cabling Your MultiVOIP 200

Cabling your MultiVOIP 200 involves making the proper Power,
Command Port, and Internet connections. Figure 6 shows the
back panel connectors and the associated cable connections.
The Cabling Procedure section provides step-by-step
instructions for cabling your MultiVOIP 200.
Note: Before cabling your MultiVOIP 200, perform the E&M
Jumper Block Positioning Procedure if either voice/fax channel
(1 or 2) will be connected to an E&M trunk that is a Type 1,3, 4,
or 5 rather than a Type 2 (the default).

Cabling Procedure

1. Using the supplied cable, connect the power supply to a
live AC outlet, then plug the power supply into the
MultiVOIP 200 as shown in Figure 3. The power connector
is a 6-pin circular DIN connector.
PSTN
2. Connect the MultiVOIP 200 to a PC using the RJ-45 to
DB9 (female) cable provided with your unit. Plug the RJ-45
end of the cable into the Command port of the MultiVOIP
200 and connect the other end to the PC's serial port
(Figure 3).
Voice/Fax Channel
1 & 2 Connections
E&M FXO
FXS
PBX

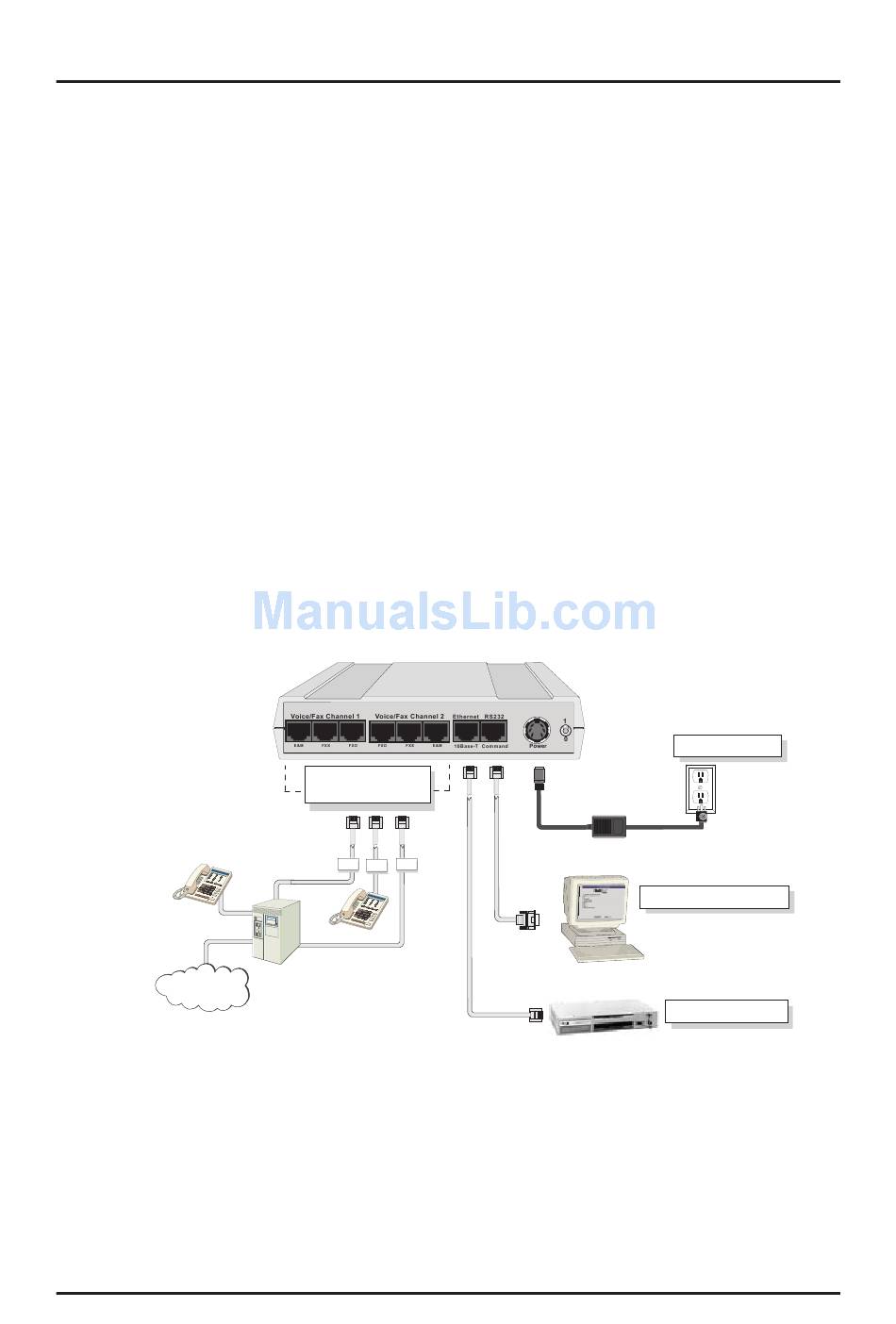

Figure 3. Cable Connections
Cabling
Power Connection
Command Port Connection
Network Connection
Hub
