Chapter 1 - Introduction and Description

Back Panel Description

The cable connections for the MVP110 are made at the back panel. Connectors include Power,

Command Port (RJ-45), Ethernet, and Voice/Fax Channel. The cable connectors are shown in Figure

1-5 and defined in the following groups.

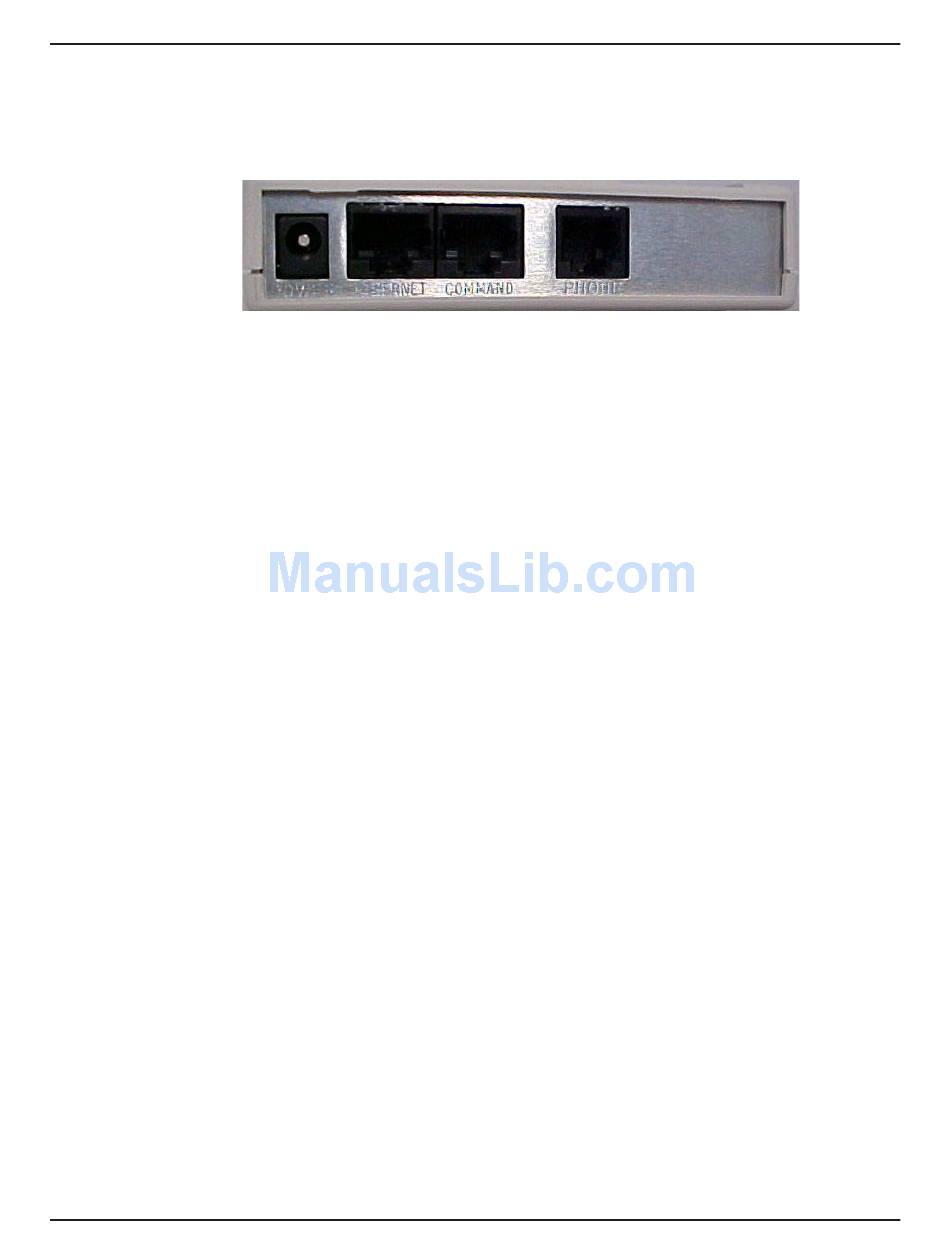

Figure 1-5. Back Panel

The Power connector is used to connect the external power supply to the MVP110.

The Command connector is used to configure the MVP110 using a PC with an available serial port

and running Windows software. The Command connector is an RJ-45 jack (an adapter cable is

provided to convert to a standard serial port DB9 female connector).

The Ethernet connector is used to connect the MVP110 to a LAN using unshielded twisted cable.

This connector is an RJ-45 jack.

Connects the Voice/Fax Channel to a station device such as an analog phone, a KTS (Key

Telephone System) phone system, or a fax machine. This connector is an RJ-11 jack.
