Chapter 4 - MultiVOIP Software
defined by the Gatekeeper. The registration method is determined by the Gatekeeper administrator
and will require communication with each endpoint in order to develop the H.323 compatiable
network.

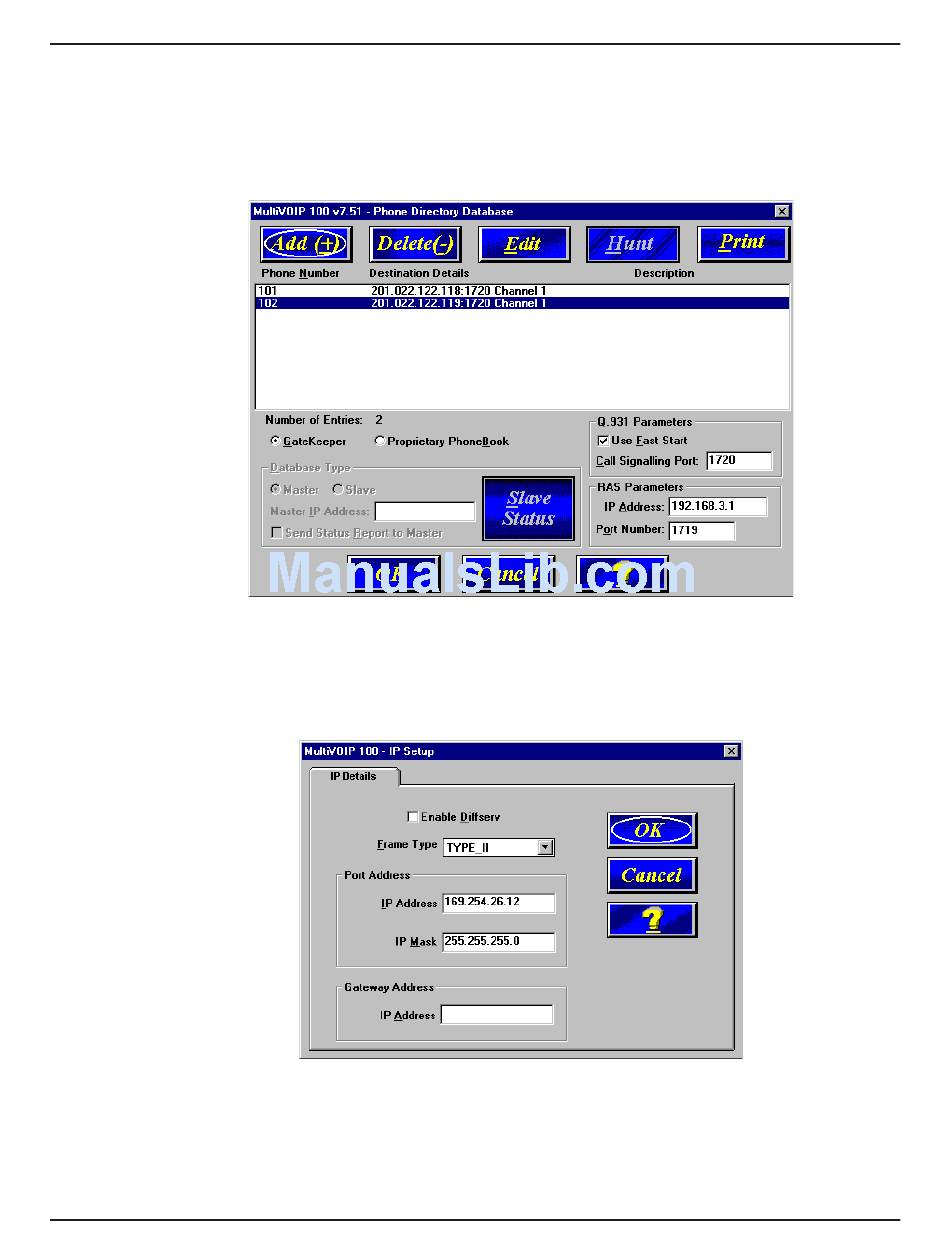

The Phone Directory Database for the local unit contains the local phone numbers, destination details
of the IP address, port number, and channel number of the local unit. The description is the same as
the entry in the H323 ID entry in the Add/Edit Phone Entry dialog box.

Changing IP Parameters

The IP Setup dialog box establishes the IP address for the local Ethernet LAN and defines the
Internet gateway address. The IP Setup dialog box is accessed by clicking IP on the MVP110 Main
menu.
With IP Setup dialog box displayed you can change the status of differentiated services, the Ethernet
Frame Type, the IP address and IP Mask of your H.323 endpoint, and the Gateway Address of the IP
address of the device connected to the Internet.
Selecting the Enable Diffserv check box enables Differentiated Services. Differentiated Services
provides priority to voice packets so that they are not delayed whenever large data files need to be
downloaded. Check with your systems administrator to determine if any routers in the VOIP network
52
