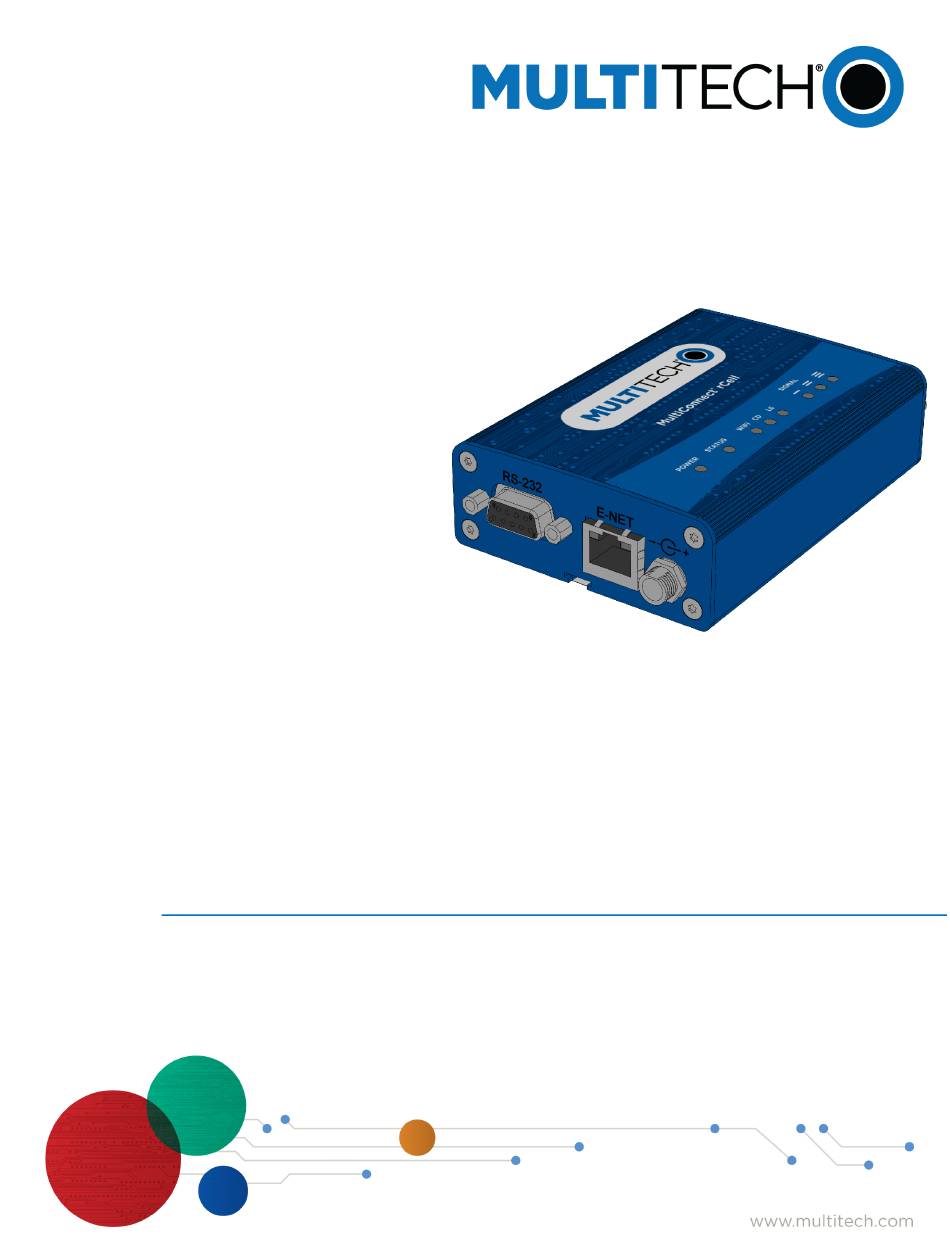

- Page 1 ® MultiConnect rCell 100 Series Router LTE Cat 4 MTR-LEU7 Hardware Guide...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
CONTENTS Contents Chapter 1 – Product Overview ..........................5 About MultiConnect rCell 100 Series Router........................ 5 Documentation ................................5 Dimensions..................................6 Descriptions of LEDs..............................7 Ethernet LED Descriptions ............................7 Side Panel Connectors ..............................9 Product Build Options ..............................10 MTR-LEU7 Specifications............................. - Page 4 CONTENTS Waste Electrical and Electronic Equipment Statement ....................21 WEEE Directive................................21 Instructions for Disposal of WEEE by Users in the European Union ................ 21 Information on HS/TS Substances According to Chinese Standards ................. 22 Information on HS/TS Substances According to Chinese Standards (in Chinese) ............23 ®...
-
Page 5: Chapter 1 - Product Overview
Chapter 1 – Product Overview About MultiConnect rCell 100 Series Router This guide describes the MultiConnect rCell 100 Series Router. Use this product to provide secure data communication between many types of devices that use legacy and the latest communication technologies. The device has an integrated cellular modem and includes 10/100 BaseT Ethernet and RS-232 serial connectivity. -
Page 6: Dimensions
PRODUCT OVERVIEW Dimensions ® MultiConnect rCell 100 Series Router LTE Cat 4 MTR-LEU7 Hardware Guide... -
Page 7: Descriptions Of Leds

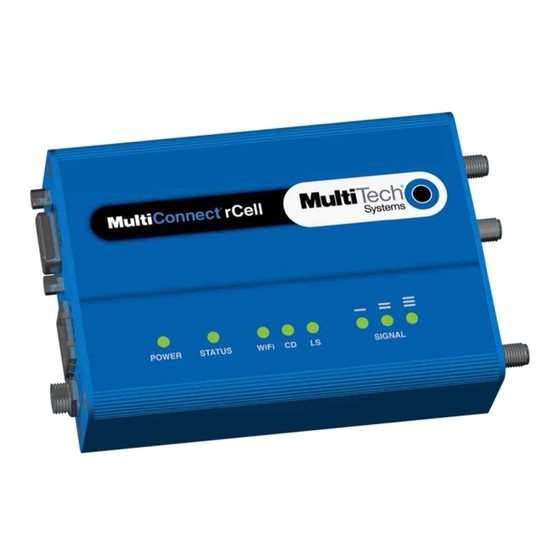

PRODUCT OVERVIEW Descriptions of LEDs The top panel contains the following LEDs: Power and Status LEDs—The Power LED indicates that DC power is present and the Status LED blinks when the unit is functioning normally. Wi-Fi—Indicates if the device is serving as a Wi-Fi access point or acting as a Wi-Fi client. Not all models support Wi-Fi. - Page 8 PRODUCT OVERVIEW Ethernet Link Right LED on Ethernet connector. Blinks when there is transmit and receive activity on the Ethernet link. It shows a steady light when there is a valid Ethernet connection. Ethernet Speed Left LED on Ethernet connector. Lit when the Ethernet is linked at 100 Mbps. If it is not lit, the Ethernet is linked at 10 Mbps.
-
Page 9: Side Panel Connectors
PRODUCT OVERVIEW Side Panel Connectors The device has connectors on both sides of the housing. The right side of the device contains a SIM card holder, a reset button, a Wi-Fi/Bluetooth, GPS, and cellular antenna connector. Depending on the model of your device, the GPS and/or Wi-Fi connectors may or may not be present. -
Page 10: Product Build Options
PRODUCT OVERVIEW Product Build Options Product Description Carrier/Region MTR-LEU7-B10 Cat. 4 LTE Router Cellular/WiFi/BT/GPS Europe/UK MTR-LEU7-B07 Cat. 4 LTE Router Cellular Europe/UK MTR-LEU7 Specifications Category Description General Standards LTE FDD Cat 4, 3GPP release 11 compliant WCDMA/GSM fallback Frequency Bands LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: 900/1800MHz... -
Page 11: Transmission Output Power
PRODUCT OVERVIEW Category Description Physical Description Dimensions 4.17” x 3.0” x 1.15” (10.6cm x 7.6cm x 2.9cm) Weight 0.51 lbs (0.231 Kg) Chassis type Aluminum Environment Operating Temperature -40° to +80° C Storage Temperature -40° to +85° C Humidity Relative humidity 15% to 93% non-condensing Certifications, Compliance, Warranty Regulatory CE mark, RED (EU) -
Page 12: Power Draw
PRODUCT OVERVIEW Power Draw MTR-LEU7-B10 Power Draw Radio Protocol Average Measured TX Pulse (AVG) Total Inrush Charge Total Inrush Current (mA) at Amplitude Current for Measured in Charge Maximum Power Peak Current for Millicoulombs (mC) DURATION (mS) HSDPA/LTE during Powerup (INRUSH Duration) 9.0 Volts... -
Page 13: Chapter 2 - Safety Warnings
This battery has an estimated life expectancy of ten years. When this battery starts to weaken, the date and time may be incorrect. Battery is not user replaceable. If the battery fails, the device must be sent back to MultiTech Systems for battery replacement. -
Page 14: Vehicle Safety
Do not place the device alongside computer discs, credit or travel cards, or other magnetic media. The information contained on discs or cards may be affected by the device. Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant with MultiTech's accessory specifications may invalidate the warranty. -
Page 15: Precautions For Pacemaker Wearers
SAFETY WARNINGS Advancement of Medical Instrumentation (AAMI) standard. This standard allows manufacturers to ensure that cardiac pacemakers and defibrillators are safe from cellular device EMI. The FDA continues to monitor cellular devices for interactions with other medical devices. If harmful interference occurs, the FDA will assess the interference and work to resolve the problem. -
Page 16: Chapter 3 - Antenna Information
Chapter 3 – Antenna Information Antenna Devices were approved with the following antenna or for alternate antennas meeting the given specifications: Manufacturer: Wieson Description: LTE Antenna with SMA-Male Connector Model Number GY115IE002-001 MultiTech ordering information: Model Quantity ANLTE4-1HRA ANLTE4-2HRA ANLTE4-10HRA ANLTE4-50HRA Antenna Specifications Category... -
Page 17: Chapter 4 - Installing The Device
INSTALLING THE DEVICE Chapter 4 – Installing the Device Installing the Device To use the device’s cellular features, connect a suitable antenna to the CELL connector. Some devices support Wi-Fi. To use the device’s Wi-Fi access point features, install a suitable antenna to the Wi-Fi antenna connector on the device. -
Page 18: Resetting The Device
INSTALLING THE DEVICE Locate the SIM card slot on the side of the device. The slot is labeled SIM. Push the SIM card into the slot until it snaps into place. To remove the SIM, push the edge of the card in. When released, the card pops out of the device. Resetting the Device You need: A pin, paperclip, or similar thin object that can fit into the reset hole... -
Page 19: Restoring User Defined Settings To The Device
INSTALLING THE DEVICE Restoring User Defined Settings to the Device You can restore user defined settings to your device. You need: A pin, paperclip, or similar thin object that can fit into the reset hole Locate the hole in the panel labeled RESET. The reset button is recessed into the housing. Use the pin to press in the button for about 3 seconds and then release the reset button. -
Page 20: Chapter 5 - Regulatory Information
Council Directive 2014/53/EU on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. MultiTech declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be requested at https://support.multitech.com. -
Page 21: Reach Statement
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. -
Page 22: Information On Hs/Ts Substances According To Chinese Standards
REGULATORY INFORMATION Information on HS/TS Substances According to Chinese Standards In accordance with China's Administrative Measures on the Control of Pollution Caused by Electronic Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-Tech Systems Inc. -
Page 23: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)
REGULATORY INFORMATION Information on HS/TS Substances According to Chinese Standards (in Chinese) 依 依 照 照 中 中 国 国 标 标 准 准 的 的 有 有 毒 毒 有 有 害 害 物 物 质 质 信 信 息 息 根据中华人民共和国信息产业部...
