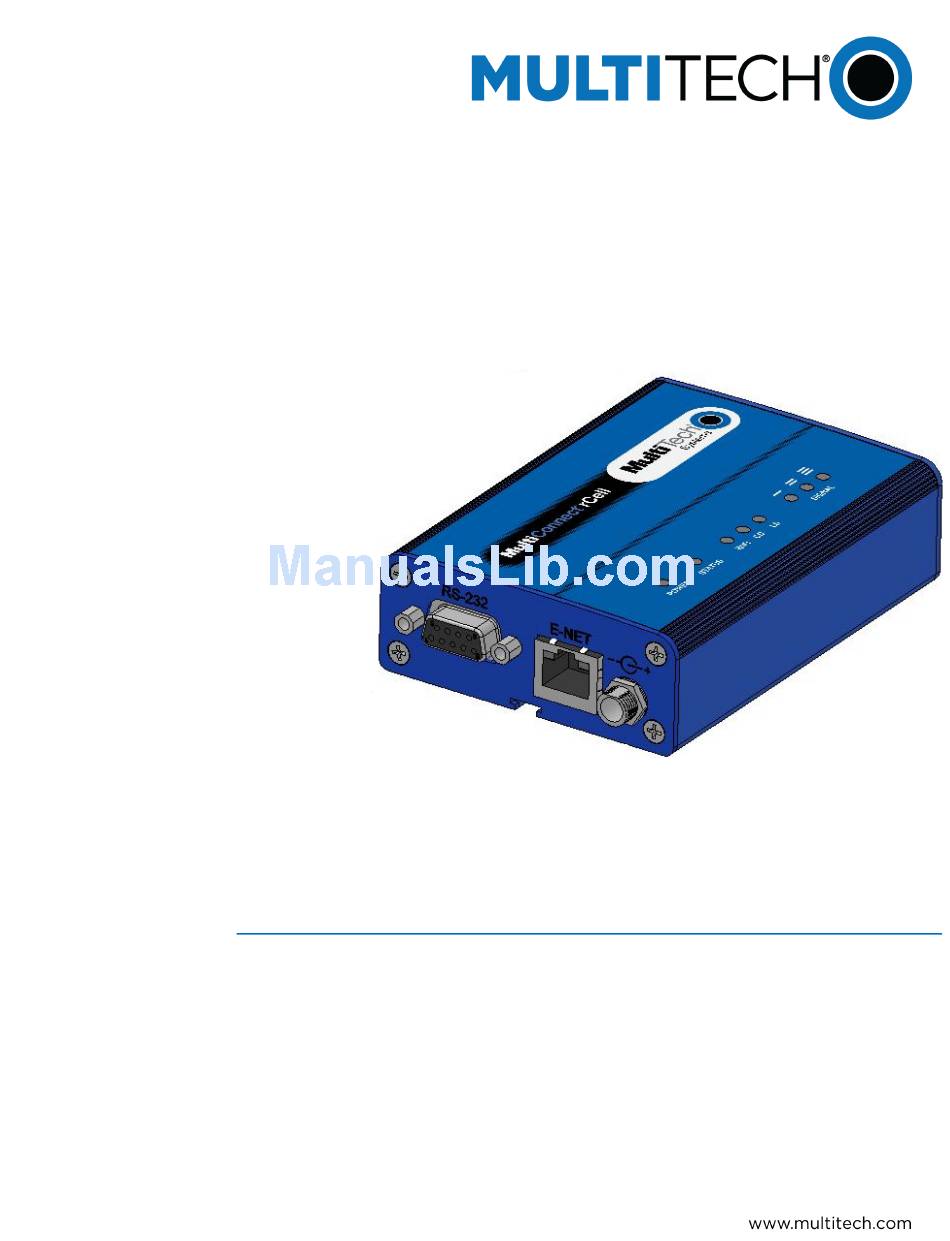

- Page 1 ® MultiConnect rCell 100 MTR-H5 User Guide...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
CONTENTS Contents Product Overview ..............................5 About MultiConnect rCell 100 Series Router........................ 5 Documentation ................................5 Product Build Options ..............................6 Descriptions of LEDs..............................7 Side Panels ..................................8 Ethernet LED Descriptions ............................9 Specifications ................................9 Dimensions.................................. 11 Label locations ................................11 Power Draw ................................ - Page 4 CONTENTS Mounting the Device..............................21 Activating the Account for Wireless Devices ......................21 Installing the SIM Card ............................... 21 Setting up Wi-Fi................................22 Resetting the Device ..............................22 Resetting the Device to Factory Defaults ........................22 Notice for Devices that Use Aeris Radios........................23 Regulatory Information............................
-
Page 5: Product Overview
1 Trimble GPS antenna 66800-52 and 1 Globtek GT-41052-1509 9V 1.7A power supply. Documentation The following table describes additional documentation for your device. The documentation is available on the Multi-Tech Installation Resources website at www.multitech.com/setup/product.go. Document Description User Guide This document. -
Page 6: Product Build Options
PRODUCT OVERVIEW Document Description AT Commands This document describes AT commands that are available for your device. These commands are documented in the Reference Guide part number S000574. Product Build Options Product Description MTR-H5-B07 Supports HSPA+ MTR-H5-B08 Supports HSPA+ and GPS MTR-H5-B09 Supports HSPA+, Wi-Fi, and Bluetooth MTR-H5-B10... -
Page 7: Descriptions Of Leds
PRODUCT OVERVIEW Descriptions of LEDs The top panel contains the following LEDs: ■ Power and Status LEDs—The Power LED indicates that DC power is present and the Status LED blinks when the unit is functioning normally. ■ Wi-Fi—Indicates if the device is serving as a Wi-Fi access point or acting as a Wi-Fi client. Not all models support Wi-Fi. -
Page 8: Side Panels
PRODUCT OVERVIEW Side Panels The device has connectors on either side. The figure that follows shows the side which has a SIM card holder, as well as Wi-Fi, Auxiliary, GPS and cellular antenna connectors. It also has a reset button. Depending on the model of your device, the following items may or may not appear: ■... -
Page 9: Ethernet Led Descriptions
PRODUCT OVERVIEW Ethernet LED Descriptions Two Ethernet LEDs are physically on the RJ-45 connector(s). The table that follows describes these LEDs. Ethernet Link Right LED on Ethernet connector. Blinks when there is transmit and receive activity on the Ethernet link. It shows a steady light when there is a valid Ethernet connection. - Page 10 PRODUCT OVERVIEW Category Description Point-to-Point Messaging Mobile-Terminated SMS Mobile-Originated SMS Connectors Cellular Female SMA connectors for cellular WiFi Reverse polarity male SMA connector for Wi-Fi SIM Holder Mini-SIM, standard 1.8 V and 3 V SIM receptacle Female SMA connector Power Requirements Voltage 7 V to 32 V DC Physical Description...
-
Page 11: Dimensions
PRODUCT OVERVIEW Dimensions Label locations The images that follow show where you can find regulatory information for your device. ® MultiConnect rCell 100 MTR-H5 User Guide... - Page 12 PRODUCT OVERVIEW ® MultiConnect rCell 100 MTR-H5 User Guide...
-
Page 13: Power Draw
PRODUCT OVERVIEW Power Draw GPRS Typical Maximum Peak TX Peak Rst (Inrush Current) 7 volts 0.305A, 2.14W 0.495A, 3.47W 1.74A 2.30A 9 volts 0.230A, 2.12W 0.332, 3.05W 1.28A 4.12A 20 volts 0.111A, 2.22W 0.164A, 3.28W .520A 3.03A 32 volts 0.075A, 2.40W 0.112A, 3.58W 0.337A 2.50A... -
Page 14: Safety Warnings
SAFETY WARNINGS Safety Warnings Lithium Battery ■ A lithium battery located within the product provides backup power for the timekeeping. This battery has an estimated life expectancy of ten years. ■ When this battery starts to weaken, the date and time may be incorrect. ■... -
Page 15: Atex (Europe Only)
SAFETY WARNINGS AVERTISSEMENT – Risque d'explosion – Le remplacement des composants peut annuler la compatibilité du produit avec les zones de Classe I Division 2. AVERTISSEMENT – Risque d'explosion – Ne débranchez pas l'équipement sauf s'il est hors tension ou si la zone est considérée comme non dangereuse. -
Page 16: Interference With Pacemakers And Other Medical Devices
SAFETY WARNINGS ■ Operating your device close to other electronic equipment may cause interference if the equipment is inadequately protected. Observe any warning signs and manufacturers’ recommendations. ■ Different industries and businesses restrict the use of cellular devices. Respect restrictions on the use of radio equipment in fuel depots, chemical plants, or where blasting operations are in process. - Page 17 SAFETY WARNINGS Compliance of the device with the FCC and IC rules regarding RF Exposure was established and is given with the maximum antenna gain as specified above for a minimum distance of 20 cm between the devices radiating structures (the antenna) and the body of users. Qualification for distances closer than 20 cm (portable operation) would require re-certification.
-
Page 18: Cellular Information
CELLULAR INFORMATION Cellular Information Antenna System Cellular Devices The cellular/wireless performance depends on the implementation and antenna design. The integration of the antenna system into the product is a critical part of the design process; therefore, it is essential to consider it early so the performance is not compromised. -
Page 19: Gps Antennas
CELLULAR INFORMATION GPS Antennas GPS Antenna Specifications Category Description Frequency Range 1575.24 MHz Impedance 50 Ohms VSWR 2.0:1 max Gain 10-30 dBi LNA Current Consumption 40 mA max Noise Figure < 2dB Polarization RHCP Input voltage 3.0V ± 0.2V Bluetooth and Wi-Fi Antennas Manufacturer: Taoglas Antenna Solutions Manufacturer's Model Number:... -
Page 20: Installing And Using The Router
INSTALLING AND USING THE ROUTER Installing and Using the Router Installing the Router To use the router’s cellular features, connect a suitable antenna to the antenna connector. If your device is capable of supporting antenna diversity, see the section about diversity. Some routers support Wi-Fi. -
Page 21: Mounting The Device
The dimensions illustration in this guide shows the mounting rod, as well as the dimensions for placement of the screws. Activating the Account for Wireless Devices For information on activating your cellular modem: Go to http://www.multitech.com/support. Select your device. Scroll to Activation and click Download. Note:... -
Page 22: Setting Up Wi-Fi
INSTALLING AND USING THE ROUTER Push the SIM card into the slot until it snaps into place. To remove the SIM, push the edge of the card in. When released, the card pops out of the device. Setting up Wi-Fi Some models have Wi-Fi capability. -
Page 23: Notice For Devices That Use Aeris Radios
INSTALLING AND USING THE ROUTER The following procedure shows the default behavior of the RESET button. You can program a different behavior if needed. You need: ■ A pin, paperclip, or similar thin object that can fit into the reset hole To reset the device to factory default settings: Find the hole in the front panel labeled RESET. -
Page 24: Regulatory Information
REGULATORY INFORMATION Regulatory Information 47 CFR Part 15 Regulation Class B Devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 25: Fcc And Ic Antenna Requirements Toward License Exempt Radio Transmitters (Bluetooth/Wlan)
REGULATORY INFORMATION FCC and IC Antenna Requirements Toward License Exempt Radio Transmitters (Bluetooth/WLAN) The license-exempt Bluetooth/WLAN radio transmitter contained in this equipment may only be operated with an antenna of a type, a maximum gain and the required antenna impedance as approved and specified below. To reduce potential radio interference to other users, choose the antenna type and it's gain so that the equivalent isotropically radiated power (EIRP) is not more than that necessary for successful communication. -
Page 26: Restriction Of The Use Of Hazardous Substances (Rohs)
2011/65/EU of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS). These MultiTech products do not contain the following banned chemicals ■ Lead, [Pb] < 1000 PPM ■... -
Page 27: Reach Statement
REGULATORY INFORMATION REACH Statement Registration of Substances After careful review of the legislation and specifically the definition of an “article” as defined in EC Regulation 1907/2006, Title II, Chapter 1, Article 7.1(a)(b), it is our current view Multi-Tech Systems, Inc. products would be considered as “articles”. -
Page 28: Information On Hs/Ts Substances According To Chinese Standards
REGULATORY INFORMATION Information on HS/TS Substances According to Chinese Standards In accordance with China's Administrative Measures on the Control of Pollution Caused by Electronic Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-Tech Systems Inc. -
Page 29: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)
REGULATORY INFORMATION Information on HS/TS Substances According to Chinese Standards (in Chinese) 依 依 照 照 中 中 国 国 标 标 准 准 的 的 有 有 毒 毒 有 有 害 害 物 物 质 质 信 信 息 息 根据中华人民共和国信息产业部...
