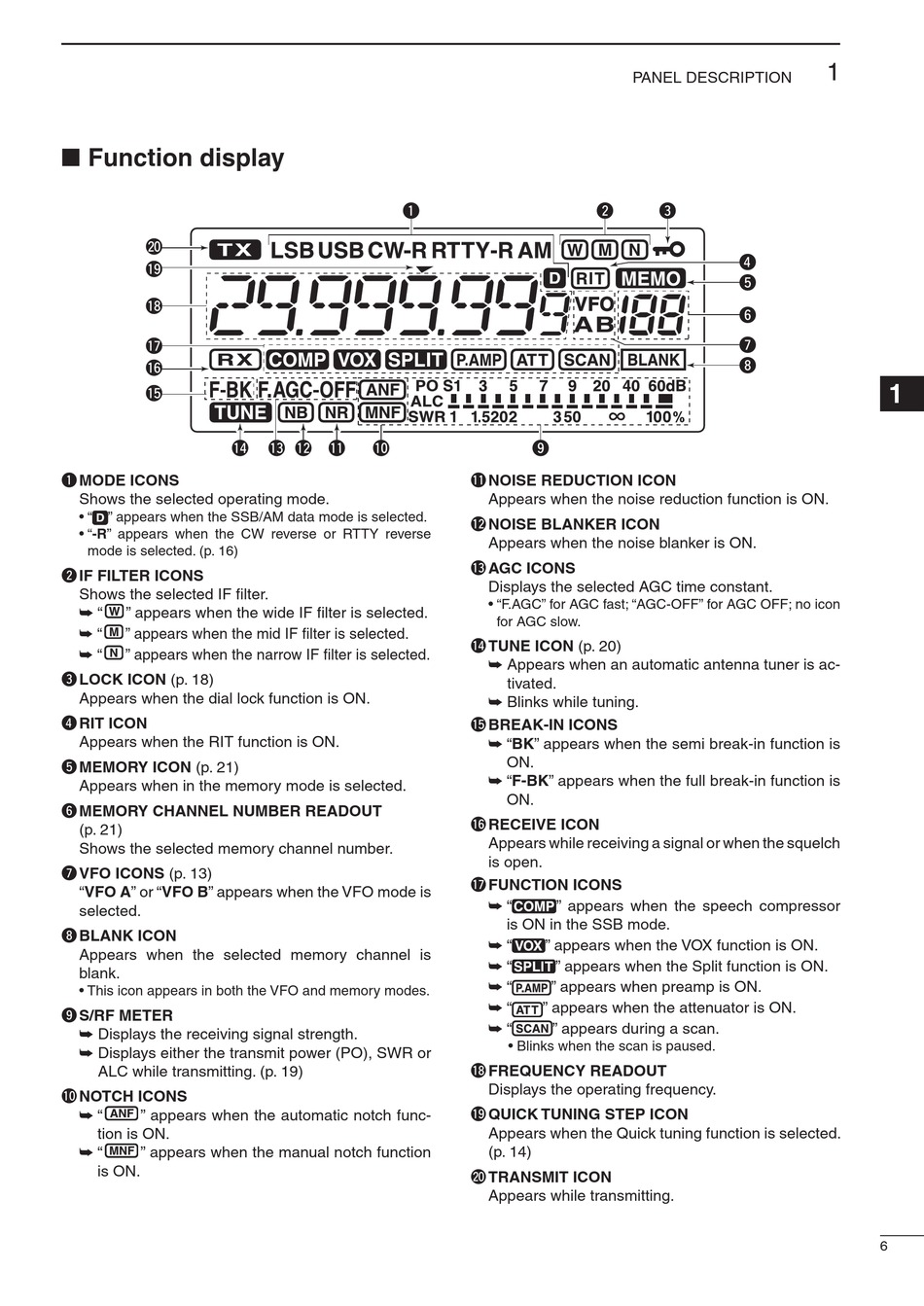

Function display

@0
!9
!8
!7
!6
!5
!4
q MODE ICONS
Shows the selected operating mode.
• "
" appears when the SSB/AM data mode is selected.
• "-R" appears when the CW reverse or RTTY reverse
mode is selected. (p. 16)
w IF FILTER ICONS
Shows the selected IF filter.
➥ "
" appears when the wide IF filter is selected.
➥  " " appears when the mid IF filter is selected.
➥  " " appears when the narrow IF filter is selected.
e LOCK ICON (p. 18)
Appears when the dial lock function is ON.
r RIT ICON
Appears when the RIT function is ON.
t MEMORY ICON (p. 21)
Appears when in the memory mode is selected.
y MEMORY CHANNEL NUMBER READOUT
(p. 21)
Shows the selected memory channel number.
u VFO ICONS (p. 13)
"VFO A" or "VFO B" appears when the VFO mode is
selected.
i BLANK ICON
Appears when the selected memory channel is
blank.
• This icon appears in both the VFO and memory modes.
o S/RF METER
➥ Displays the receiving signal strength.
➥ Displays either the transmit power (PO), SWR or
ALC while transmitting. (p. 19)
!0 NOTCH ICONS
➥ "
" appears when the automatic notch func-
tion is ON.
➥ "
" appears when the manual notch function
is ON.
q
!3 !2 !1 !0
PANEL DESCRIPTION
w
o
!1 NOISE REDUCTION ICON
Appears when the noise reduction function is ON.
!2 NOISE BLANKER ICON
Appears when the noise blanker is ON.
!3 AGC ICONS
Displays the selected AGC time constant.
• "F.AGC" for AGC fast; "AGC-OFF" for AGC OFF; no icon
for AGC slow.
!4 TUNE ICON (p. 20)
➥ Appears when an automatic antenna tuner is ac-
tivated.
➥ Blinks while tuning.
!5 BREAK-IN ICONS
➥ "BK" appears when the semi break-in function is
ON.
➥ "F-BK" appears when the full break-in function is
ON.
!6 RECEIVE ICON
Appears while receiving a signal or when the squelch
is open.
!7 FUNCTION ICONS
➥ "
" appears when the speech compressor
is ON in the SSB mode.
➥ "
" appears when the VOX function is ON.
➥ "
" appears when the Split function is ON.
➥ "
" appears when preamp is ON.
➥ "
" appears when the attenuator is ON.
➥ "
" appears during a scan.
• Blinks when the scan is paused.
!8 FREQUENCY READOUT
Displays the operating frequency.
!9 QUICK TUNING STEP ICON
Appears when the Quick tuning function is selected.
(p. 14)
@0 TRANSMIT ICON
Appears while transmitting.
