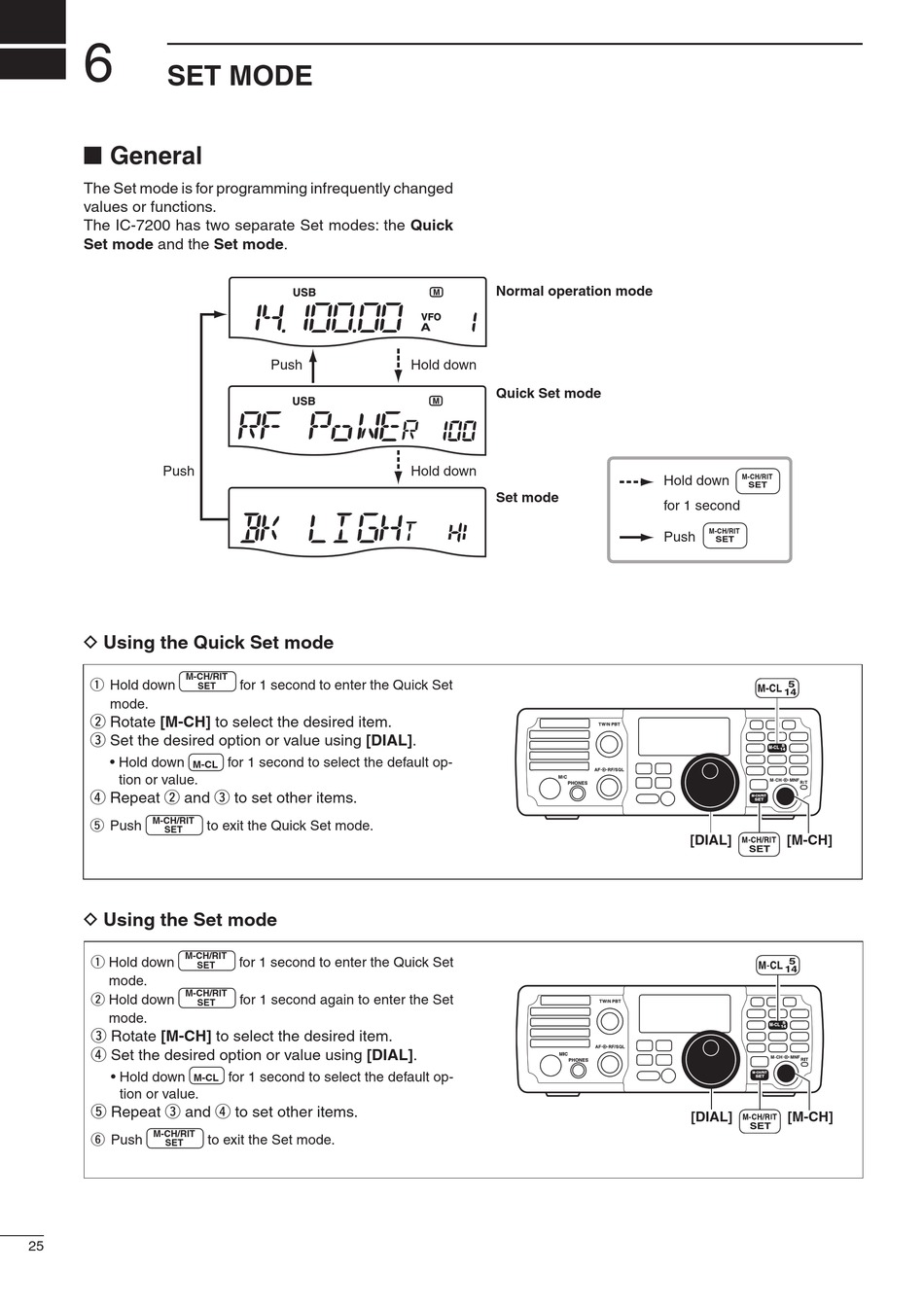

6
SET MODE
■
General
The Set mode is for programming infrequently changed
values or functions.
The IC-7200 has two separate Set modes: the Quick
Set mode and the Set mode.
Push
D
Using the Quick Set mode
M-CH/RIT
q Hold down
SET
mode.
w Rotate [M-CH] to select the desired item.
e Set the desired option or value using [DIAL].
• Hold down
M-CL
tion or value.
r Repeat w and e to set other items.
M-CH/RIT
t Push
SET
D
Using the Set mode
M-CH/RIT
q Hold down
SET
mode.
M-CH/RIT
w Hold down
SET
mode.
e Rotate [M-CH] to select the desired item.
r Set the desired option or value using [DIAL].
• Hold down
M-CL
tion or value.
t Repeat e and r to set other items.
M-CH/RIT
y Push
SET
25
Push
for 1 second to enter the Quick Set
for 1 second to select the default op-
to exit the Quick Set mode.
for 1 second to enter the Quick Set
for 1 second again to enter the Set
for 1 second to select the default op-
to exit the Set mode.
Normal operation mode
Hold down
Quick Set mode
Hold down
Set mode
M-CH/RIT
Hold down
SET
for 1 second
M-CH/RIT
Push
SET
