Icom IC-7200 Instruction Manual page 8

1

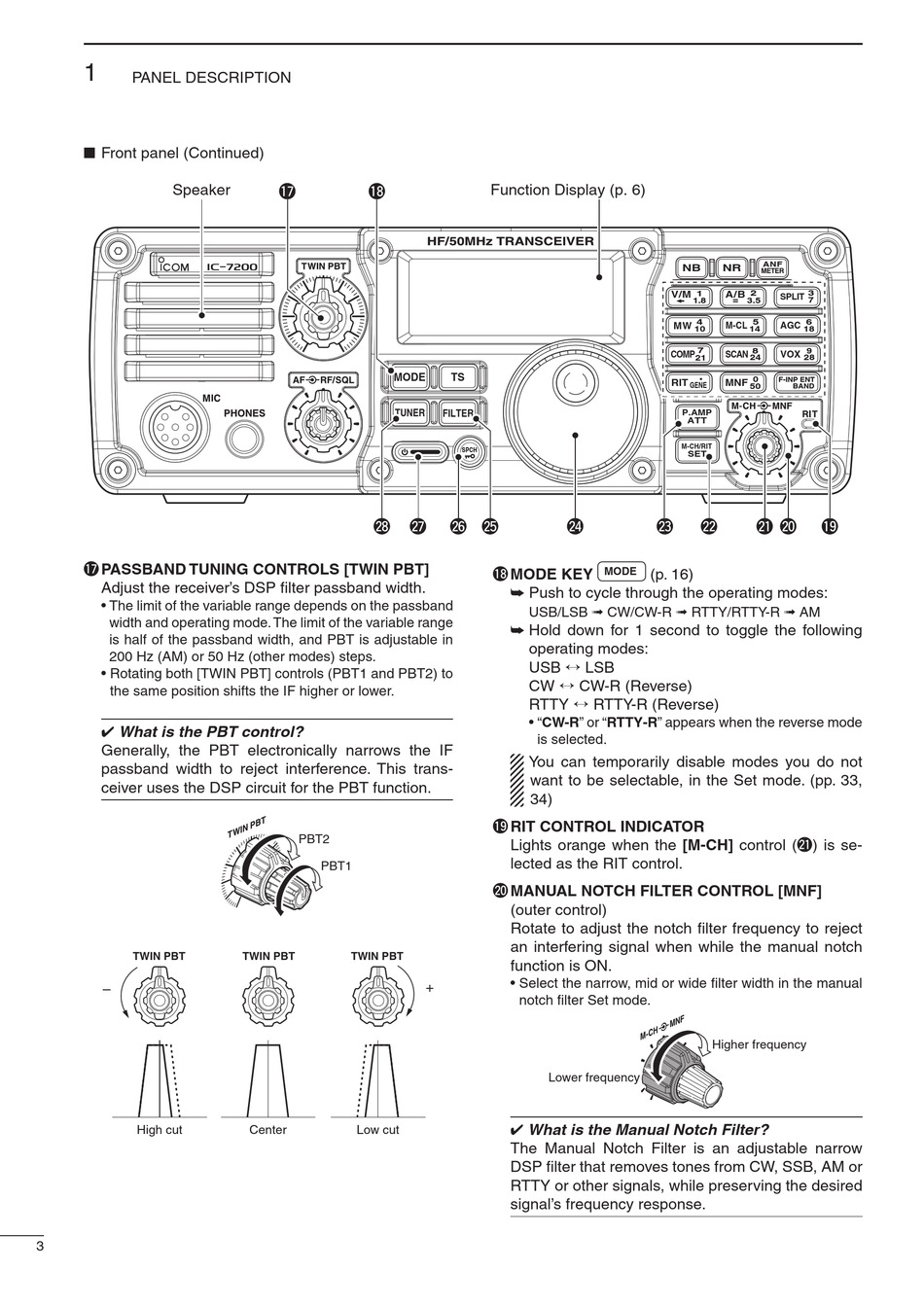

PANEL DESCRIPTION
■
Front panel (Continued)
Speaker
i7200
!7 PASSBAND TUNING CONTROLS [TWIN PBT]
Adjust the receiver's DSP filter passband width.
• The limit of the variable range depends on the passband
width and operating mode. The limit of the variable range
is half of the passband width, and PBT is adjustable in
200 Hz (AM) or 50 Hz (other modes) steps.
• Rotating both [TWIN PBT] controls (PBT1 and PBT2) to
the same position shifts the IF higher or lower.
4 What is the PBT control?
Generally, the PBT electronically narrows the IF
passband width to reject interference. This trans-
ceiver uses the DSP circuit for the PBT function.
TWIN PBT
–
High cut
3
!7 !8
MODE
TUNER
@8 @7
PBT2
PBT1
TWIN PBT TWIN PBT
Center Low cut
Function Display (p. 6)
TS
FILTER
SPCH
@6 @5 @4
!8 MODE KEY
➥ Push to cycle through the operating modes:
USB/LSB ➟ CW/CW-R ➟ RTTY/RTTY-R ➟ AM
➥ Hold down for 1 second to toggle the following
operating modes:
USB ↔ LSB
CW ↔ CW-R (Reverse)
RTTY ↔ RTTY-R (Reverse)
• "CW-R" or "RTTY-R" appears when the reverse mode
is selected.
You can temporarily disable modes you do not
want to be selectable, in the Set mode. (pp. 33,
34)
!9 RIT CONTROL INDICATOR
Lights orange when the [M-CH] control (@1 ) is se-
lected as the RIT control.
@0 MANUAL NOTCH FILTER CONTROL [MNF]
(outer control)
Rotate to adjust the notch filter frequency to reject
an interfering signal when while the manual notch
function is ON.
• Select the narrow, mid or wide filter width in the manual
+
notch filter Set mode.
Lower frequency
4 What is the Manual Notch Filter?
The Manual Notch Filter is an adjustable narrow
DSP filter that removes tones from CW, SSB, AM or
RTTY or other signals, while preserving the desired
signal's frequency response.
ANF
NB NR
METER
1 2
V/M A/B
1.8 = 3.5
4 5
MW M-CL
10 14
7 8
COMP SCAN
21 24
.
0
F-INP
MNF
RIT
GENE
50
P.AMP
ATT
M-CH/RIT
SET
@3 @2 @1 @0
MODE
(p. 16)
Higher frequency
3
SPLIT
7
6
AGC
18
9
VOX
28
ENT
BAND
!9
